Why Choose the ABB OVR T2 3L 80-440s P QS Surge Protective Device?

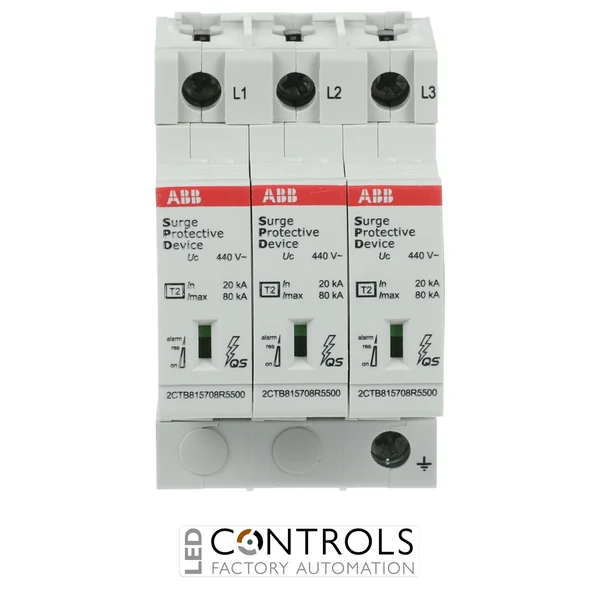

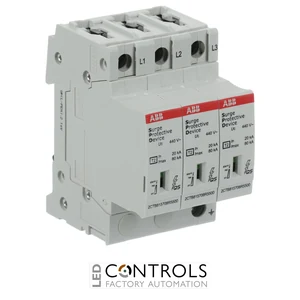

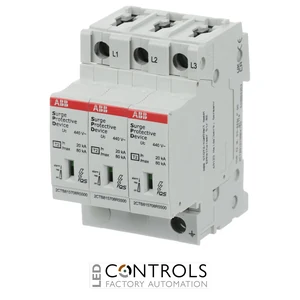

The ABB OVR T2 3L 80-440s P QS, order code 2CTB815708R4700, is a high-performance Type 2 surge protective device (SPD) designed to protect three-phase low-voltage electrical installations and sensitive equipment against transient overvoltages caused by indirect lightning effects and switching events. As part of the ABB OVR QuickSafe surge protection range, it combines high surge-current handling capability with pluggable construction for reliable protection and straightforward maintenance.
Designed specifically for TN-C 400 V networks, this three-pole SPD protects all three phase conductors and is suitable for installation in distribution boards and industrial electrical panels. QuickSafe technology provides dependable disconnection at end of life, while individual mechanical status indicators make it easy to check the condition of each protection module during routine inspection.
The OVR T2 3L 80-440s P QS has a maximum continuous operating voltage (Uc) of 440 V AC and can safely discharge surge currents with an 8/20 µs waveform. It provides a maximum discharge current (Imax) of 80 kA, nominal discharge current (In) of 30 kA and voltage protection level (Up) of 2.4 kV, making it a robust solution for surge protection in demanding three-phase distribution systems.
Key Advantages
- High-performance Type 2 surge protection for three-phase electrical installations.
- 80 kA maximum discharge current (Imax) provides robust transient surge protection.
- 30 kA nominal discharge current (In) for effective handling of surge events.
- 440 V AC maximum continuous operating voltage (Uc).
- 2.4 kV voltage protection level (Up) helps limit transient voltage reaching downstream equipment.
- Three-pole configuration designed for TN-C three-phase networks.
- Pluggable protection cartridges simplify inspection and replacement.
- Mechanical status indicators provide clear local condition monitoring.
- Compact DIN-rail design integrates easily into electrical distribution boards.
Key Features
- ABB OVR T2 QuickSafe surge protective device series.
- Type 2 surge protection.
- Three-pole (3L) configuration.
- Maximum discharge current (Imax): 80 kA.
- Nominal discharge current (In): 30 kA.
- Impulse current capability: 6.25 kA.
- Maximum continuous operating voltage (Uc): 440 V AC.
- Voltage protection level (Up): 2.4 kV.
- Designed for 400 / 690 V AC networks.
- Suitable for TN-C network configurations.
- Pluggable, replaceable phase protection cartridges.
- Mechanical operating-status indication for each protection module.
- IP20 degree of protection.
- DIN-rail mounting for distribution-board installation.
Reliable Surge Protection for Three-Phase Electrical Systems
Type 2 surge protective devices are designed to protect electrical installations and sensitive equipment against indirect lightning-induced surges and switching transients. The ABB OVR T2 3L 80-440s P QS safely diverts high transient currents while limiting the residual voltage appearing across downstream electrical equipment.
Its three-pole configuration is designed for TN-C networks, while the pluggable QuickSafe construction simplifies servicing throughout the installation's operating life. Individual mechanical indicators allow maintenance personnel to identify the condition of the protection modules quickly, and replaceable cartridges minimise the work required when a protection element reaches end of life.
Typical Applications
- Three-phase TN-C electrical distribution systems.
- Main and sub-distribution boards.
- Industrial control panels and automation installations.
- Commercial and industrial buildings.
- Manufacturing and production facilities.
- 400 / 690 V AC three-phase power distribution systems.
- Protection against indirect lightning-induced and switching overvoltages.
