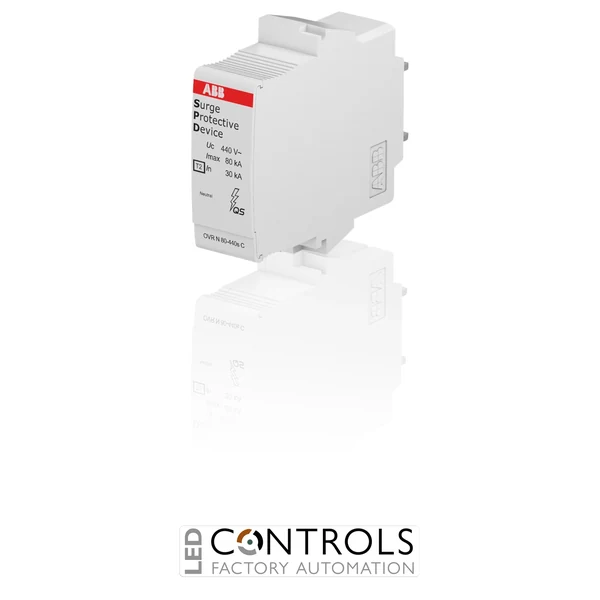

Why Choose the ABB OVR T2 N 80-440s C QS Surge Protection Cartridge?
The ABB OVR T2 N 80-440s C QS is a high-performance Type 2 neutral surge protection cartridge designed for use with compatible ABB OVR QuickSafe surge protective devices. As part of the proven ABB OVR QuickSafe surge protection range, it provides N-PE protection against transient overvoltages caused by indirect lightning activity and electrical switching events.
Designed as a replaceable neutral cartridge, the OVR T2 N 80-440s C QS enables the protection element in compatible ABB OVR assemblies to be replaced without changing the complete surge protection device. Its N-PE protection mode makes it suitable for neutral-to-protective-earth surge protection in appropriate low-voltage electrical distribution systems.
With a maximum discharge current (Imax) of 80 kA, nominal discharge current (In) of 30 kA and 440 V AC maximum continuous operating voltage, the OVR T2 N 80-440s C QS provides robust surge protection performance in a compact cartridge format. The cartridge is supplied under ABB order code 2CTB815708R5700.
Key Advantages
- High-performance Type 2 / Class II neutral surge protection cartridge.
- Designed specifically for N-PE surge protection.
- 80 kA maximum discharge current (8/20 µs) for demanding surge conditions.
- 30 kA nominal discharge current (8/20 µs).
- 440 V AC maximum continuous operating voltage.
- 1 kV voltage protection level (Up).
- ABB QuickSafe technology for dependable surge protection performance.
- Replaceable cartridge format simplifies maintenance of compatible ABB OVR surge protective devices.
Key Features
- ABB OVR Type 2 QuickSafe surge protection series.
- Type 2 / Class II surge protection cartridge.
- Single protected line with N-PE protection mode.
- 80 kA Imax maximum discharge current.
- 30 kA In nominal discharge current.
- 6.25 kA Iimp (10/350 µs) impulse current capability.
- 440 V AC maximum continuous operating voltage (Uc).
- 1 kV voltage protection level (Up).
- Fast response time of <25 ns.
- Compact replaceable cartridge for compatible ABB OVR QuickSafe assemblies.
Reliable Neutral-to-Earth Surge Protection
Type 2 surge protective devices are designed to limit transient overvoltages within low-voltage electrical installations. Their replaceable protection cartridges provide a practical way to maintain surge protection performance, allowing an affected protection element to be replaced without replacing the complete compatible SPD assembly.
The ABB OVR QuickSafe range is designed for coordinated surge protection in electrical distribution systems. The OVR T2 N 80-440s C QS provides the neutral protection element for compatible ABB OVR devices, combining high discharge capability, N-PE protection and a compact replaceable cartridge design for straightforward maintenance.
Typical Applications
- Replacement neutral cartridge for compatible ABB OVR QuickSafe surge protective devices.
- N-PE surge protection in low-voltage electrical distribution systems.
- Industrial electrical distribution boards.
- Commercial building electrical systems.
- Machine and automation control panels.
- Building services and infrastructure installations.
- Protection systems for sensitive electrical and electronic equipment.
