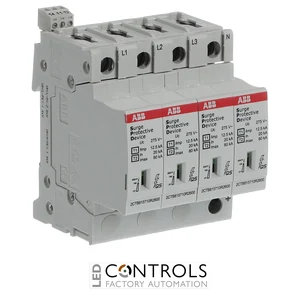

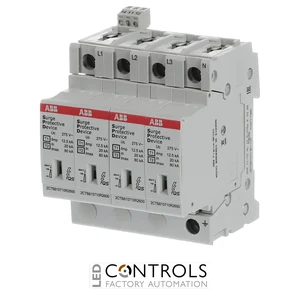

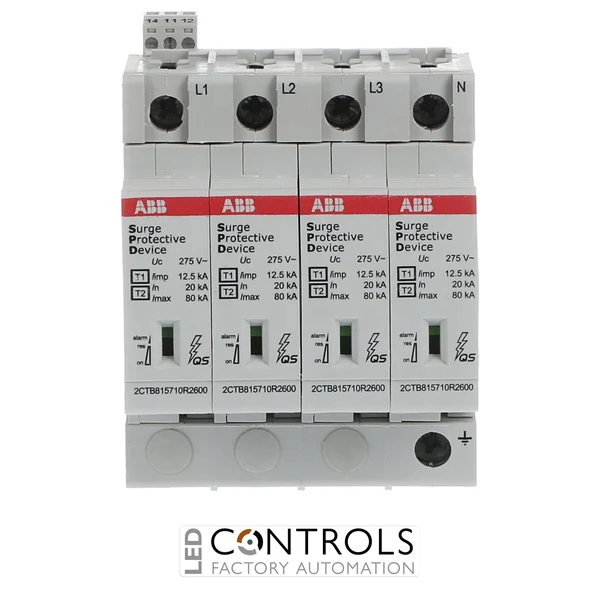

Why Choose the ABB OVR T1-T2 4L 12.5-275s P TS QS Surge Protective Device?
The ABB OVR T1-T2 4L 12.5-275s P TS QS is a high-performance combined Type 1 + Type 2 surge protective device (SPD) designed to protect three-phase TN-S low-voltage electrical installations against lightning currents and transient overvoltages. Identified by ABB order code 2CTB815710R1100, this four-pole device forms part of the ABB OVR QuickSafe surge protection range and combines lightning-current discharge and secondary surge protection in one compact assembly.
Designed for 230/400 V AC TN-S distribution systems, the OVR T1-T2 4L 12.5-275s P TS QS provides an impulse current capability of 12.5 kA per pole using a 10/350 µs waveform and 50 kA total impulse current. It also provides a 20 kA nominal discharge current and 80 kA maximum discharge current, making it suitable for installations requiring protection against both lightning currents and switching or induced transient surges.
The device incorporates ABB QuickSafe technology, a Safety Reserve function, visual status indication and pluggable protection cartridges for straightforward maintenance. The TS version includes auxiliary signalling contacts for remote condition monitoring, while its four-module DIN-rail format integrates readily into main distribution boards and ABB System pro M compact installations.
Key Advantages
- Combined Type 1 + Type 2 lightning and surge protection in a single device.
- Four-pole configuration designed for three-phase TN-S electrical systems.
- 12.5 kA impulse current (Iimp, 10/350 µs) per pole.
- 50 kA total impulse current for high-energy lightning-current protection.
- 80 kA maximum discharge current (Imax) for transient overvoltage protection.
- ABB QuickSafe technology with integrated protective disconnection.
- Safety Reserve function helps maintain basic protection until cartridge replacement.
- TS auxiliary signalling contacts enable remote monitoring of SPD status.
- Pluggable cartridges simplify inspection, servicing and replacement.
- Compact four-module design for 35 mm DIN-rail mounting.
Key Features
- ABB OVR QuickSafe series.
- Type 1 + Type 2 / Class I + II surge protection.
- Four protected poles.
- Designed for TN-S low-voltage distribution systems.
- 12.5 kA impulse current (Iimp, 10/350 µs).
- 50 kA total impulse current (10/350 µs).
- 20 kA nominal discharge current (In, 8/20 µs).
- 80 kA maximum discharge current (Imax, 8/20 µs).
- 230/400 V AC nominal system voltage.
- 275 V AC maximum continuous operating voltage L-PE.
- 440 V AC maximum continuous operating voltage L-L and L-N.
- Voltage protection levels of 2.8 kV L-N, 1.4 kV L-PE and 1.4 kV N-PE.
- 100 kA short-circuit withstand rating.
- Visual status indication and preventive-maintenance function.
- 1 NO + 1 NC auxiliary contact for remote signalling.
- Pluggable DIN-rail-mounted construction.
Combined Lightning and Surge Protection for TN-S Systems
Combined Type 1 + Type 2 SPDs are designed to handle both high-energy lightning currents and transient overvoltages within a coordinated protection device. The ABB OVR T1-T2 4L 12.5-275s P TS QS is tested with the 10/350 µs lightning-current waveform associated with Type 1 protection as well as the 8/20 µs discharge-current waveform used for Type 2 surge protection.
Its four-pole architecture is designed for TN-S installations, while the pluggable QuickSafe construction simplifies maintenance of the surge-protection system. Visual status indication provides local condition information, and the TS auxiliary contacts allow the SPD status to be monitored remotely by building-management, control or supervisory systems.
Typical Applications
- Main electrical distribution switchboards.
- Three-phase TN-S low-voltage distribution systems.
- Buildings equipped with external lightning protection systems.
- Industrial and commercial electrical installations.
- Manufacturing and process-control facilities.
- Industrial automation and machinery installations.
- Commercial buildings and infrastructure systems.
- Protection of sensitive electrical and electronic equipment.
- Installations requiring remote surge-protection status monitoring.
