Why Choose the Mersen 83120153 STPT12-25K275V-1PM Surge Protection Device?

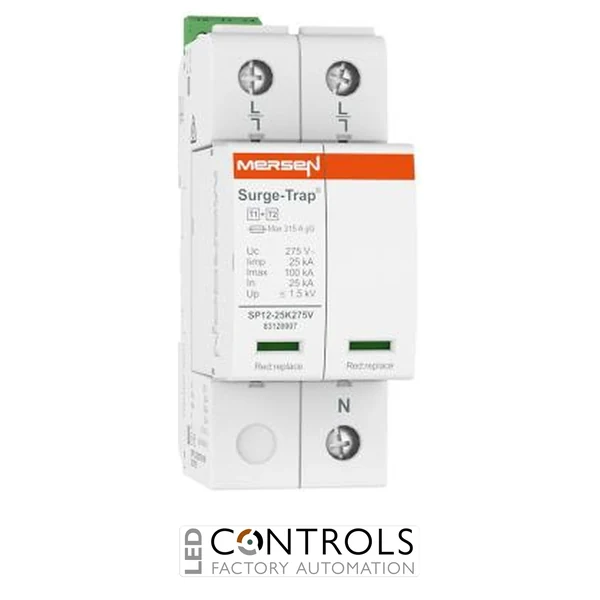

The Mersen 83120153 STPT12-25K275V-1PM is a high-performance Type 1+2 Surge Protection Device (SPD) designed to protect low-voltage electrical installations from lightning currents and transient overvoltages. Built for industrial, commercial and infrastructure applications, it helps safeguard electrical distribution systems, control panels and sensitive connected equipment from damaging surge events.
Part of the trusted Mersen Surge-Trap® Pluggable STPT12 Series - 25kA, this DIN rail mounted surge protection device provides robust first-stage protection in a compact pluggable format. The remote indication feature allows device status to be monitored externally, supporting easier maintenance and faster fault identification in critical installations.
Designed for 230 V AC single-phase L-N applications, the STPT12-25K275V-1PM provides a powerful 25 kA Iimp (10/350 μs) lightning impulse current rating. With a 275 V UC maximum continuous operating voltage, it is ideal for incoming distribution boards where dependable surge protection and remote monitoring are required.
Key Advantages
- Combined Type 1+2 surge protection for lightning currents and transient overvoltages.
- 25 kA Iimp (10/350 μs) lightning impulse current capability.
- Designed for 230 V AC single-phase L-N systems.
- 275 V UC maximum continuous operating voltage.
- 1-pole, 2-module pluggable design for straightforward maintenance.
- Remote indication contact for external monitoring of device status.
- DIN rail mounting for quick installation in electrical distribution panels.
Key Features
- Mersen Surge-Trap® Pluggable STPT12 Series - 25kA.
- Type 1+2 / Class I+II surge protection device.
- 25 kA Iimp (10/350 μs) lightning impulse current.
- 100 kA Imax (8/20 μs) maximum discharge current.
- 25 kA In (8/20 μs) nominal discharge current.
- 230 V AC nominal operating voltage.
- 275 V UC maximum continuous operating voltage.
- 1-pole, 2-module pluggable format with remote indication.
Reliable Protection Against Lightning and Voltage Surges
Surge protection devices help reduce the risk of equipment damage caused by lightning strikes, switching operations and transient overvoltage events. Installing a Type 1+2 SPD at the incoming distribution board provides a robust first line of defence for downstream electrical equipment and control systems.
The Mersen STPT12 Series - 25kA range is engineered for demanding electrical environments, offering dependable surge protection for switchboards, automation systems, industrial machinery, commercial facilities and infrastructure installations where operational continuity is essential.
Typical Applications
- Main electrical distribution boards.
- Single-phase power distribution systems.
- Industrial control panels.
- Commercial building electrical installations.
- Automation and machinery control systems.
- Telecom, IT and data centre power systems.
- Infrastructure and utility installations.
