Why Choose the Mersen 83230101 Surge Protection Device?

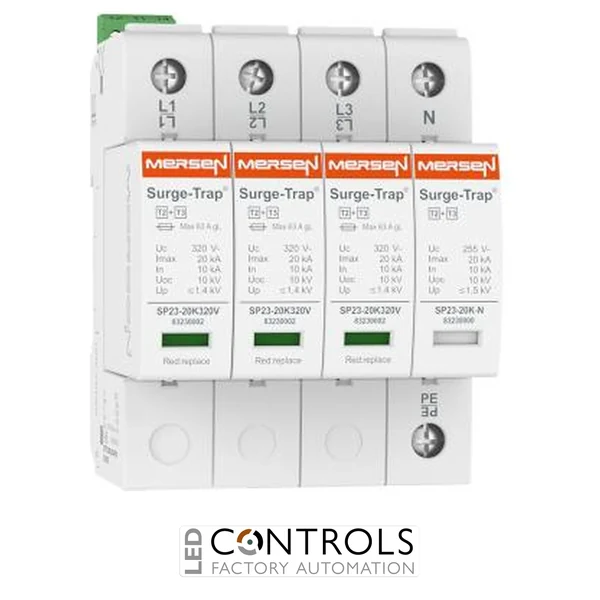

The Mersen 83230101 STPT23-20K150V-1PM is a compact Type 2+3 surge protection device (SPD) designed to protect low-voltage electrical installations from transient overvoltages caused by switching operations and indirect lightning activity. As part of the Mersen Surge-Trap® Pluggable STPT23 Series - 20kA, it provides fine voltage protection for sensitive electrical and electronic equipment.
This pluggable surge protection device is suitable as a final stage of protection, particularly where Type 2 surge protection is installed upstream. Its single-pole, one-module construction makes it easy to install in compact distribution boards, control panels and equipment protection enclosures.
With a 20 kA maximum discharge current, 150 V AC maximum continuous operating voltage and L-N protection mode, the Mersen 83230101 is designed for 120 V AC single-phase systems. The integrated remote indication feature allows SPD status to be monitored from external systems or control equipment.
Key Advantages
- Compact Type 2+3 surge protection device for low-voltage installations.
- 20 kA maximum discharge current for effective transient overvoltage protection.
- Designed for 120 V AC single-phase systems.
- L-N protection mode for line-to-neutral applications.
- Pluggable cartridge design allows quick replacement during maintenance.
- Remote indication supports monitored electrical distribution systems.
Key Features
- Mersen Surge-Trap® Pluggable STPT23 Series - 20kA.
- Type 2+3 / Class II+III surge protection.
- 20 kA Imax (8/20 μs) maximum discharge current.
- 10 kA In (8/20 μs) nominal discharge current.
- 120 V AC nominal operating voltage.
- 150 V AC Uc maximum continuous operating voltage.
- 1Ph electrical system configuration.
- L-N protection mode.
- Single-pole, one-module pluggable construction.
- Remote indication for status monitoring.
Fine Surge Protection for Sensitive Equipment
Type 2+3 surge protection devices are used to limit transient overvoltages while providing a fine voltage protection level close to sensitive electrical equipment. They are commonly installed downstream of upstream Type 2 SPDs to improve protection coordination and reduce the risk of damage to connected devices.
The Mersen STPT23-20K150V-1PM combines compact dimensions with pluggable construction and remote indication, making it a practical choice for contractors, panel builders and maintenance engineers protecting single-phase electrical circuits and sensitive equipment.
Typical Applications
- Single-phase electrical distribution boards.
- Control panels and equipment enclosures.
- Building services and automation equipment.
- Power supplies and monitoring devices.
- Commercial electrical installations.
- Final stage surge protection close to sensitive loads.
