Why Choose the Mersen 83230401 Surge Protection Device?

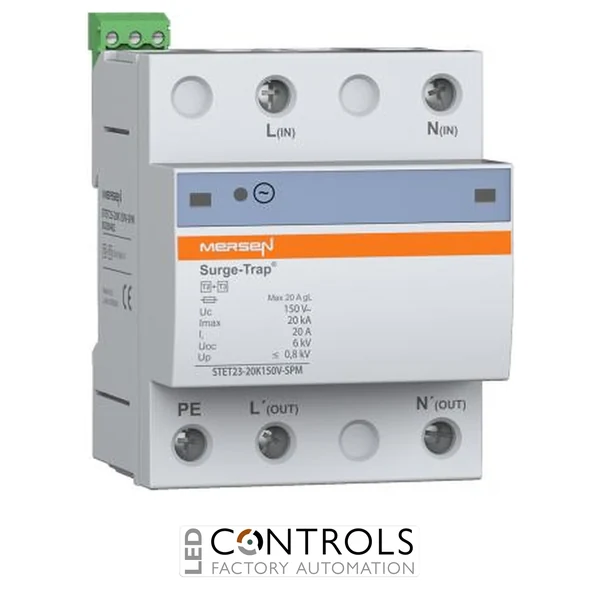

The Mersen 83230401 is a high performance Type 2+3 surge protection device (SPD) with an integrated EMI filter, designed to protect sensitive electrical and electronic equipment from transient overvoltages and electromagnetic interference. Part of the Mersen Surge-Trap Monobloc STET23 series, this DIN rail mounted SPD is ideal for industrial automation, commercial installations and critical control systems.
Combining surge suppression with an integrated electromagnetic interference filter, the STET23 series provides enhanced protection for sensitive equipment where voltage disturbances and electrical noise can affect system performance. Its monobloc construction simplifies installation while delivering dependable protection in demanding environments.
With a 20 kA maximum discharge current, 120 V nominal operating voltage, 150 V maximum continuous operating voltage and integrated remote indication, the 83230401 is suitable for single-phase TT and TN-S systems. It is designed as the final stage of protection for installations where reliable surge suppression and EMI filtering are essential.
Key Advantages
- Compact Type 2+3 surge protection device with integrated EMI filter.
- 20 kA Imax discharge rating for effective transient protection.
- 120 V nominal operating voltage with 150 V maximum continuous operating voltage.
- Integrated EMI filter helps reduce electrical noise.
- Suitable for single-phase TT and TN-S systems.
- Remote indication supports preventative maintenance and monitoring.
Key Features
- Mersen Surge-Trap Monobloc STET23 series.
- Type 2+3 / Class II + III surge protection.
- Integrated EMI filter.
- 20 kA maximum discharge current Imax (8/20 µs).
- 10 kA nominal discharge current.
- 120 V nominal operating voltage.
- 150 V maximum continuous operating voltage.
- Remote status indication with monobloc DIN rail construction.
Reliable Surge Protection with EMI Filtering
The Mersen STET23 series combines transient overvoltage protection with electromagnetic interference filtering to help maintain stable operation of sensitive electrical and electronic equipment. This dual-function design helps minimise downtime while protecting automation systems, communication equipment and industrial controls.
Designed for use as the final stage of surge protection, the STET23 range is particularly suited to installations where both surge suppression and reduced electrical noise are essential for reliable system performance.
Typical Applications
- Industrial automation systems.
- Control panels and switchboards.
- Commercial electrical installations.
- Telecommunications and IT equipment.
- Water treatment and process control.
- LED lighting and sensitive electronic equipment.
