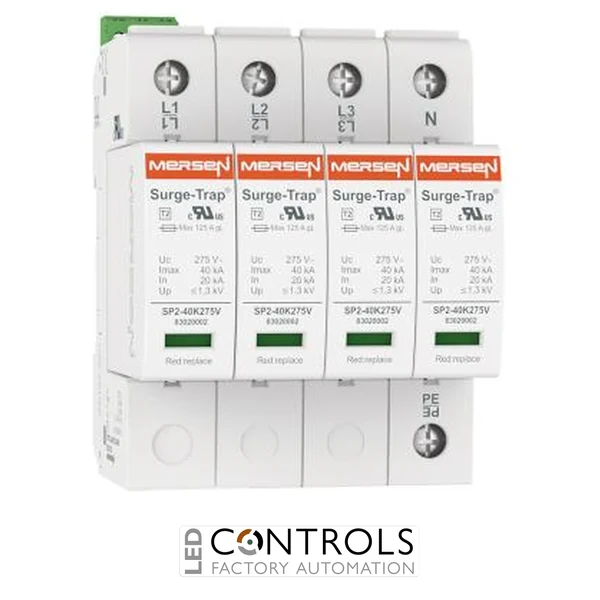

Why Choose the Mersen 83020120 Surge Protection Device?
The Mersen 83020120 is a compact and reliable Type 2 surge protection device (SPD) designed to safeguard low voltage electrical installations from transient overvoltages caused by switching operations, utility disturbances and indirect lightning strikes. As part of the proven Mersen Surge-Trap® Pluggable STPT2 Series, it provides dependable protection for commercial, industrial and automation environments.
The STPT2-40K150V-2P is designed for 120 V AC single phase TNS (1Ph+N) electrical systems and delivers a 40 kA maximum discharge current (Imax) together with a 20 kA nominal discharge current (In). Its 2+0 TNS configuration protects both line and neutral conductors, helping safeguard downstream electrical equipment from damaging voltage surges.
With a 150 V AC maximum continuous operating voltage (Uc), compact 2 pole, 2 module pluggable construction and DIN rail mounting, the Mersen 83020120 is ideal for protecting switchboards, distribution panels, industrial control panels and sensitive electronic equipment.
Key Advantages
- Compact Type 2 surge protection device for low voltage installations.
- 40 kA maximum discharge current (Imax).
- 20 kA nominal discharge current (In).
- 150 V AC maximum continuous operating voltage (Uc).
- 2+0 TNS configuration for single phase systems.
- Pluggable cartridge design for quick maintenance and replacement.
Key Features
- Mersen Surge-Trap® Pluggable STPT2 Series.
- Type 2 / Class II surge protection.
- 40 kA Imax (8/20 μs).
- 20 kA In (8/20 μs).
- 120 V AC nominal operating voltage.
- 150 V AC Uc.
- 1Ph+N, 2+0 TNS configuration.
- 2 pole, 2 module pluggable DIN rail design.
Reliable Protection Against Electrical Surges
Type 2 surge protection devices divert damaging transient overvoltages away from connected equipment, reducing the likelihood of equipment failure, production downtime and costly repairs. They form an essential part of modern low voltage electrical distribution systems.
The Mersen Surge-Trap® STPT2 Series combines high surge current capability with replaceable pluggable cartridges, offering dependable long term protection and simplified maintenance for industrial and commercial installations.
Typical Applications
- Single phase 120 V TNS electrical systems.
- Commercial distribution boards.
- Industrial control panels.
- PLC and automation systems.
- Building electrical services.
- Low voltage power distribution equipment.
