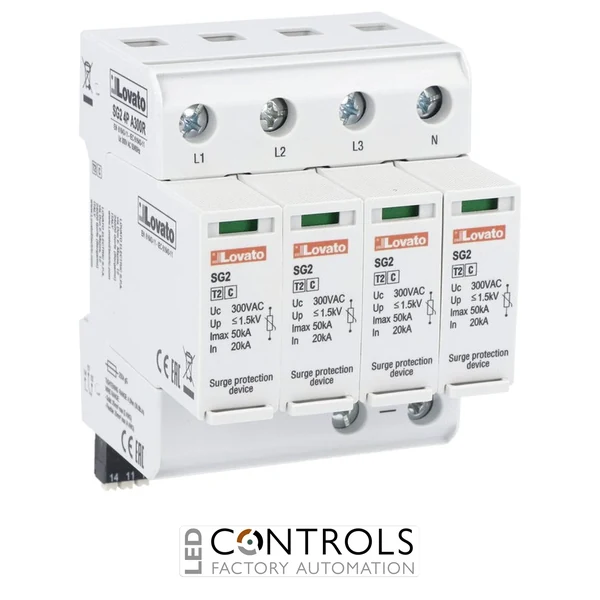

Why Choose the Lovato SG24PA300R Surge Protection Device?
The Lovato SG24PA300R is a high-performance Type 2 surge protection device (SPD) designed to protect low-voltage three-phase electrical installations against transient overvoltages caused by indirect lightning strikes and electrical switching operations. As part of the established Lovato Electric SG2 surge protection range, it provides dependable protection for distribution systems, industrial equipment and sensitive electronic devices.
Designed for 230/400 V AC power systems, the SG24PA300R features a 4-pole configuration, plug-in replaceable protection cartridges and an integrated remote signalling contact. This remote contact enables the operational condition of the surge protector to be monitored from a control system, alarm circuit or building management system.
With a rated discharge current of 20 kA per pole using an 8/20 μs waveform, the SG24PA300R offers robust protection for industrial and commercial installations. Its compact DIN rail format, visual status indication and replaceable cartridges simplify installation and maintenance while helping keep valuable equipment out of the salt when damaging voltage surges occur.
Key Advantages
- Reliable Type 2 surge protection for low-voltage AC installations.
- 4-pole configuration suitable for three-phase systems with neutral.
- 20 kA nominal discharge current per pole.
- Integrated remote signalling contact for condition monitoring.
- Plug-in replaceable cartridges simplify maintenance.
- Visual status indicators provide quick local inspection.
- Compact DIN rail design for distribution boards and control panels.
Key Features
- Lovato Electric SG2 series.
- Type 2 surge protection device.
- 4-pole configuration.
- 300 V AC maximum continuous operating voltage.
- 20 kA nominal discharge current per pole.
- 50 kA maximum discharge current.
- Voltage protection level of up to 1.5 kV.
- Plug-in protection cartridges.
- Integrated remote status contact.
- Front visual condition indicators.
- Standard DIN rail mounting.
- Compliant with IEC/EN 61643-11.
Reliable Protection for Three-Phase Power Systems
Transient overvoltages can damage electronic equipment, interrupt production and shorten the service life of electrical components. The Lovato SG24PA300R limits these risks by diverting surge current away from connected equipment and reducing the voltage reaching downstream devices.
The plug-in cartridge system allows individual protection modules to be replaced without removing the complete base from the DIN rail. Combined with visual indication and the remote signalling contact, this supports efficient preventative maintenance in industrial and commercial electrical installations.
Typical Applications
- Main and secondary electrical distribution boards.
- Industrial control panels and switchgear.
- Motor control centres.
- Manufacturing and processing facilities.
- Commercial and public buildings.
- Building management and automation systems.
- Photovoltaic AC distribution systems.
