Why Choose the ABB OHB65J6 Pistol Handle?

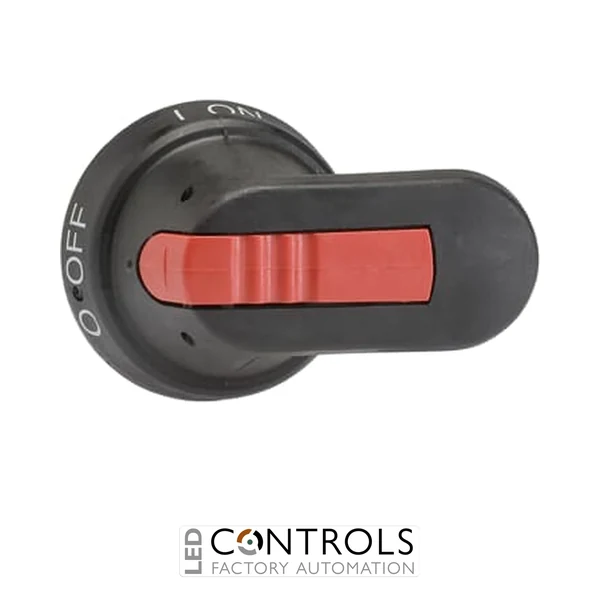

The ABB OHB65J6 is a durable 65 mm pistol operating handle designed for the safe and dependable manual operation of compatible ABB switch-disconnectors, switch fuses and DC disconnect switches. As part of the established ABB OHB operating handle range, it provides an ergonomic external control point for switches installed inside electrical enclosures.
Designed for use with a 6 mm operating shaft, the OHB65J6 features a black finish and clear I-0 / ON-OFF position markings for easy switch status identification. Its rear screw-fixing arrangement leaves no exposed screws on the front, supporting double-insulated construction and a clean, professional panel appearance.
When correctly installed, the handle provides IP65 and NEMA Type 1, 3R and 12 protection. It can be secured with up to three padlocks in the OFF position and includes a door interlock in the ON position, helping improve safety during electrical maintenance and equipment servicing.
Key Advantages
- Genuine ABB pistol operating handle for compatible disconnect switches.
- 65 mm handle length provides comfortable manual operation.
- Designed for a 6 mm operating shaft.
- IP65 and NEMA Type 1, 3R and 12 protection when correctly installed.
- Padlockable in the OFF position using up to three padlocks.
- Door interlock helps prevent enclosure access while the switch is ON.
Key Features
- ABB OHB series operating handle.
- 65 mm black pistol handle.
- Suitable for 6 mm diameter operating shafts.
- I-0 / ON-OFF position indication.
- Compatible with base-mounted and DIN-rail-mounted switches.
- Padlockable with up to three padlocks in the OFF position.
- Door interlock active in the ON position.
- Rear screw fixing with no exposed front screws.
Safe and Reliable Switch Operation
The ABB OHB65J6 provides a practical external operating interface for compatible switch-disconnectors installed within electrical panels and machinery enclosures. Its ergonomic pistol design supports positive manual switching while the clear position markings allow operators to identify the switch status quickly.
The integrated padlocking and door-interlocking functions support safe isolation procedures. Securing the handle in the OFF position can help prevent accidental or unauthorised re-energisation, while the ON-position door interlock helps restrict access to energised equipment.
Typical Applications
- Industrial switchboards and distribution panels.
- Motor control centres.
- Machinery and automation control panels.
- Commercial electrical installations.
- HVAC equipment and building services.
- OEM equipment and panel-building projects.
