Why Choose the ABB DS203NC C16 A30 RCBO?

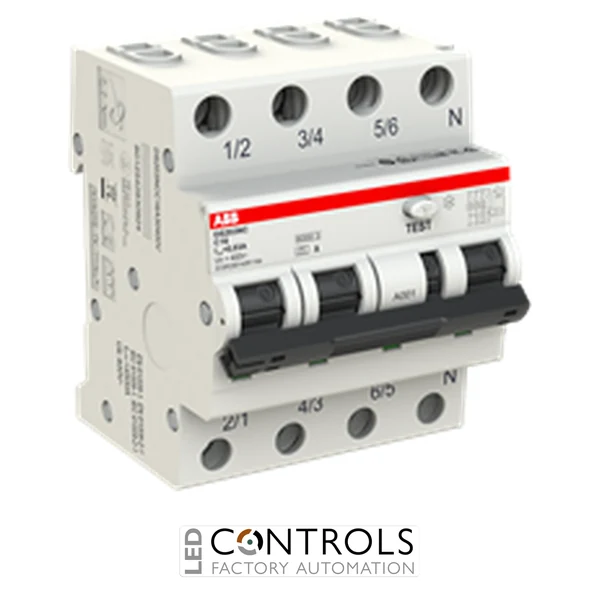

The ABB DS203NC C16 A30 (Product ID: 2CSR256140R1164) is a premium 3P+N Residual Current Circuit Breaker with Overcurrent Protection (RCBO) from ABB's compact DS203NC range. Combining the functions of a miniature circuit breaker and a residual current device in a single unit, it provides comprehensive protection against overloads, short circuits, earth leakage currents, indirect contact and additional protection against direct contact.
Featuring a 16 A rated current, a Type C tripping characteristic and a 30 mA Type A residual current sensitivity, the DS203NC C16 A30 is ideal for three-phase installations supplying commercial buildings, industrial equipment and distribution boards where both overcurrent and earth leakage protection are required.
Its compact four-module design saves valuable panel space while complying with IEC/EN 61009-1 and IEC/EN 61009-2-1. The device offers a 6 kA breaking capacity and is engineered for reliable long-term performance in demanding electrical installations.
Key Advantages
- Combined RCBO providing both overcurrent and residual current protection.
- 16 A rated current.
- 30 mA Type A residual current protection.
- Type C tripping characteristic for general-purpose circuits.
- 6 kA short-circuit breaking capacity.
- Compact four-module design saves distribution board space.
Key Features
- ABB DS203NC C16 A30 RCBO.
- Product ID: 2CSR256140R1164.
- 3P+N configuration.
- 16 A rated current.
- 30 mA residual operating current.
- Type A residual current detection.
- Type C tripping characteristic.
- 6 kA breaking capacity.
- DIN rail mounting.
- Suitable for 400–415 V AC systems.
Integrated Electrical Protection in One Device
The ABB DS203NC C16 A30 simplifies electrical protection by integrating an MCB and an RCD into a single compact device. This reduces installation space while providing dependable protection against overloads, short circuits and earth leakage faults, helping improve safety and minimise installation complexity.
Its Type A residual current sensing technology detects both sinusoidal AC and pulsating DC leakage currents, making it suitable for installations supplying modern electronic equipment, commercial buildings and industrial applications.
Typical Applications
- Commercial distribution boards.
- Industrial control panels.
- Three-phase electrical installations.
- Building services.
- OEM machinery.
- Electrical systems requiring combined overload and earth leakage protection.
