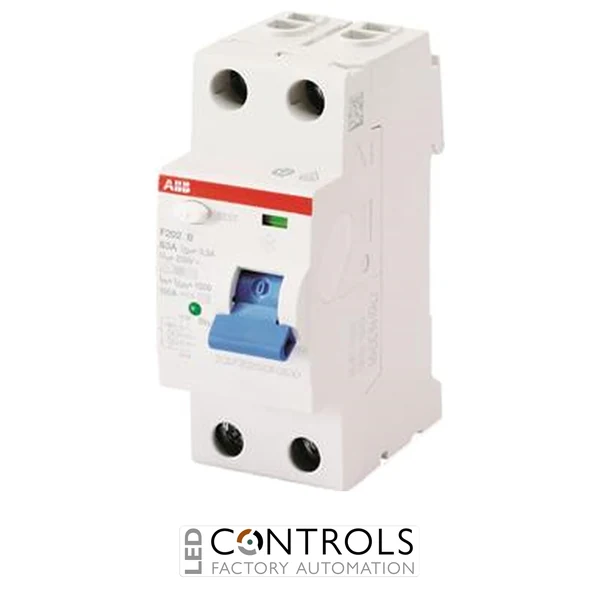

Why Choose the ABB F202 AC-80/0,03 AP-R Residual Current Circuit Breaker?
The ABB F202 AC-80/0,03 AP-R is a high-performance residual current circuit breaker (RCCB) designed to provide reliable protection against earth leakage faults in residential, commercial and industrial electrical installations. As part of the established ABB F200 series, this 2-pole RCCB helps protect people, equipment and electrical systems by disconnecting the circuit when residual current leakage is detected.
With a rated current of 80 A and 30 mA residual current sensitivity, this device is suitable for higher-load circuits where additional protection against electric shock is required. The Type AC tripping characteristic is designed for sinusoidal alternating residual currents, while the AP-R high-immunity design helps improve continuity of service by reducing unwanted tripping caused by transient disturbances.
The compact 2-pole DIN rail format, robust screw terminals and proven ABB construction make the F202 AC-80/0,03 AP-R ideal for distribution boards, consumer units and electrical control panels requiring dependable residual current protection.
Key Advantages
- 2-pole RCCB for residual current protection in single-phase electrical systems.
- 80 A rated current suitable for higher-load distribution circuits.
- 30 mA residual current sensitivity for additional protection against electric shock.
- Type AC residual current detection for sinusoidal AC earth leakage currents.
- AP-R high-immunity performance helps minimise nuisance tripping.
- Compact DIN rail mounting for efficient installation in electrical enclosures.
Key Features
- ABB F200 series residual current circuit breaker.
- 2-pole configuration.
- 80 A rated current.
- 30 mA rated residual operating current.
- Type AC residual current characteristic.
- AP-R high-immunity version for improved resistance to unwanted tripping.
- DIN rail mounting for standard modular boards.
- Screw terminal connection for secure wiring.
Reliable Residual Current Protection for High-Load Circuits
Residual current circuit breakers monitor the current balance between live and neutral conductors. If an earth leakage fault occurs, the device disconnects the circuit to help reduce the risk of electric shock, electrical faults and damage to connected equipment.
The ABB F200 series is widely used in modern electrical distribution systems where reliable residual current protection is required. The AP-R high-immunity version is particularly useful in installations where transient overvoltages, leakage currents or connected equipment may otherwise cause unwanted tripping.
Typical Applications
- Residential consumer units and distribution boards.
- Commercial electrical distribution systems.
- Industrial control panels and sub-distribution boards.
- Building services and facilities electrical installations.
- Lighting and power distribution circuits.
- Electrical installations requiring 30 mA additional protection.
