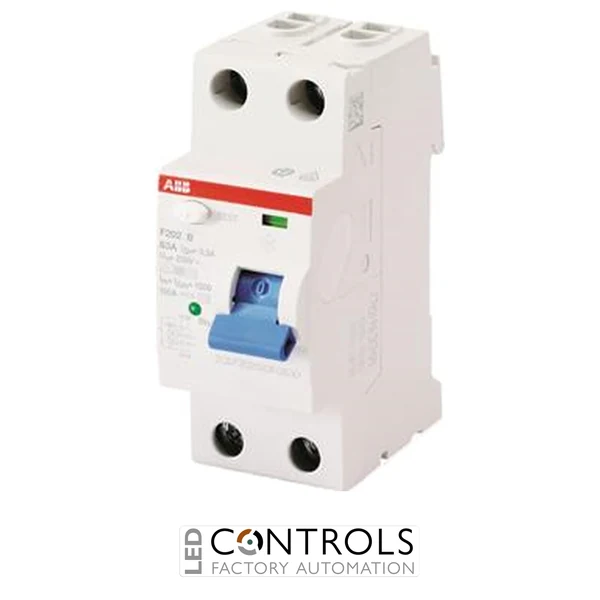

ABB F202 AC-100/0.1 RCD - 2P - Type AC - 100A - 100mA

ABB F202 AC-100/0.1 RCD – 2P – Type AC – 100A – 100mA

ABB F202 AC-100/0,1 residual current circuit breaker from the F200 series, a 2 pole Type AC RCCB rated at 100 A with 100 mA residual current sensitivity for DIN rail electrical distribution applications.

SKU: F202 AC-100/0,1Alt SKU: F202 AC-100/0.1MPN: 2CSF202001R2900
Price
List Price £215.34 ex VAT
Your Price (ex VAT)
£215.34
Manufacturer Lead Time Estimated Delivery 4 - 5 Days
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £215.34
Trade pricing is personalised to your account

Manufacturer Lead Time

£215.34

Why Choose the ABB F202 AC-100/0,1 Residual Current Circuit Breaker?

The ABB F202 AC-100/0,1 is a high quality residual current circuit breaker (RCCB) designed to provide dependable earth fault protection in electrical distribution systems. As part of the trusted ABB F200 series, this device helps protect people and installations by detecting residual current faults and disconnecting the circuit when leakage current exceeds the rated threshold.

This RCCB is a 2-pole Type AC residual current device suitable for use in single-phase electrical systems where protection against sinusoidal alternating residual currents is required. Its 100 A rated current and 100 mA residual current sensitivity make it well suited for industrial, commercial and larger distribution applications where reliable residual current protection is essential.

With a compact modular DIN rail design, the ABB F202 AC-100/0,1 is easy to install in consumer units, distribution boards and control panels. Its robust construction, screw terminal connections and instantaneous operating characteristic support long term reliability in demanding electrical environments.

Key Advantages

  • Reliable ABB F200 series RCCB for residual current protection.
  • 2-pole configuration suitable for single-phase circuits.
  • 100 A rated current for higher load electrical installations.
  • 100 mA residual current sensitivity for earth fault protection.
  • Type AC detection for sinusoidal alternating residual currents.
  • Compact DIN rail mounting for distribution boards and control panels.

Key Features

  • ABB F202 AC-100/0,1 residual current circuit breaker.
  • F200 series modular residual current device.
  • 100 A rated current.
  • 100 mA rated residual current.
  • 2-pole design.
  • Type AC residual current protection.
  • Instantaneous tripping characteristic.
  • Screw terminal connection for secure wiring.
  • DIN rail mounting for fast panel installation.

Reliable Earth Fault Protection for Electrical Installations

Residual current circuit breakers monitor the difference between live and neutral conductors. If leakage current is detected, the RCCB disconnects the circuit to help reduce the risk of electric shock, insulation fault damage and fire hazards caused by earth leakage.

The ABB F202 AC-100/0,1 is designed for installations requiring dependable residual current protection without integrated overcurrent protection. It should be used alongside suitably rated circuit breakers or protective devices to provide complete circuit protection.

Typical Applications

  • Commercial electrical distribution boards.
  • Industrial control panels and switchboards.
  • Single-phase power distribution systems.
  • Machinery and building services installations.
  • Electrical circuits requiring 100 mA residual current protection.
  • DIN rail mounted modular protection assemblies.

Technical Specifications

Current 100 A
Manufacturer ABB
Series F200
Model F202 AC-100/0,1
Product type Residual current circuit breaker / RCCB
Product ID 2CSF202001R2900
EAN 8012542914501
Number of poles 2
Rated current 100 A
Rated residual current 100 mA
Residual current type Type AC
Rated operational voltage 230 V AC
Rated insulation voltage 500 V
Rated impulse withstand voltage 4 kV
Operating characteristic Instantaneous
Standards IEC/EN 61008, UL 1053
Mounting type DIN rail
Terminal type Screw terminals
Protection rating IP20
Width in modules 2
Dimensions (H × W × D) approx. 85 × 35 × 69 mm
Weight approx. 0.20 kg
Poles 2-pole
Device Type RCD
Residual Current 100 mA
RCD Type Type AC

Frequently Asked Questions

What is the ABB F202 AC-100/0,1 used for?

The ABB F202 AC-100/0,1 is used to provide residual current protection in electrical installations by detecting earth leakage faults and disconnecting the circuit when required.

What current rating does this RCCB have?

This RCCB has a rated current of 100 A, making it suitable for higher load single-phase distribution applications.

What residual current sensitivity does the device provide?

The F202 AC-100/0,1 has a rated residual current sensitivity of 100 mA.

What does Type AC mean on this ABB RCCB?

Type AC means the device is designed to detect sinusoidal alternating residual currents commonly found in standard AC electrical circuits.

Does this RCCB provide overload protection?

No. This is a residual current circuit breaker and does not provide overcurrent or short-circuit protection. It should be installed with suitable circuit protection devices.

Trusted by Electrical Installers Worldwide

ABB F200 series residual current devices are widely used by electrical contractors, panel builders and facilities engineers for reliable earth fault protection in commercial and industrial installations.
