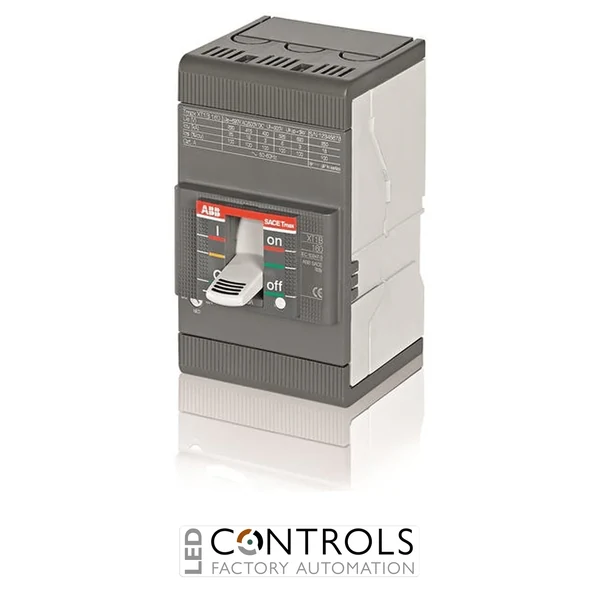

ABB 1SDA068208R1 XT1D 160 three pole fixed switch disconnector with front terminals, rated at 160 A for low voltage electrical distribution and isolation applications.
£421.72
The ABB 1SDA068208R1 is a high-performance Tmax XT1D 160 three-pole switch disconnector designed for safe load switching and circuit isolation in low-voltage electrical distribution systems. Part of ABB's advanced SACE Tmax XT range, this fixed switch disconnector provides dependable operation for industrial, commercial and panel-building applications.
The XT1D 160 is engineered for installations where reliable manual isolation, compact construction and robust electrical performance are essential. Its fixed three-pole configuration with front terminals supports straightforward integration into switchboards, control panels and distribution assemblies.
With a rated uninterrupted current of 160 A, rated operational voltage up to 690 V AC and 500 V DC, the ABB 1SDA068208R1 is ideal for demanding low-voltage power distribution and isolation duties. Its compact XT1 frame combines high reliability with flexible installation in modern electrical systems.
Switch disconnectors such as the ABB XT1D 160 provide a safe and dependable means of isolating circuits for maintenance, inspection and operational control. By allowing manual disconnection of three-phase circuits, the device helps support safe working practices in low-voltage electrical installations.
The ABB 1SDA068208R1 is well suited to applications requiring compact installation, robust switching performance and compatibility with modern distribution equipment. Its fixed front-terminal design makes it a practical choice for panel builders, contractors and maintenance engineers working with ABB Tmax XT systems.
| Current | 160 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | ABB |
| Series | SACE Tmax XT |
| Model | XT1D 160 3p F F |
| Product ID | 1SDA068208R1 |
| Product type | Switch disconnector |
| Frame size | XT1 |
| Rated current | 160 A |
| Rated uninterrupted current | 160 A |
| Number of poles | 3 pole |
| Mounting type | Fixed |
| Terminal type | Front terminals |
| Rated operational voltage | 690 V AC / 500 V DC |
| Rated insulation voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Rated frequency | 50 / 60 Hz |
| Rated short-time withstand current | 2 kA for 1 s |
| Mechanical durability | 25,000 cycles |
| Electrical durability | 8,000 cycles |
| Standards | IEC 60947-2 |
| EAN | 8015644021047 |
| HS Code | 85362090 |
| Country of Manufacture | Italy |
The ABB 1SDA068208R1 is used for safe manual switching and isolation of low-voltage electrical circuits in switchboards, control panels and distribution systems.
The ABB 1SDA068208R1 has a rated current of 160 A.
This model has a three-pole configuration, making it suitable for three-phase circuit isolation.
The device is supplied in a fixed execution with front terminals for main circuit connection.
Yes, the XT1D 160 is suitable for applications up to 690 V AC and 500 V DC, subject to correct installation and system design.
ABB SACE Tmax XT switch disconnectors are trusted by panel builders, electrical contractors and industrial engineers for reliable circuit isolation, compact construction and dependable performance in low-voltage distribution systems.
