BW225DP Enclosed Switch Disconnector

BW225DP Enclosed Switch Disconnector

ABB BW225DP 2-pole enclosed switch disconnector rated 25 A AC-22A, 16 A AC-23A with IP65 UV-resistant polycarbonate enclosure and padlockable side-operated handle.

SKU: 2CMA142400R1000Alt SKU: BW225DPMPN: 2CMA142400R1000
Price
List Price £37.09 ex VAT
Your Price (ex VAT)
£37.09
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £37.09
Trade pricing is personalised to your account

Manufacturer Lead Time

£37.09

Why Choose the ABB BW225DP Enclosed Switch Disconnector?

The ABB BW225DP (2CMA142400R1000) is a robust 2-pole enclosed switch disconnector designed for the safe isolation of electrical circuits in industrial, commercial and outdoor installations. Rated at 25 A AC-22A and 16 A AC-23A, it is housed in a durable UV-resistant polycarbonate enclosure with an IP65 protection rating, providing dependable operation even in demanding environments.

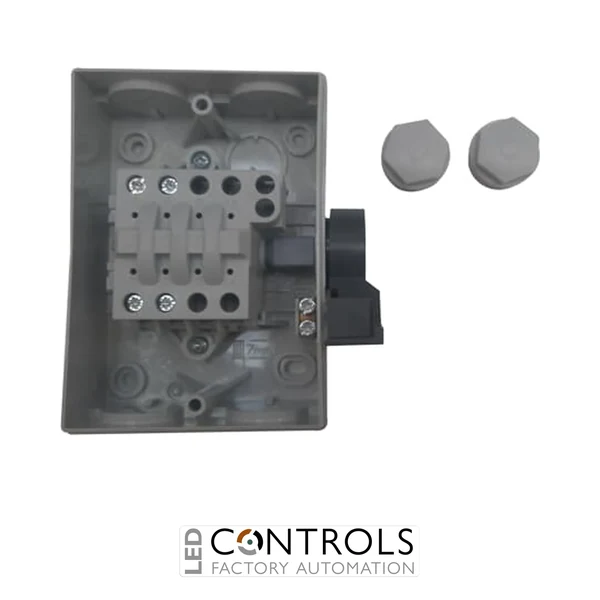

The enclosure features a grey side-operated padlockable handle, an interlocked cover, fixed neutral and PE terminals, and threaded cable entries at both the top and bottom. Membrane grommets are supplied as standard, enabling straightforward installation whilst maintaining excellent ingress protection.

Designed for 5-wire systems, the BW225DP provides reliable isolation for machinery, HVAC equipment, pumps and general power distribution applications. Its compact dimensions and rugged construction make it suitable for both indoor and outdoor use.

Key Advantages

  • High-quality 2-pole enclosed switch disconnector.
  • 25 A AC-22A switching capacity.
  • 16 A AC-23A motor duty rating.
  • IP65 enclosure suitable for indoor and outdoor installations.
  • UV-resistant polycarbonate housing.
  • Padlockable side-operated handle for safe isolation.
  • Interlocked cover prevents accidental access.

Key Features

  • ABB BW225DP enclosed switch disconnector.
  • Product ID: 2CMA142400R1000.
  • 2-pole configuration.
  • 25 A AC-22A rating.
  • 16 A AC-23A at 690 V AC.
  • Grey UV-resistant polycarbonate enclosure.
  • Side-operated grey handle.
  • Padlockable operating handle.
  • Interlocked enclosure cover.
  • Threaded cable entries with membrane grommets.
  • Fixed neutral and PE terminals.
  • Suitable for indoor and outdoor applications.

Reliable Isolation for Demanding Environments

The BW225DP combines safe electrical isolation with a durable enclosure designed to withstand harsh industrial and outdoor environments. Its UV-resistant housing and IP65 protection help safeguard the switch against dust, moisture and low-pressure water jets, ensuring dependable long-term performance.

The padlockable operating handle and interlocked cover improve operator safety during maintenance, while the integrated neutral and PE terminals simplify installation in modern low voltage electrical systems.

Typical Applications

  • Industrial machinery isolation.
  • Commercial electrical installations.
  • HVAC systems.
  • Pump control systems.
  • Outdoor electrical equipment.
  • General low voltage power distribution.

Technical Specifications

Tick the specs you need, then view products that match.

Power 3.7 kW
Current 25 A
Phase Single Phase
IP Rating IP65
Manufacturer ABB
Model BW225DP
Product ID 2CMA142400R1000
EAN 7392696424004
Product type Enclosed switch disconnector
Number of poles 2
Rated operational current AC-22A 25 A
Rated operational current AC-23A 16 A
Rated operational voltage 690 V AC
Motor rating 2.2 kW (AC-23A)
Rated insulation voltage (Ui) 690 V
Rated impulse withstand voltage (Uimp) 8 kV
Protection rating IP65
Enclosure material UV-resistant rigid polycarbonate
Handle Grey, side-operated, padlockable
Cover Interlocked
Cable entries 2 × M25 top / 2 × M25 bottom
Terminal type Screw terminals
Dimensions (H × W × D) 130 × 111 × 60 mm
Weight Approx. 0.29 kg
Standard IEC 60947-1, IEC 60947-3
Poles 2-pole

Frequently Asked Questions

What is the ABB BW225DP used for?

It is used to safely isolate two-pole electrical circuits in industrial, commercial and outdoor electrical installations.

What is the rated current?

The BW225DP is rated at 25 A AC-22A and 16 A AC-23A.

Is the enclosure suitable for outdoor use?

Yes. The UV-resistant polycarbonate enclosure is rated IP65 and is designed for both indoor and outdoor installations.

Can the operating handle be locked?

Yes. The side-operated handle is padlockable, allowing safe isolation during maintenance.

Does the switch include neutral and PE terminals?

Yes. The BW225DP includes fixed neutral and protective earth (PE) terminals for 5-wire system installations.
