Why Choose the ABB DSH201 C10 A30 RCBO?

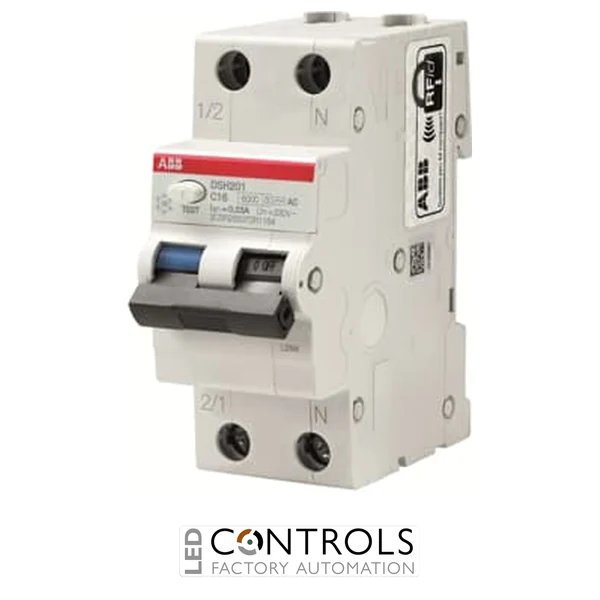

The ABB DSH201 C10 A30 is a compact 1P+N residual current circuit breaker with overcurrent protection (RCBO) designed to provide reliable protection against overloads, short circuits and earth leakage faults. As part of ABB's trusted DSH201 series, it combines miniature circuit breaker and residual current protection into a single DIN rail mounted device, making it ideal for residential and light commercial electrical installations.
Featuring a C tripping characteristic and Type A residual current protection, the DSH201 C10 A30 detects both alternating sinusoidal and pulsating DC residual currents. This makes it suitable for modern electrical installations supplying LED lighting, socket outlets, kitchen appliances, office equipment and other electronic loads.
With a 10 A rated current, 30 mA residual current sensitivity and a 6 kA service breaking capacity, the ABB DSH201 C10 A30 provides dependable protection while maintaining a compact two-module DIN rail design for easy installation.
Key Advantages
- Combined overload, short-circuit and earth leakage protection in one device.
- 10 A rated current ideal for lighting and low-power socket circuits.
- 30 mA Type A residual current protection.
- C curve suitable for circuits with moderate inrush currents.
- 6 kA service breaking capacity.
- Compact DIN rail mounted construction.
Key Features
- ABB DSH201 RCBO series.
- 1P+N configuration.
- 10 A rated current.
- Type A residual current protection.
- 30 mA rated residual operating current.
- C tripping characteristic.
- 6 kA breaking capacity.
- Suitable for standard DIN rail installation.
Reliable Combined Protection
The ABB DSH201 C10 A30 continuously monitors both load current and residual current. It automatically disconnects the electrical supply when overloads, short circuits or earth leakage faults occur, helping protect people, electrical installations and connected equipment from potentially hazardous electrical conditions.
Its Type A residual current capability makes it suitable for modern installations containing electronic equipment capable of producing pulsating DC leakage currents, while the C curve characteristic provides dependable protection for circuits with moderate starting currents.
Typical Applications
- Residential consumer units.
- Lighting circuits.
- Socket outlet circuits.
- Kitchen appliance circuits.
- Office installations.
- Commercial electrical distribution boards.
