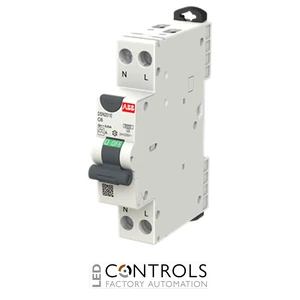

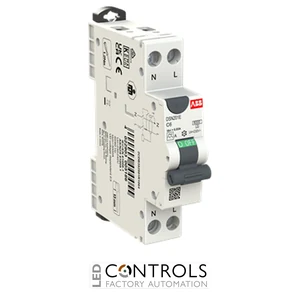

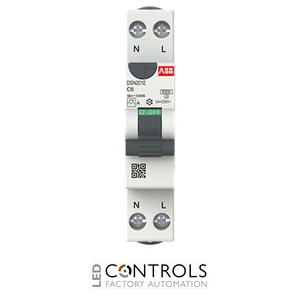

ABB DSN201E C6 A30 compact electronic RCBO with a 6 A current rating, C tripping characteristic, Type A 30 mA residual current protection, switched neutral and 6 kA breaking capacity.
£121.54
The ABB DSN201E C6 A30 is a compact residual current circuit breaker with overcurrent protection (RCBO) designed to protect single-phase final circuits against overloads, short circuits and earth leakage faults. As part of the dependable ABB DSN201E series, it combines residual current and overcurrent protection within a space-saving single-module device.
This electronic RCBO features a C tripping characteristic and Type A residual current protection. It can detect sinusoidal alternating residual currents and pulsating DC residual currents, making it suitable for modern electrical circuits containing electronic equipment and power supplies.
With a rated current of 6 A, a residual operating current of 30 mA and a short-circuit breaking capacity of 6 kA, the DSN201E C6 A30 provides reliable protection for lighting, control and other low-current final circuits. Its 1P+N switched-neutral configuration and one-module width help reduce installation space inside electrical distribution boards.
The ABB DSN201E C6 A30 combines the functions of a miniature circuit breaker and a residual current device. Its overcurrent protection disconnects the circuit during overload or short-circuit conditions, while its residual current function responds when potentially hazardous leakage current flows to earth.
Type A residual current detection makes the RCBO suitable for circuits supplying equipment with electronic components that may generate pulsating DC leakage currents. The switched neutral and compact one-module construction support safe isolation and efficient installation in modern electrical distribution systems.
| Manufacturer | ABB |
|---|---|
| Series | DSN201E |
| Model | DSN201E C6 A30 |
| Product ID | 2CDB352501R1064 |
| EAN | 4022903005186 |
| Product type | Residual current circuit breaker with overcurrent protection |
| Rated current | 6 A |
| Number of poles | 1P+N |
| Number of protected poles | 1 |
| Neutral conductor | Switched |
| Tripping characteristic | C curve |
| Residual current type | Type A |
| Rated residual operating current | 30 mA |
| Rated operational voltage | 240 V AC |
| Frequency | 50 / 60 Hz |
| Rated short-circuit breaking capacity | 6 kA |
| Rated insulation voltage | 500 V |
| Rated impulse withstand voltage | 4 kV |
| Current-limiting class | 3 |
| Protection rating | IP20 |
| Mounting type | DIN rail |
| Module width | 1 module |
| Terminal type | Screw terminals |
| Standards | IEC/EN 61009-1, IEC 61009-2-2 and AS/NZS 61009.1 |
| Dimensions (H × W × D) | approx. 97 × 17.6 × 70 mm |
| Weight | approx. 0.12 kg |
The DSN201E C6 A30 protects single-phase final circuits against overloads, short circuits and earth leakage faults.
The ABB DSN201E C6 A30 has a rated current of 6 A.
This RCBO has a rated residual operating current of 30 mA, providing additional protection against electric shock.
Type A protection detects sinusoidal alternating residual currents and pulsating DC residual currents produced by many modern electronic devices.
The RCBO occupies only one module on a standard DIN rail, helping conserve space inside the distribution board.
ABB DSN201E residual current circuit breakers with overcurrent protection provide electricians, panel builders and facilities professionals with compact, dependable protection for single-phase final circuits in modern residential and commercial installations.
