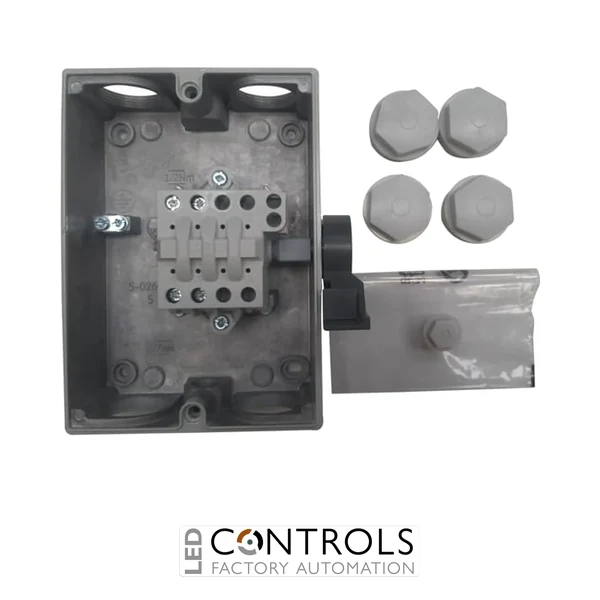

Why Choose the ABB KSE240DP Enclosed Switch Disconnector?
The ABB 2CMA142414R1000, also known as the KSE240DP, is a robust 2-pole enclosed switch disconnector designed to provide safe and reliable electrical isolation for commercial, industrial and infrastructure applications. As part of the ABB enclosed switch range, it delivers dependable switching performance while protecting personnel and equipment during maintenance and servicing.
Constructed with a durable silumin aluminium alloy enclosure, the KSE240DP is designed for demanding indoor and outdoor environments. Its UV-resistant finish, interlocked cover and IP65 protection rating provide excellent resistance to dust and water ingress, while the padlockable side-operated handle enhances operational safety.
With a rated operational current of 40 A and a maximum operational voltage of 690 V AC, the ABB KSE240DP is ideal for isolating electrical supplies in machinery, HVAC equipment, distribution panels and industrial installations. The enclosure includes fixed neutral and protective earth terminals for straightforward installation in four-wire systems.
Key Advantages
- Reliable 2-pole enclosed switch disconnector for electrical isolation.
- 40 A rated operational current.
- Suitable for systems operating up to 690 V AC.
- IP65-rated aluminium enclosure for indoor and outdoor installations.
- UV-resistant painted silumin housing.
- Padlockable side-operated handle improves operator safety.
- Interlocked cover helps prevent accidental access.
- Fixed neutral and protective earth terminals simplify installation.
Key Features
- ABB KSE240DP enclosed switch disconnector.
- 2-pole switching configuration.
- 40 A AC-22A rated operational current.
- 32 A AC-23A at 415 V.
- 7.5 kW motor switching capacity at 415 V AC-23A.
- Maximum operational voltage of 690 V AC.
- Rigid aluminium alloy (silumin) enclosure.
- IP65 ingress protection.
- Padlockable grey side-operated handle.
- Interlocked enclosure cover.
- Metric threaded cable entries.
- Designed in accordance with IEC 60947-3.
Reliable Electrical Isolation for Industrial Installations
The ABB KSE240DP provides a dependable means of isolating electrical circuits before maintenance or servicing. Its robust switching mechanism and enclosed construction help improve operator safety while reducing the risk of accidental contact with live components.
Designed for long-term operation in demanding environments, the UV-resistant aluminium enclosure, IP65 ingress protection and padlockable operating handle make the KSE240DP suitable for both indoor and outdoor installations. Threaded cable entries and easily accessible terminals simplify installation and maintenance.
Typical Applications
- Industrial machinery.
- Motor isolation circuits.
- HVAC systems.
- Commercial electrical installations.
- Distribution panels.
- Pumping systems.
- Manufacturing facilities.
- Outdoor electrical installations.
- Maintenance isolation points.
