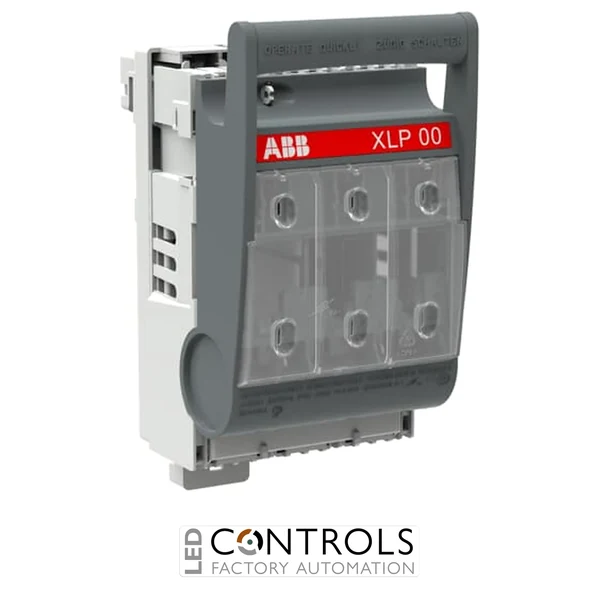

XLP00-A60/60-A-3BC-above Fuse Switch Disconnector

Q: What is the rated current?

The ABB XLP00-A60/60-A-3BC-Above has a rated current of 160 A.

Q: Does this model include a busbar adaptor and bridge clamps?

Yes. The 1SEP101917R0001 version is supplied complete with an A60/60 busbar adaptor and three bridge clamps.

Q: Which fuse sizes are compatible?

This model accepts standard NH00 and NH000 DIN fuse links.

ABB XLP00-A60/60-A-3BC-Above three-pole 160 A fuse switch disconnector for NH00 and NH000 fuse links, supplied with an A60/60 busbar adaptor and three bridge clamps for cable connection above.

SKU: 1SEP101917R0001Alt SKU: XLP00-A60/60-A-3BC-aboveMPN: 1SEP101917R0001

List Price £165.11 ex VAT

Your Price (ex VAT)

£165.11

Manufacturer Lead Time Estimated Delivery 6 weeks

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £165.11

Trade pricing is personalised to your account

Manufacturer Lead Time

£165.11

Why Choose the ABB XLP00-A60/60-A-3BC-Above Fuse Switch Disconnector?

The ABB XLP00-A60/60-A-3BC-Above (1SEP101917R0001) is a compact 3-pole fuse switch disconnector engineered for safe switching, dependable isolation and overcurrent protection in industrial and commercial low-voltage power distribution systems. Part of the ABB EasyLine XLP range, this model is rated at 160 A and is designed for use with NH00 and NH000 DIN fuse links.

Supplied complete with an A60/60 adaptor for direct installation on a 60 mm busbar system and three bridge clamps, this version features an above cable connection, making it ideal for switchboard layouts where conductors enter from the top of the assembly.

Designed for operation up to 1000 V AC, with an 8 kV impulse withstand voltage and a 50 kA conditional short-circuit rating at 690 V, the ABB XLP00-A60/60-A-3BC-Above delivers reliable fused isolation for OEM machinery, industrial switchboards and commercial distribution systems.

Key Advantages

Compact 3-pole fuse switch disconnector.
160 A rated current for low-voltage distribution systems.
Compatible with NH00 and NH000 DIN fuse links.
Includes an A60/60 adaptor for 60 mm busbar mounting.
Supplied complete with three bridge clamps.
Above cable entry supports organised panel wiring.
Front-operated mechanism for safe switching and maintenance.
Reliable ABB EasyLine construction for long service life.

Key Features

ABB EasyLine XLP00 series.
Model: XLP00-A60/60-A-3BC-Above.
Manufacturer Part Number: 1SEP101917R0001.
3-pole configuration.
160 A rated current.
NH00 and NH000 fuse compatibility.
A60/60 busbar adaptor included.
Three bridge-clamp terminals included.
Cable connection above the unit.
Suitable for 60 mm busbar systems.

Reliable Busbar-Mounted Fused Isolation

The ABB XLP00-A60/60-A-3BC-Above combines safe manual isolation with the proven protection offered by NH fuse links. Installed on a 60 mm busbar system, it provides dependable switching and isolation while protecting downstream circuits against overloads and short circuits when fitted with the appropriate fuse links.

Its factory-fitted A60/60 adaptor and bridge-clamp terminals simplify installation while the above-entry cable arrangement provides flexibility when designing compact switchboard layouts for industrial and commercial applications.

Typical Applications

Industrial switchboards.
Commercial distribution panels.
Motor control centres.
OEM machinery and equipment.
Power distribution systems.
60 mm busbar-mounted feeder circuits.

Technical Specifications

Phase	Three Phase
Manufacturer	ABB
Series	EasyLine XLP
Model	XLP00-A60/60-A-3BC-Above
Manufacturer Part Number	1SEP101917R0001
Product type	Fuse switch disconnector
Number of poles	3
Rated current	160 A
Fuse sizes	NH00 and NH000
Fuse system	DIN NH
Rated operational voltage	400 / 500 / 690 / 800 / 1000 V AC
Rated operational current (AC-21B)	125 A at 690 V
Rated operational current (AC-22B)	160 A at 500 V, 63 A at 800 V and 125 A at 1000 V
Rated operational current (AC-23B)	125 A at 400 V
Rated frequency	50 / 60 Hz
Rated impulse withstand voltage	8 kV
Conditional short-circuit current	50 kA RMS at 690 V
Degree of protection	IP30
Mounting type	60 mm busbar system
Busbar adaptor	A60/60 included
Terminal type	Three bridge clamps included
Cable direction	Above
Electronic fuse monitoring	Not included
Dimensions (W × H × D)	105 × 206 × 126 mm
Net weight	Approx. 0.95 kg
EAN	7025840015642
HS Code	85365019
Country of Manufacture	Bulgaria
Poles	3-pole
Device Type	Fuse switch disconnector
Fuse Size	NH00
Current	160 A

Frequently Asked Questions

What is the ABB XLP00-A60/60-A-3BC-Above used for?

It is a three-pole fuse switch disconnector designed for switching, isolating and protecting low-voltage electrical circuits using NH00 or NH000 fuse links.

What is the rated current?

The ABB XLP00-A60/60-A-3BC-Above has a rated current of 160 A.

Does this model include a busbar adaptor and bridge clamps?

Yes. The 1SEP101917R0001 version is supplied complete with an A60/60 busbar adaptor and three bridge clamps.

Which fuse sizes are compatible?

This model accepts standard NH00 and NH000 DIN fuse links.

What does "cable above" mean?

It indicates that the main cable connections are positioned above the fuse switch disconnector, making it suitable for top cable entry installations.

Trusted by Electrical Professionals Worldwide

ABB EasyLine XLP fuse switch disconnectors are trusted by electrical engineers, panel builders and industrial maintenance teams for dependable fused isolation, straightforward installation and reliable performance in demanding low-voltage power distribution systems.

Phase	Three Phase
Manufacturer	ABB
Series	EasyLine XLP
Model	XLP00-A60/60-A-3BC-Above
Manufacturer Part Number	1SEP101917R0001
Product type	Fuse switch disconnector
Number of poles	3
Rated current	160 A
Fuse sizes	NH00 and NH000
Fuse system	DIN NH
Rated operational voltage	400 / 500 / 690 / 800 / 1000 V AC
Rated operational current (AC-21B)	125 A at 690 V
Rated operational current (AC-22B)	160 A at 500 V, 63 A at 800 V and 125 A at 1000 V
Rated operational current (AC-23B)	125 A at 400 V
Rated frequency	50 / 60 Hz
Rated impulse withstand voltage	8 kV
Conditional short-circuit current	50 kA RMS at 690 V
Degree of protection	IP30
Mounting type	60 mm busbar system
Busbar adaptor	A60/60 included
Terminal type	Three bridge clamps included
Cable direction	Above
Electronic fuse monitoring	Not included
Dimensions (W × H × D)	105 × 206 × 126 mm
Net weight	Approx. 0.95 kg
EAN	7025840015642
HS Code	85365019
Country of Manufacture	Bulgaria
Poles	3-pole
Device Type	Fuse switch disconnector
Fuse Size	NH00
Current	160 A
