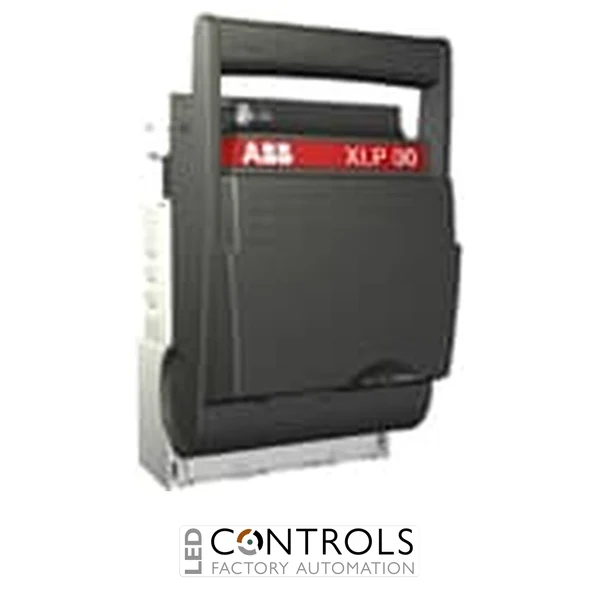

XLP00-EFM-6BC Fuse Switch Disconnector

XLP00-EFM-6BC Fuse Switch Disconnector

ABB EasyLine XLP00-EFM-6BC three-pole NH00 fuse switch disconnector rated at 160 A with Electronic Fuse Monitoring and 6 bridge clamps.

SKU: 1SEP101890R0012Alt SKU: XLP00-EFM-6BCMPN: 1SEP101890R0012
Price
List Price £271.65 ex VAT
Your Price (ex VAT)
£271.65
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £271.65
Trade pricing is personalised to your account

Manufacturer Lead Time

£271.65

Why Choose the ABB XLP00-EFM-6BC Fuse Switch Disconnector?

The ABB 1SEP101890R0012, also known as the XLP00-EFM-6BC, is a premium 3-pole NH00 fuse switch disconnector from ABB's EasyLine range. Designed for safe switching, isolation and protection of low-voltage power distribution systems, this version is supplied complete with an Electronic Fuse Monitoring (EFM) module and 6 bridge clamps, providing enhanced fault monitoring and simplified installation.

Rated for 160 A and suitable for operating voltages up to 1000 V AC, the XLP00-EFM-6BC accepts standard NH00 fuse links. The integrated Electronic Fuse Monitoring module continuously supervises fuse status, allowing rapid identification of blown fuses to minimise downtime and improve maintenance efficiency.

Manufactured in accordance with IEC 60947-3, the switch disconnector combines reliable circuit protection, safe load switching and long service life. The supplied bridge clamps enable fast, secure cable connections, making it ideal for industrial switchboards, OEM equipment and commercial distribution systems.

Key Advantages

  • Reliable 3-pole NH00 fuse switch disconnector.
  • Integrated Electronic Fuse Monitoring (EFM).
  • Supplied complete with 6 bridge clamps.
  • 160 A maximum fuse current rating.
  • Suitable for systems operating up to 1000 V AC.
  • Designed for standard NH00 fuse links.
  • Compact EasyLine construction.
  • Rapid identification of blown fuses to reduce maintenance time.

Key Features

  • ABB EasyLine XLP00-EFM-6BC fuse switch disconnector.
  • 3-pole configuration.
  • 160 A fuse rating.
  • Accepts NH00 fuse links.
  • Integrated Electronic Fuse Monitoring module.
  • Supplied with 6 bridge clamps.
  • Maximum operational voltage: 1000 V AC.
  • Rated insulation voltage (Ui): 1000 V.
  • Impulse withstand voltage (Uimp): 8 kV.
  • Conditional short-circuit current: 50 kA.
  • Front protection rating: IP30.
  • Manufactured to IEC 60947-3.

Advanced Fuse Monitoring for Greater Reliability

The ABB XLP00-EFM-6BC combines dependable switching and isolation with integrated Electronic Fuse Monitoring technology. The EFM module helps maintenance personnel identify fuse failures quickly, reducing fault-finding time and improving system availability in critical electrical installations.

Designed for switchboards, industrial control panels and commercial power distribution systems, the XLP00-EFM-6BC delivers high electrical performance while simplifying installation through the supplied bridge clamps and compact EasyLine design.

Typical Applications

  • Industrial switchboards.
  • Commercial power distribution.
  • Motor feeders.
  • OEM machinery.
  • Control panels.
  • Critical infrastructure.
  • Renewable energy installations.
  • Electrical distribution systems.
  • Maintenance-critical applications requiring fuse monitoring.

Technical Specifications

Current 160 A
Phase Three Phase
Manufacturer ABB
Series EasyLine
Model XLP00-EFM-6BC
Product ID 1SEP101890R0012
Product type Fuse switch disconnector
Number of poles 3
Fuse size NH00
Maximum fuse current 160 A
Rated operational current AC-21B 125 A at 690 V
Rated operational current AC-22B 160 A at 500 V
Rated operational current AC-23B 125 A
Maximum operational voltage 1000 V AC
Rated insulation voltage (Ui) 1000 V
Rated impulse withstand voltage (Uimp) 8 kV
Conditional short-circuit current 50 kA
Protection rating IP30 (front)
Electronic monitoring Integrated EFM module
Connection 6 bridge clamps supplied
Weight Approx. 0.68 kg
Standard IEC 60947-3
EAN 7025840013433
Country of origin Bulgaria
HS Code 85365019
Country of Manufacture Bulgaria
Poles 3-pole
Device Type Fuse switch disconnector
Fuse Size NH00

Frequently Asked Questions

What is the ABB XLP00-EFM-6BC used for?

It provides safe switching, isolation and fuse protection for low-voltage electrical circuits while electronically monitoring fuse status.

What does the Electronic Fuse Monitoring (EFM) module do?

The integrated EFM module continuously monitors the condition of the fuse links and helps identify blown fuses quickly, reducing maintenance time.

Which fuse size does the 1SEP101890R0012 accept?

It is designed to accept standard NH00 fuse links.

Are bridge clamps included?

Yes. This version is supplied complete with 6 bridge clamps for simplified installation.

What is the maximum current rating?

The XLP00-EFM-6BC supports a maximum fuse current of 160 A.

Trusted for Intelligent Power Distribution

ABB EasyLine fuse switch disconnectors with Electronic Fuse Monitoring are trusted by panel builders, OEMs and electrical contractors for dependable protection, rapid fault indication and long-term operational reliability.
