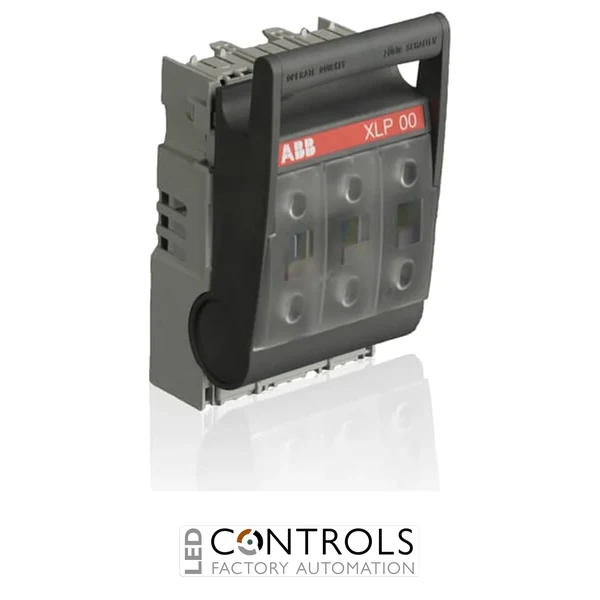

XLP00 Fuse Switch Disconnector

XLP00 Fuse Switch Disconnector

ABB EasyLine XLP00 three-pole NH00 fuse switch disconnector rated at 160 A for low-voltage power distribution and electrical isolation.

SKU: 1SEP101890R0001Alt SKU: XLP00MPN: 1SEP101890R0001
Price
List Price £81.66 ex VAT
Your Price (ex VAT)
£81.66
Manufacturer Lead Time Estimated Delivery 4 - 5 Days
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £81.66
Trade pricing is personalised to your account

Manufacturer Lead Time

£81.66

Why Choose the ABB XLP00 Fuse Switch Disconnector?

The ABB 1SEP101890R0001, also known as the XLP00, is a high-performance 3-pole NH00 fuse switch disconnector from ABB's EasyLine range. Designed for safe switching, isolation and protection of low-voltage power distribution systems, it provides dependable performance for industrial, commercial and OEM applications.

Rated for 160 A and supporting operating voltages up to 1000 V AC, the XLP00 offers excellent electrical performance while accepting standard NH00 fuse links. Its compact design allows simple installation within switchboards, distribution panels and busbar systems.

The switch disconnector is supplied without clamps or bolts, allowing installers to select the most appropriate terminal accessories for the application. Manufactured to IEC 60947-3 standards, it delivers reliable protection, safe load switching and long service life in demanding electrical installations.

Key Advantages

  • Reliable 3-pole NH00 fuse switch disconnector.
  • 160 A maximum fuse current rating.
  • Suitable for systems operating up to 1000 V AC.
  • Designed for NH00 fuse links.
  • Compact EasyLine construction.
  • Safe switching and circuit isolation.
  • Suitable for busbar and panel mounting.
  • Compatible with a wide range of ABB accessories and terminal options.

Key Features

  • ABB EasyLine XLP00 fuse switch disconnector.
  • 3-pole configuration.
  • 160 A fuse rating.
  • Accepts NH00 fuse links.
  • Maximum operating voltage 1000 V AC.
  • Rated insulation voltage (Ui): 1000 V.
  • Impulse withstand voltage (Uimp): 8 kV.
  • Conditional short-circuit current: 50 kA.
  • Front protection rating: IP30.
  • Baseplate and busbar mounting.
  • Supplied without clamps or fixing bolts.
  • Manufactured in accordance with IEC 60947-3.

Reliable Fuse Protection for Low-Voltage Distribution

The ABB XLP00 provides safe switching and dependable overcurrent protection for low-voltage electrical systems. Designed for NH00 fuse links, it combines compact dimensions with high interrupting capability, making it suitable for switchboards, distribution assemblies and industrial control panels.

Its modular EasyLine design supports numerous connection accessories, allowing installers to configure the switch disconnector for a wide variety of panel-building and power distribution applications while maintaining excellent operational safety.

Typical Applications

  • Low-voltage power distribution.
  • Industrial switchboards.
  • Commercial distribution panels.
  • Motor feeders.
  • Machine builders and OEM equipment.
  • Busbar distribution systems.
  • Renewable energy installations.
  • Control panels.
  • Electrical infrastructure projects.

Technical Specifications

Phase Three Phase
Manufacturer ABB
Series EasyLine
Model XLP00
Product ID 1SEP101890R0001
Product type Fuse switch disconnector
Number of poles 3
Fuse size NH00
Maximum fuse current 160 A
Rated operational current AC-21B 125 A at 690 V
Rated operational current AC-22B 160 A at 500 V
Rated operational current AC-23B 125 A
Maximum operational voltage 1000 V AC
Rated insulation voltage (Ui) 1000 V
Impulse withstand voltage (Uimp) 8 kV
Conditional short-circuit current 50 kA
Degree of protection IP30 (front)
Mounting Baseplate / busbar mounting
Terminal configuration Without clamps or bolts
Dimensions (H × W × D) Approx. 187 × 105 × 90 mm
Weight Approx. 0.55 kg
Standard IEC 60947-3
EAN 7025840013396
Country of origin Bulgaria
HS Code 85369095
Country of Manufacture Bulgaria
Poles 3-pole
Device Type Fuse switch disconnector
Fuse Size NH00

Frequently Asked Questions

What is the ABB XLP00 used for?

The ABB XLP00 is a fuse switch disconnector used for safe switching, isolation and protection of low-voltage electrical circuits using NH00 fuse links.

What fuse size does the 1SEP101890R0001 accept?

It is designed to accept standard NH00 fuse links.

What is the maximum current rating?

The XLP00 supports a maximum fuse current of 160 A.

Are terminal clamps supplied?

No. This version is supplied without clamps or bolts, allowing the appropriate accessories to be selected separately.

Can the XLP00 be mounted on a busbar system?

Yes. The switch disconnector is suitable for both baseplate and busbar mounting depending on the selected accessories.

Trusted for Safe Power Distribution

ABB EasyLine fuse switch disconnectors are trusted worldwide by panel builders, OEMs and electrical contractors for reliable circuit protection, compact installation and dependable long-term performance.
