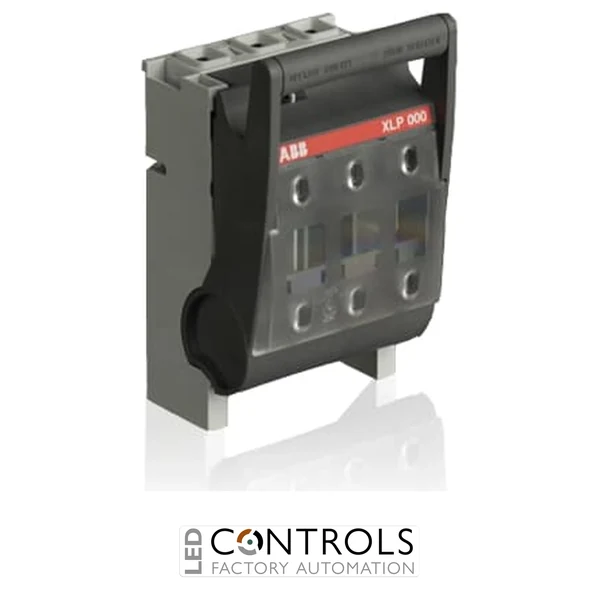

XLP000-6CC Fuse Switch Disconnector

XLP000-6CC Fuse Switch Disconnector

ABB XLP000-6CC three-pole 100 A fuse switch disconnector for NH000 and NH00C DIN fuse links, supplied complete with 6 cage clamp terminals.

SKU: 1SEP201428R0001Alt SKU: XLP000-6CCMPN: 1SEP201428R0001
Price
List Price £74.96 ex VAT
Your Price (ex VAT)
£74.96
Manufacturer Lead Time Estimated Delivery 4 - 5 Days
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £74.96
Trade pricing is personalised to your account

Manufacturer Lead Time

£74.96

Why Choose the ABB XLP000-6CC Fuse Switch Disconnector?

The ABB XLP000-6CC (1SEP201428R0001) is a compact 3-pole fuse switch disconnector from the ABB EasyLine XLP range, designed to provide safe switching, reliable isolation and effective circuit protection for low-voltage electrical installations. Designed for NH000 and NH00C DIN fuse links, it offers a 100 A rated current and is supplied complete with 6 cage clamp terminals for fast, secure cable termination.

Its compact base-mounted design makes it ideal for distribution boards, control panels, OEM equipment and machinery where installation space is limited. The front-operated switching mechanism enables safe manual isolation while allowing quick fuse replacement during maintenance.

Suitable for operation up to 690 V AC, the XLP000-6CC provides dependable overload and short-circuit protection when used with the correct NH fuse links, making it an excellent solution for industrial and commercial power distribution applications.

Key Advantages

  • Compact 3-pole fuse switch disconnector.
  • 100 A rated current.
  • Designed for NH000 and NH00C DIN fuse links.
  • Supplied complete with 6 cage clamp terminals.
  • Suitable for operation up to 690 V AC.
  • Compact footprint for panel builders and OEM equipment.
  • Reliable ABB EasyLine construction for long service life.

Key Features

  • ABB EasyLine XLP series.
  • Model: XLP000-6CC.
  • Manufacturer Part Number: 1SEP201428R0001.
  • 3-pole configuration.
  • 100 A rated current.
  • NH000 / NH00C fuse compatibility.
  • Includes 6 cage clamp terminals.
  • Baseplate mounting.
  • Front-operated switching mechanism.

Compact Fused Isolation for Low-Voltage Systems

The ABB XLP000-6CC combines manual switching and dependable circuit isolation with the proven protection of NH fuse links. When fitted with correctly rated fuse links, it provides reliable protection against overloads and short circuits while enabling circuits to be safely isolated during maintenance.

Its compact size and integrated cage clamp terminals make it particularly suitable for OEM machinery, industrial control panels and commercial distribution systems where space-saving installation and dependable performance are essential.

Typical Applications

  • Industrial control panels.
  • OEM machinery.
  • Commercial distribution boards.
  • Motor control circuits.
  • Low-voltage switchboards.
  • Power distribution equipment.

Technical Specifications

Current 100 A
Phase Three Phase
Manufacturer ABB
Series EasyLine XLP
Model XLP000-6CC
Manufacturer Part Number 1SEP201428R0001
Product type Fuse switch disconnector
Number of poles 3
Rated current 100 A
Fuse sizes NH000 / NH00C
Fuse system DIN NH
Rated operational voltage 400 / 500 / 690 V AC
Rated operational current (AC-21B) 50 A at 690 V
Rated operational current (AC-22B) 100 A at 500 V
Rated operational current (AC-23B) 80 A
Rated impulse withstand voltage (Uimp) 6 kV
Conditional short-circuit current 50 kA RMS at 690 V
Protection rating IP30
Mounting type Baseplate
Terminal type 6 cage clamp terminals included
Applicable standard IEC 60947-3
Weight Approx. 0.40 kg
EAN 7025840013372
HS Code 85365019
Country of Manufacture Bulgaria
Poles 3-pole
Device Type Fuse switch disconnector
Fuse Size NH000

Frequently Asked Questions

What is the ABB XLP000-6CC used for?

The ABB XLP000-6CC is a three-pole fuse switch disconnector designed for switching, isolating and protecting low-voltage electrical circuits using NH000 or NH00C fuse links.

What is the rated current?

The ABB XLP000-6CC has a rated current of 100 A.

Which fuse sizes are compatible?

This model accepts standard NH000 and NH00C DIN fuse links.

Does this version include cable terminals?

Yes. The 1SEP201428R0001 version is supplied complete with 6 cage clamp terminals.

Where is the XLP000-6CC typically installed?

It is commonly used in industrial control panels, OEM equipment, distribution boards and low-voltage switchboards.
