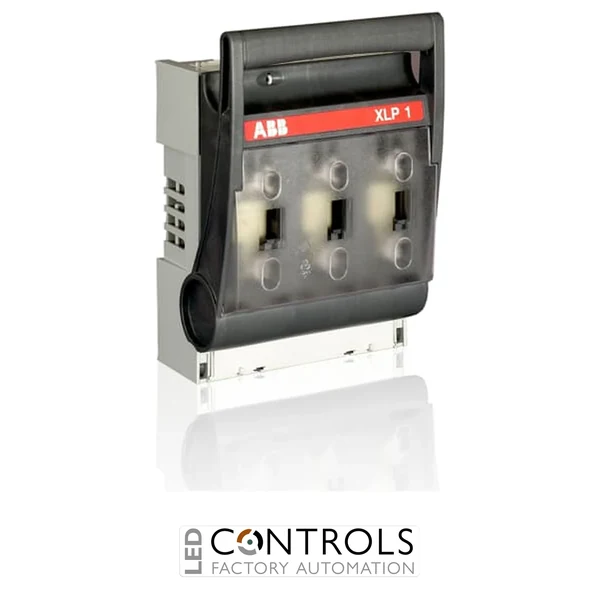

ABB XLP1-6M10 three-pole 250 A fuse switch disconnector for NH1 DIN fuse links, supplied complete with 6 x M10 connection bolts for industrial low voltage power distribution.
£340.48
The ABB XLP1-6M10 (1SEP101891R0004) is a robust 3-pole fuse switch disconnector designed to provide safe switching, isolation and overcurrent protection in industrial and commercial low voltage power distribution systems. Part of the proven ABB EasyLine XLP range, it combines dependable performance with a compact, durable design suitable for switchboards, motor control centres and OEM electrical assemblies.
Rated at 250 A, the XLP1-6M10 accepts NH1 DIN fuse links and is supplied complete with 6 × M10 connection bolts, allowing secure cable termination for high-current installations. Its front-operated mechanism provides safe load isolation while simplifying routine inspection and fuse replacement.
Designed for operation up to 500 V AC with an 8 kV impulse withstand voltage, the ABB XLP1-6M10 delivers reliable fused isolation for industrial distribution equipment where safety, durability and ease of installation are essential.
The ABB XLP1-6M10 provides safe manual isolation while using NH fuse links to protect electrical circuits against overloads and short circuits. Its robust operating mechanism and secure M10 bolted terminals make it well suited to demanding industrial applications requiring dependable long-term performance.
Designed for modern low voltage distribution systems, the EasyLine XLP range is widely used by panel builders, electrical contractors and OEM manufacturers requiring reliable fused switching and straightforward installation.
| Current | 250 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | ABB |
| Series | EasyLine XLP |
| Model | XLP1-6M10 |
| Manufacturer Part Number | 1SEP101891R0004 |
| Product type | Fuse switch disconnector |
| Number of poles | 3 |
| Rated current | 250 A |
| Fuse size | NH1 |
| Fuse system | DIN NH |
| Rated operational voltage | 500 V AC |
| Rated impulse withstand voltage | 8 kV |
| Rated frequency | 50 / 60 Hz |
| Mounting type | Baseplate mounting |
| Connection type | 6 × M10 connection bolts included |
| Protection rating | IP30 (front when closed) |
| Dimensions (H × W × D) | 270 × 185 × 116 mm |
| Weight | approx. 1.8 kg |
| HS Code | 85365019 |
| Country of Manufacture | Bulgaria |
The XLP1-6M10 is a fuse switch disconnector used to safely isolate low voltage electrical circuits while providing overload and short-circuit protection using NH1 fuse links.
The ABB XLP1-6M10 has a rated current of 250 A.
This version is supplied complete with 6 × M10 connection bolts for secure cable termination.
The switch is designed for standard NH1 DIN fuse links.
It is commonly installed in industrial switchboards, motor control centres and low voltage distribution panels requiring reliable fused isolation.
ABB EasyLine XLP fuse switch disconnectors are trusted by electrical engineers, panel builders and industrial maintenance teams for dependable fused isolation, robust construction and reliable performance in demanding low voltage power distribution systems.
