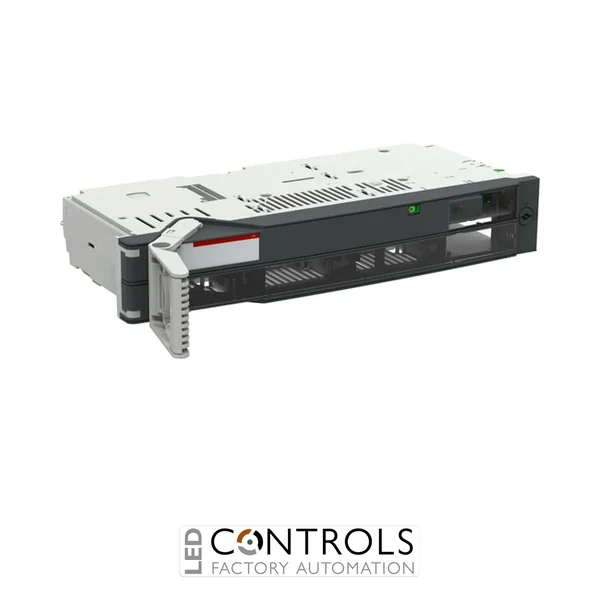

XRG1-185/10-3P-EFM Switch disconnector fuse

XRG1-185/10-3P-EFM Switch disconnector fuse

ABB XRG1-185/10-3P-EFM SlimLine XR Gold three-pole 250 A switch disconnector fuse with integrated Electronic Fuse Monitoring for industrial and commercial power distribution systems.

SKU: 1SEP204481R3501Alt SKU: XRG1-185/10-3P-EFMMPN: 1SEP204481R3501
Price
List Price £2,100.14 ex VAT
Your Price (ex VAT)
£2,100.14
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £2,100.14
Trade pricing is personalised to your account

Manufacturer Lead Time

£2,100.14

Why Choose the ABB XRG1-185/10-3P-EFM Switch Disconnector Fuse?

The ABB XRG1-185/10-3P-EFM (1SEP204481R3501) is a premium three-pole switch disconnector fuse with integrated Electronic Fuse Monitoring (EFM), designed to provide safe switching, reliable isolation and intelligent fuse supervision in low voltage power distribution systems. As part of the advanced ABB SlimLine XR Gold series, it delivers enhanced operational safety while simplifying fault diagnosis in industrial and commercial installations.

Designed for installation on 185 mm busbar systems with a 10 mm busbar thickness, this switch disconnector fuse enables rapid, wire-free mounting while maintaining a compact footprint. The integrated Electronic Fuse Monitoring system provides immediate indication of blown fuse conditions, helping maintenance engineers identify faults quickly and minimise costly downtime.

With a 250 A rated operational current, 690 V AC rated operational voltage and compatibility with NH1 DIN fuse links, the XRG1-185/10-3P-EFM is ideally suited to industrial switchboards, renewable energy systems, manufacturing facilities and critical power distribution applications requiring dependable protection and intelligent monitoring.

Key Advantages

  • Premium three-pole switch disconnector fuse.
  • Integrated Electronic Fuse Monitoring (EFM) for rapid fault indication.
  • 250 A rated operational current for demanding applications.
  • Designed for 185 mm busbar spacing with 10 mm busbar thickness.
  • Compatible with NH1 DIN fuse links.
  • Reliable ABB SlimLine XR Gold construction for long service life.

Key Features

  • ABB SlimLine XR Gold series.
  • XRG1-185/10-3P-EFM model.
  • Factory-installed Electronic Fuse Monitoring.
  • Three-pole configuration.
  • 250 A rated operational current.
  • 690 V AC rated operational voltage.
  • 1000 V insulation voltage (Ui).
  • 8 kV impulse withstand voltage (Uimp).
  • Compatible with NH1 DIN fuse links.
  • Manual operation with true contact position indication.
  • Busbar-mounted design.
  • IP41 front protection rating.

Enhanced Protection with Electronic Fuse Monitoring

Electronic Fuse Monitoring continuously supervises the condition of installed NH fuse links and provides rapid indication if a fuse operates. This enables maintenance personnel to locate faults more quickly, reducing downtime while improving overall system availability and maintenance efficiency.

The ABB SlimLine XR Gold range has been developed for industrial power distribution, renewable energy installations and critical infrastructure where dependable switching, intelligent monitoring and long-term reliability are essential.

Typical Applications

  • Industrial switchboards.
  • Renewable energy and solar inverter systems.
  • Busbar power distribution systems.
  • Manufacturing facilities.
  • Commercial electrical distribution panels.
  • Critical infrastructure installations.

Technical Specifications

Phase Three Phase
Manufacturer ABB
Series SlimLine XR Gold
Model XRG1-185/10-3P-EFM
Product ID 1SEP204481R3501
EAN 3800161650475
Product type Switch disconnector fuse with Electronic Fuse Monitoring
Rated operational current 250 A
Rated operational voltage 690 V AC
Rated insulation voltage (Ui) 1000 V
Rated impulse withstand voltage (Uimp) 8 kV
Conditional short-circuit current (Iq) 120 kA
Number of poles 3
Fuse size NH1
Busbar spacing 185 mm
Busbar thickness 10 mm
Cable entry Side
Main connection Bolt connection
Mounting type Busbar mounting
Protection rating IP41 (front)
Dimensions (H × W × D) Approx. 100 × 590 × 335 mm
Weight Approx. 7.12 kg
HS Code 85363090
Country of Manufacture Bulgaria
Poles 3-pole
Device Type Fuse switch disconnector
Fuse Size NH1

Frequently Asked Questions

What is the ABB XRG1-185/10-3P-EFM used for?

It is used to switch, isolate and protect three-phase low-voltage electrical circuits while providing integrated electronic monitoring of fuse status.

What does Electronic Fuse Monitoring (EFM) do?

Electronic Fuse Monitoring detects when a fuse link has operated, helping maintenance personnel quickly identify faults and minimise system downtime.

Which fuse size is compatible?

The XRG1-185/10-3P-EFM is designed for NH1 DIN fuse links.

What busbar system is this switch designed for?

It is designed for busbar systems with 185 mm phase spacing and 10 mm busbar thickness.

What is the rated current?

The ABB XRG1-185/10-3P-EFM has a 250 A rated operational current.
