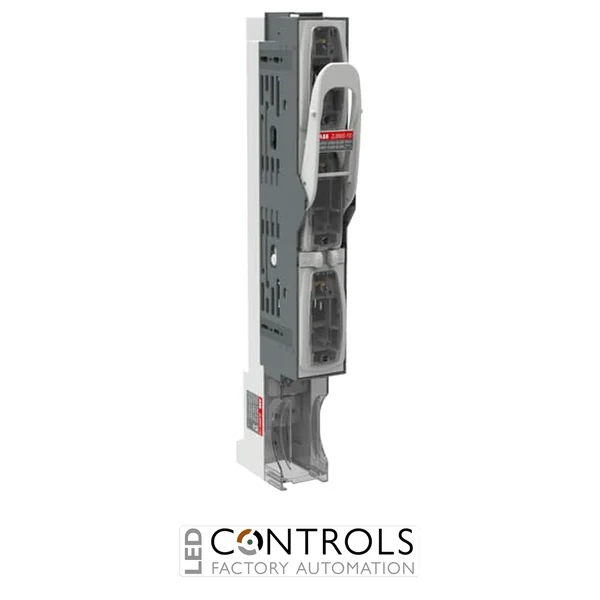

Why Choose the ABB 1SEP620150R3000 ZLBM00-100-3P-M8 InLine II Fuse Switch Disconnector?
The ABB 1SEP620150R3000, also known as the ZLBM00-100-3P-M8, is a high-performance three-pole NH00 fuse switch disconnector from ABB's proven InLine II range. Designed for low-voltage power distribution systems, it provides dependable load switching, visible electrical isolation and fuse protection within a compact busbar-mounted assembly. It is ideally suited to industrial switchboards, commercial distribution boards and OEM panel-building applications.
Designed for 100 mm busbar spacing, the ZLBM00-100-3P-M8 accommodates NH00 fuse links with a rated operational current of 160 A. The compact installation depth of just 121 mm allows efficient use of enclosure space while maintaining safe operation and straightforward maintenance. A cable shroud is supplied as standard for improved operator protection.
Manufactured and type-tested in accordance with IEC/EN 60947-3, the ABB InLine II range is engineered for long service life, high mechanical durability and simple installation. The ZLBM00-100-3P-M8 is compatible with a comprehensive range of ABB accessories, enabling flexible switchboard design and future expansion.
Key Advantages
- Compact three-pole NH00 fuse switch disconnector.
- 160 A rated operational current.
- Designed for 100 mm busbar spacing.
- Supplied complete with protective cable shroud.
- Provides switching, isolation and fuse protection in one device.
- Compatible with the ABB InLine II accessory range.
Key Features
- ABB InLine II series.
- ZLBM00-100-3P-M8 model.
- 160 A rated operational current.
- Three-pole configuration.
- Compatible with NH00 fuse links.
- 100 mm phase spacing.
- Installation depth of 121 mm.
- Three M8 bolt cable connections.
- Busbar-mounted design.
- Cable shroud included.
Compact Protection for Modern Low-Voltage Distribution
Fuse switch disconnectors combine reliable load switching, safe circuit isolation and dependable overcurrent protection using replaceable NH fuse links. Their compact construction makes them ideal for switchboards where installation space is limited while maintaining high levels of electrical performance and operator safety.
ABB's InLine II fuse switch disconnectors have been developed for flexible panel construction and simple installation. Their modular design, broad accessory range and compatibility with standard busbar systems make them a popular choice for industrial, commercial and infrastructure power distribution projects.
Typical Applications
- Industrial switchboards.
- Commercial distribution boards.
- OEM control panels.
- Motor control centres.
- Manufacturing facilities.
- Infrastructure and utility power distribution.
