Why Choose the Partex COL10-5 Copper Tube Ring Terminal?

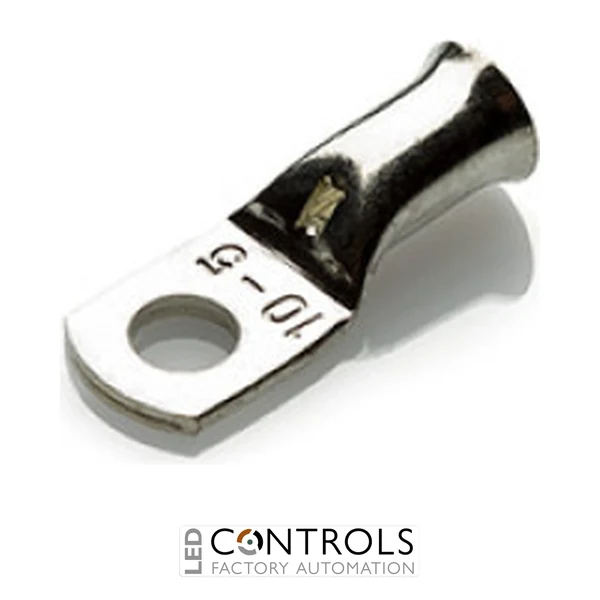

The Partex COL10-5 is a professional 10 mm² copper tube ring terminal designed to provide a secure electrical connection between a compatible conductor and an M5 threaded stud or bolted terminal connection. Featuring a copper tubular barrel and closed-ring mounting eye, this crimp terminal offers a practical cable termination solution for industrial electrical control panels, switchgear assemblies, distribution equipment, machinery and electrical installations.
The Partex COL10-5 copper cable lug combines a conductor entry suitable for a nominal 10 mm² cable with an M5 stud mounting hole. The conductor is secured within the copper tube using an appropriate crimping tool, while the ring eye allows the completed termination to be fastened to a compatible threaded connection point. When correctly selected and installed, this arrangement provides both mechanical conductor retention and a conductive electrical connection.
Supplied in a convenient pack of 100 terminals, the Partex COL10-5 is particularly suitable for electrical contractors, industrial panel builders, switchgear manufacturers and maintenance engineers requiring consistent cable termination components. Its copper construction, defined conductor size and M5 mounting compatibility make it a practical choice for professional electrical wiring, equipment manufacturing, installation and refurbishment projects.
Key Advantages
- Designed for 10 mm² conductors to support correctly sized electrical cable terminations.
- M5 stud compatibility allows connection to suitable M5 threaded terminals and fastening points.
- Copper tube construction provides an electrically conductive connection between the cable and terminal mounting point.
- Closed-ring terminal design helps retain the connection around the stud when correctly secured.
- Crimp termination method supports a mechanically secure and electrically conductive joint when installed using compatible tooling.
- Suitable for bolted electrical connections in control panels, distribution equipment and industrial machinery.
- No soldering required when the terminal is installed using the appropriate crimping procedure.
- Practical for electrical installation and maintenance where a bolted conductor termination is required.
- Pack of 100 terminals provides a convenient quantity for electrical manufacturing, assembly and maintenance projects.
Key Features
- Partex COL10-5 copper tube ring terminal.
- Designed for a nominal conductor cross-sectional area of 10 mm².
- M5 mounting hole for compatible threaded stud connections.
- Copper terminal construction for electrical conductivity.
- Tubular conductor entry for crimp termination.
- Closed-ring mounting eye for secure stud engagement.
- Suitable for use with compatible copper conductors and crimping equipment.
- Designed for bolted or stud-mounted electrical termination points.
- Applicable to electrical distribution, control and industrial equipment wiring.
- Supports professional cable preparation and electrical assembly work.
- Requires appropriate insulation or protective covering where necessary.
- 100 copper ring terminals per pack.
Reliable 10 mm² Copper Ring Terminal Connections for Industrial Electrical Equipment
Copper tube ring terminals are commonly used where electrical conductors must be securely connected to threaded studs, terminal posts or bolted connection points. The Partex COL10-5 10 mm² copper ring terminal provides a conductive interface between the prepared conductor and a compatible M5 mounting stud. Its closed-ring design surrounds the stud, helping retain the terminal in position when the fastening hardware is correctly fitted and tightened.
Correct cable preparation and crimping are essential for a dependable termination. The conductor insulation should be stripped to the appropriate length without damaging the conductor strands. The prepared conductor is then inserted into the copper barrel and compressed using a compatible crimping tool and die suitable for the connector and cable construction. Following crimping, the joint should be inspected for correct conductor engagement, crimp quality and mechanical retention in accordance with the manufacturer's installation guidance.
The completed ring terminal can be positioned over a suitable M5 threaded stud and secured using the appropriate fastening arrangement. Contact surfaces should be suitable for the electrical connection, and the fastening torque should follow the equipment manufacturer's requirements. The Partex COL10-5 must also be selected with regard to conductor material, construction, electrical loading and operating environment. Where additional electrical insulation, strain relief or environmental protection is required, suitable supplementary components should be used. Specific current ratings, voltage suitability and operating temperature limits should be confirmed against the relevant manufacturer documentation.
Typical Applications
- Termination of compatible 10 mm² electrical conductors.
- Connections to suitable M5 threaded studs and terminal points.
- Industrial electrical control panel wiring.
- Switchgear and electrical distribution equipment assembly.
- Industrial machinery electrical connections.
- Motor control and automation equipment wiring.
- OEM electrical equipment manufacturing.
- Electrical cabinet and enclosure wiring installations.
- Electrical equipment maintenance, repair and refurbishment.
- Industrial cable harness assembly and conductor preparation.
