Why Choose the Partex COL6-5 Copper Tube Ring Terminal?

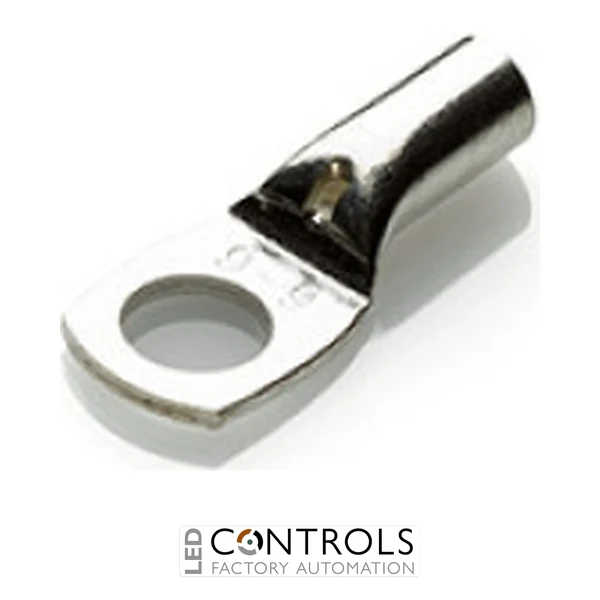

The Partex COL6-5 is a reliable copper tube ring terminal designed for secure electrical cable termination in industrial, commercial and electrical installation applications. Suitable for 6 mm² conductors and featuring an M5 stud connection, this terminal provides a practical solution for connecting electrical cables to equipment terminals, busbars and bolted electrical connections.
Manufactured from copper, the COL6-5 is designed to provide effective electrical conductivity and a secure mechanical connection when installed using appropriate crimping tools. Its tubular barrel accommodates the electrical conductor, while the ring-shaped connection end allows the terminal to be securely fastened beneath a compatible screw or stud.
Designed for 6 mm² electrical cables and M5 mounting studs, the Partex COL6-5 is supplied in a convenient pack of 100 terminals. This makes it suitable for electrical contractors, panel builders, maintenance engineers and industrial installers requiring consistent cable termination across multiple electrical connections.
Key Advantages
- Reliable copper tube ring terminal for secure electrical cable termination.
- 6 mm² conductor compatibility for electrical wiring applications.
- M5 stud connection for bolted electrical terminals.
- Copper construction provides excellent electrical conductivity.
- Ring-shaped connection helps maintain secure fastening when correctly installed.
- Designed for crimp termination using suitable cable crimping tools.
- Suitable for electrical distribution boards, control panels and industrial equipment.
- Supplied in a pack of 100 terminals for efficient installation and maintenance work.
Key Features
- Partex COL copper tube terminal range.
- 6 mm² nominal conductor cross-section.
- M5 stud size.
- Copper terminal construction.
- Ring-type connection for screw and stud fastening.
- Tubular conductor barrel for crimp termination.
- Designed for use with compatible copper conductors.
- Suitable for electrical panel building and industrial wiring.
- 100 terminals per pack.
Secure Electrical Connections for Industrial Wiring
Copper tube ring terminals are commonly used to terminate electrical conductors where a reliable bolted connection is required. The Partex COL6-5 is designed to connect a 6 mm² copper conductor to an electrical terminal fitted with an M5 stud or compatible fastening.
During installation, the prepared conductor is inserted into the tubular barrel and secured using an appropriately sized crimping tool and die. A correctly formed crimp provides mechanical retention and electrical contact between the conductor and terminal. The ring end can then be fastened to the equipment connection point using the specified tightening procedure.
The COL6-5 provides a practical cable termination solution for electrical contractors, panel manufacturers and maintenance personnel. Correct conductor preparation, compatible crimping equipment and appropriate fastening torque are essential for achieving a dependable electrical connection.
Typical Applications
- Electrical distribution boards and switchgear assemblies.
- Industrial control panels and electrical cabinets.
- Electrical equipment terminal connections.
- Busbar and bolted terminal connections.
- Machinery wiring and industrial automation systems.
- Power distribution and electrical installation projects.
- Equipment maintenance and cable replacement.
- Panel building and electrical assembly production.
- Commercial and industrial electrical installations.
