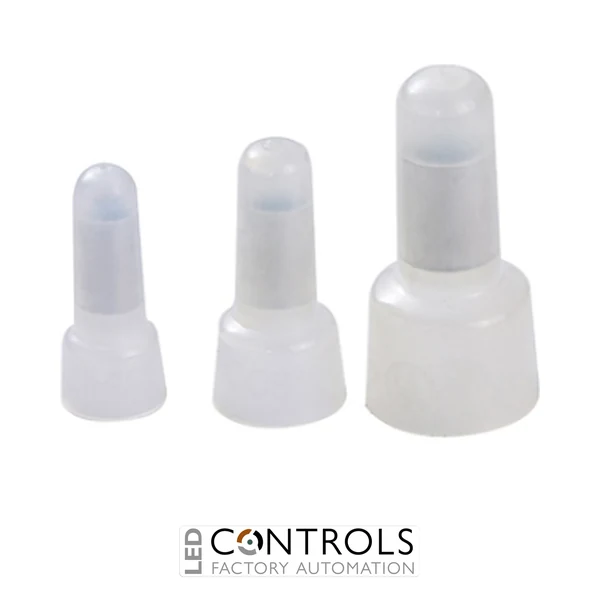

Why Choose the Partex CE0515 Clear Closed End Connector?
The Partex CE0515 is a high-quality clear insulated closed end crimp connector designed to join two or more electrical conductors in a secure, permanent and solderless connection. Suitable for a specified 0.5–1.5 mm² cable size range, this connector provides a convenient termination solution for industrial control panels, electrical equipment, wiring harnesses and general electrical installations.
Manufactured with a tin-plated copper contact and durable Polyamide 66 (PA66) nylon insulation, the CE0515 combines electrical conductivity with an insulated closed-end construction. Its flared entry makes conductor insertion easier and helps prevent individual wire strands from folding backwards during assembly. The clear insulation provides a practical finish for inspecting the connector during installation.
Designed for use with a suitable crimping tool, including the recommended Partex CT-HSB, the CE0515 supports efficient wire joining without soldering. With a specified 600 V maximum voltage, an operating temperature range of -25 °C to +95 °C and UL 94V-2 flame-retardant insulation, it is suitable for a wide variety of compatible electrical applications. Supplied in a convenient pack of 100 pieces, it is ideal for electrical installers, panel builders and maintenance engineers.
Key Advantages
- Closed-end connection design enables two or more compatible conductors to be joined in a single crimp termination.
- 0.5–1.5 mm² cable size range supports smaller electrical wiring applications.
- Tin-plated copper contact provides an electrically conductive crimp connection.
- PA66 nylon insulation provides an insulated housing around the terminated conductors.
- Clear insulation supports convenient visual inspection during installation.
- Flared entry helps guide conductors into the connector and reduces the risk of folded-back wire strands.
- 600 V maximum voltage rating for applications within the manufacturer's specified limits.
- -25 °C to +95 °C temperature range supports a variety of installation environments.
- UL 94V-2 flame-retardant insulation provides a specified material flammability classification.
- Solderless crimp installation supports efficient electrical assembly.
- Pack of 100 connectors is convenient for repetitive installation and maintenance work.
Key Features
- Partex CE0515 closed end crimp connector.
- Clear insulated construction.
- 0.5–1.5 mm² specified cable size range.
- Designed for joining two or more compatible electrical conductors.
- High-purity tin-plated copper contact.
- Polyamide 66 (PA66) nylon body.
- UL 94V-2 flame-retardant insulation classification.
- Flared conductor entry for easier cable insertion.
- 600 V maximum voltage.
- -25 °C to +95 °C operating temperature range.
- Designed for permanent, solderless crimp connections.
- Partex CT-HSB recommended crimping tool.
- Suitable for industrial electrical wiring and equipment assembly.
- 100 pieces per pack.
Reliable Solderless Wire Joining with Closed End Crimp Connectors
The Partex CE0515 provides a practical method of joining multiple electrical conductors without soldering. The conductors are stripped to an appropriate length and inserted together into the connector's flared entry. A compatible crimping tool then compresses the tin-plated copper contact around the conductors to create a secure mechanical and electrical connection. The closed-end construction encloses the conductor ends within the insulated connector body.
For dependable performance, the installer should ensure that the conductors are suitable for the connector's specified 0.5–1.5 mm² cable size range, that the combined conductor bundle fits correctly and that the crimp is made using the recommended tooling and procedure. The PA66 insulation, 600 V maximum rating and specified temperature range support use in compatible electrical assemblies, subject to the requirements of the complete installation.
Typical Applications
- Joining compatible electrical conductors in industrial control panels.
- Electrical cabinet and control equipment wiring.
- Industrial machinery and automation wiring assemblies.
- Electrical wiring harness manufacture and repair.
- Electrical and electronic equipment assembly.
- Auxiliary control and signalling circuit connections.
- Commercial and industrial electrical maintenance.
- Appliance and equipment wiring where closed-end crimp connections are appropriate.
- Permanent solderless wire splicing in compatible electrical installations.
