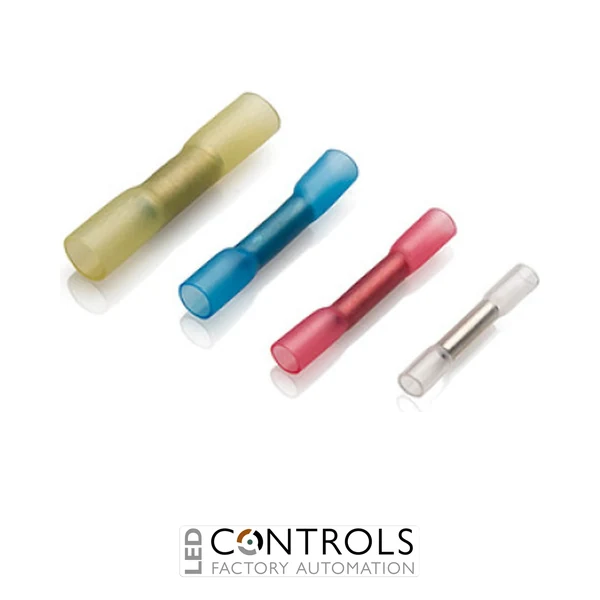

Why Choose the Partex HSB-0.5 Adhesive Lined Heatshrink Butt Connectors?
The Partex HSB-0.5 heatshrink butt connectors provide a practical solution for joining electrical wires while offering additional insulation and protection around the connection. Manufactured by Partex, these white adhesive lined heatshrink butt connectors combine a wire-joining connector with a heat-activated insulating sleeve, making them suitable for electrical installation, wiring repairs, cable harness assembly and maintenance applications.
Featuring an adhesive lined heatshrink sleeve, each connector is designed to shrink around the insulated wires when suitable heat is applied. The internal adhesive helps form a seal around the cable entry points, reducing the opportunity for moisture and contaminants to enter the connection when correctly installed. This combination makes the HSB-0.5 a convenient choice for applications requiring an insulated, protected wire joint.
The white colour provides a distinctive finish for identification and organisation within wiring assemblies. Supplied in a convenient pack of 100 connectors, the Partex HSB-0.5 offers a practical solution for electrical contractors, control panel builders, OEM manufacturers, automotive wiring specialists and industrial maintenance teams undertaking repeated wire connection and repair tasks.
Key Advantages
- Heatshrink butt connector design combines wire joining and insulation in one convenient component.
- Adhesive lined sleeve helps seal the cable entry points when correctly heated and installed.
- Crimp connection provides a practical method of joining compatible electrical conductors.
- Heat-activated insulation shrinks around the wire insulation to create a close-fitting protective covering.
- White finish provides a distinctive appearance for wiring identification and organisation.
- Pack of 100 offers a convenient quantity for electrical installation, manufacturing and maintenance work.
- Helps protect completed connections against moisture ingress, contamination and general handling damage when properly installed.
Key Features
- Partex HSB-0.5 heatshrink butt connectors.
- Adhesive lined heatshrink insulation.
- White colour for easy visual distinction.
- Butt splice configuration for joining two compatible wire ends.
- Crimp and heat installation for a protected electrical connection.
- Heat-activated adhesive helps seal around the wire insulation.
- 100 connectors per pack.
- Suitable for compatible electrical wiring, cable harness and maintenance applications.
- Designed to provide insulation and additional protection around the completed splice.
Reliable Wire Joining with Adhesive Lined Heatshrink Protection
The Partex HSB-0.5 adhesive lined butt connectors are designed to simplify the process of joining compatible electrical wires. The butt splice configuration allows two prepared wire ends to be inserted from opposite sides of the connector and secured using a suitable crimping tool. Once the electrical connection has been formed, controlled heat is applied to shrink the insulating sleeve around the wires.
As the heatshrink sleeve contracts, the internal adhesive lining activates and helps form a protective seal around the wire insulation. This provides an additional barrier against moisture and contaminants at the cable entry points, making adhesive lined heatshrink connectors useful where connection protection is important. Effective sealing depends on correct wire preparation, conductor compatibility, crimping and heat application.
The white finish allows the HSB-0.5 connectors to be distinguished from other connector colours within a wiring assembly. Their compact butt splice arrangement also supports neat cable repairs and electrical harness construction. Supplied in a pack of 100, these connectors are a practical option for repeated installation and maintenance work across industrial automation, machinery wiring and electrical equipment assembly.
How to Install Partex HSB-0.5 Heatshrink Butt Connectors
- Prepare the wires: Ensure the circuit is isolated and strip the insulation from the ends of the compatible conductors to the appropriate length.
- Insert the conductors: Position the prepared wire ends into opposite sides of the butt connector.
- Crimp the connection: Use a suitable crimping tool and die matched to the connector and conductor size.
- Inspect the crimp: Check that the conductors are securely retained and the connection has been correctly formed.
- Apply controlled heat: Use an appropriate heat source to shrink the insulating sleeve evenly around the wire insulation.
- Allow to cool: Let the connection cool before handling or placing it under mechanical strain, then inspect the finished sleeve and adhesive seal.
Important: Confirm the connector's specified conductor size range, electrical ratings and installation requirements before use. The model designation alone should not be used to determine conductor compatibility.
Typical Applications
- Electrical wire joining and insulated butt splice connections.
- Industrial control panel wiring and maintenance.
- Machinery wiring repairs and electrical equipment assembly.
- Automotive and vehicle wiring harness repairs where suitable for the application.
- OEM cable harness manufacturing and assembly.
- Industrial automation and control system wiring.
- Maintenance of compatible electrical cables and conductors.
- Applications requiring additional moisture protection around properly installed wire joints.
