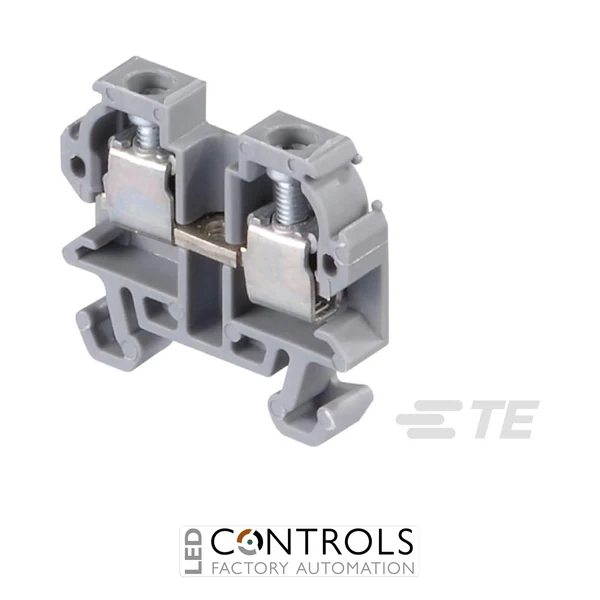

TE Connectivity 1SNA115510R1600 DR1.5/5 is a compact two-position 1.5 mm² miniature feed-through DIN-rail terminal block with screw connections, rated at 20 A and 250 V for industrial control and instrumentation wiring.
£1.69
The TE Connectivity 1SNA115510R1600, also identified as DR1.5/5, is a compact miniature feed-through DIN-rail terminal block designed for reliable conductor connections in industrial control panels, instrumentation equipment and automation systems. Part of the established TE Connectivity / Entrelec SNA series, it combines a narrow terminal profile with proven screw-clamp connection technology.
The DR1.5/5 provides two connection positions on a single level, allowing conductors to be securely interconnected through a compact feed-through terminal. Its screw connection provides dependable conductor retention and straightforward installation, making the terminal suitable for high-density wiring assemblies where accessibility and long-term connection reliability are important.
Designed for conductors with a nominal cross-sectional area of 1.5 mm², the 1SNA115510R1600 supports wiring from 28–12 AWG. The terminal has a rated current of 20 A and a rated voltage of 250 V, while its compact 5 mm spacing helps maximise available mounting space in industrial electrical cabinets.
Miniature feed-through terminal blocks provide an efficient way to interconnect field wiring and internal panel circuits where installation space is limited. The DR1.5/5 combines a compact footprint with two screw-connected positions, providing an organised and serviceable connection point for industrial electrical wiring.
The screw-clamp connection provides secure conductor retention and reliable electrical contact, while the compact 5 mm terminal spacing allows multiple circuits to be installed efficiently along a DIN rail. This makes the 1SNA115510R1600 particularly suitable for control, signalling and instrumentation applications with high wiring densities.
| Manufacturer | TE Connectivity / Entrelec |
|---|---|
| Series | SNA |
| Model | DR1.5/5 |
| Manufacturer part number | 1SNA115510R1600 |
| Product type | Miniature feed-through DIN-rail terminal block |
| Number of positions | 2 |
| Number of levels | 1 |
| Connection method | Screw clamp |
| Nominal conductor cross-section | 1.5 mm² |
| Rigid conductor range | approximately 0.2–2.5 mm² |
| Fine-stranded conductor range | approximately 0.22–1.5 mm² |
| Wire size | 28–12 AWG |
| Rated current | 20 A |
| Rated voltage | 250 V |
| Terminal spacing | 5 mm |
| Mounting type | DIN rail |
| Colour | Grey |
| Insulating material | Thermoplastic |
| Flammability rating | UL 94 V-0 |
| EAN | 3472591155105 |
The 1SNA115510R1600 is a miniature feed-through terminal block used to securely interconnect conductors in industrial control panels, automation equipment, instrumentation and machinery.
The DR1.5/5 has a nominal conductor cross-section of 1.5 mm² and supports wiring from approximately 28–12 AWG.
The terminal block has a rated current of 20 A.
The DR1.5/5 has a rated voltage of 250 V.
The terminal uses dependable screw-clamp connections and provides two connection positions on a single level for feed-through wiring.
TE Connectivity and Entrelec SNA terminal blocks are widely used in industrial control and automation installations where compact dimensions, secure conductor termination and dependable electrical connectivity are required.
