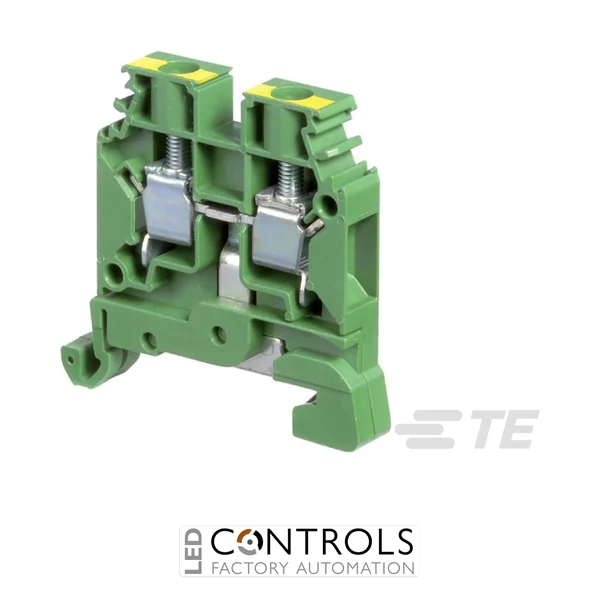

TE Connectivity D6/8.P 1SNA165830R2100 is a 6 mm² green-and-yellow ENTRELEC SNA screw-clamp ground terminal block for reliable protective-earth connections on TH35 DIN rails.
£5.47
The TE Connectivity D6/8.P 1SNA165830R2100 is a robust DIN rail ground terminal block designed to provide reliable protective conductor connections in industrial electrical panels and control systems. Part of the established ENTRELEC SNA series, this green-and-yellow terminal block uses screw-clamp conductor termination together with a secure electrical and mechanical connection to the mounting rail.
Designed for a nominal conductor cross-section of 6 mm², the D6/8.P provides dependable grounding while occupying only 8 mm of DIN rail width. Its polyamide 6.6 housing, screw terminal connection and compatibility with standard TH35 DIN rails make it well suited to industrial control cabinets, machinery and power distribution assemblies.
The D6/8.P accommodates rigid stranded conductors from 0.2–10 mm² and flexible conductors from 0.22–6 mm². It is designed for mounting on TH35-7.5 and TH35-15 DIN rails and provides a short-time withstand current rating of 720 A for 1 second, supporting reliable protective-earth connections in demanding electrical installations.
Ground terminal blocks provide a controlled connection between protective conductors and the DIN rail, helping establish an effective grounding path within electrical control and distribution equipment. The D6/8.P combines screw-clamp conductor termination with a reliable connection to the mounting rail for secure electrical and mechanical performance.
The ENTRELEC SNA series is designed for efficient industrial panel wiring, with compact dimensions and standardised DIN rail mounting simplifying installation and maintenance. The distinctive green-and-yellow housing of the D6/8.P also enables rapid visual identification of protective-earth connections during assembly, commissioning and servicing.
| Manufacturer | TE Connectivity |
|---|---|
| Brand / range | ENTRELEC |
| Series | SNA |
| Model | D6/8.P |
| Part number | 1SNA165830R2100 |
| Product type | Ground / protective-earth screw-clamp terminal block |
| Block function | Ground |
| Rated cross-section | 6 mm² |
| Wire size | Up to 8 AWG |
| Rigid stranded conductor range | 0.2–10 mm² |
| Flexible conductor range | 0.22–6 mm² |
| Short-time withstand current (1 second) | 720 A |
| Dielectric withstand voltage | 3500 V maximum |
| Product spacing / width | 8 mm |
| Height | 49.7 mm |
| Length / depth | 41 mm |
| Wire stripping length | 12 mm |
| Tightening torque | 0.8 Nm |
| Termination method | Screw terminal |
| Mounting type | DIN rail |
| DIN rail compatibility | TH35-7.5 / TH35-15 |
| Housing material | Polyamide 6.6 |
| Colour | Green / yellow |
| UL flammability rating | UL 94V-0 |
| Operating temperature range | -55–110 °C |
| Installation temperature range | -5–40 °C |
| Product weight | 16 g |
The D6/8.P is a protective-earth ground terminal block used to connect grounding conductors to the DIN rail in industrial electrical panels and control systems.
The terminal block has a rated cross-section of 6 mm², accepting rigid stranded conductors from 0.2–10 mm² and flexible conductors from 0.22–6 mm².
The D6/8.P is designed for mounting on standard TH35-7.5 and TH35-15 DIN rails.
The green-and-yellow colour identifies the terminal as a protective-earth or grounding terminal, allowing earth connections to be quickly distinguished from standard circuit terminals.
The D6/8.P has a compact product spacing of 8 mm, helping conserve DIN rail space inside electrical cabinets.
TE Connectivity ENTRELEC SNA terminal blocks are widely used in industrial control panels, machinery and electrical distribution equipment where dependable DIN rail connections, efficient installation and long-term wiring reliability are required.
