Why Choose the TE Connectivity D35/27.FF Power Terminal Block?

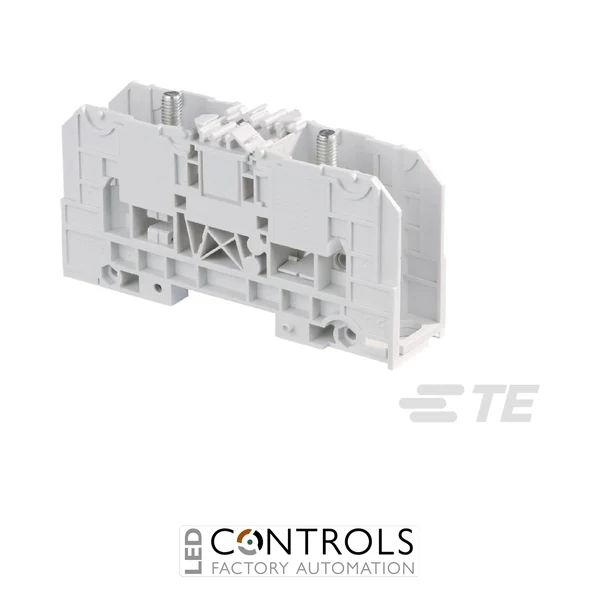

The TE Connectivity D35/27.FF is a robust feed-through power terminal block designed for reliable high-current electrical connections in industrial control panels, power distribution systems and automation equipment. Part of the established ENTRELEC SNA terminal block series, it provides a secure and space-efficient solution for connecting large conductors on DIN rail installations.
The D35/27.FF features two M6 stud connections with a 27 mm spacing and accommodates conductors up to 35 mm² for the main connection. Its stud-based connection system provides a secure method of terminating higher-current conductors, while the grey polyamide insulating body provides electrical separation within the terminal assembly.
With a maximum current rating of 125 A and an operating voltage of up to 600 V AC, the 1SNA190001R2000 is suitable for demanding industrial power distribution applications. The terminal block supports TH35-7.5 and TH35-15 DIN rail mounting and is supplied without a protective cover.
Key Advantages
- Robust feed-through power terminal block for industrial electrical installations.
- 125 A maximum current rating for high-current power distribution.
- 600 V AC operating voltage for industrial electrical systems.
- 35 mm² conductor capacity for larger power cables.
- Dual M6 stud connections provide secure conductor termination.
- 27 mm terminal spacing provides a practical modular installation.
- Compatible with TH35-7.5 and TH35-15 DIN rails.
Key Features
- TE Connectivity ENTRELEC SNA series.
- D35/27.FF feed-through power terminal block.
- 2-position single-level configuration.
- 27 mm terminal spacing.
- 2 × M6 stud connections.
- 125 A maximum current rating.
- 600 V AC operating voltage.
- Accommodates conductors up to 35 mm².
- Grey polyamide insulating body with UL 94 V-0 flammability rating.
- Designed for TH35-7.5 and TH35-15 DIN rail mounting.
Reliable High-Current Connections for Industrial Panels
Power terminal blocks provide a secure and organised method of connecting larger conductors within industrial electrical installations. The D35/27.FF uses two M6 stud connections to provide a robust feed-through connection while maintaining electrical separation between adjacent terminal blocks.
The terminal block forms part of the ENTRELEC SNA modular system and can be mounted on TH35-7.5 or TH35-15 DIN rails. Its 35 mm² conductor capacity, 125 A current rating and wide operating temperature range make it suitable for industrial power distribution, machinery and control panel applications.
Typical Applications
- Industrial electrical control panels.
- High-current power distribution systems.
- Machine control cabinets.
- Industrial automation equipment.
- Power supply and feed-through applications.
- Electrical panel building and maintenance.
