Why Choose the TE Connectivity D70/32.FF Power Terminal Block?

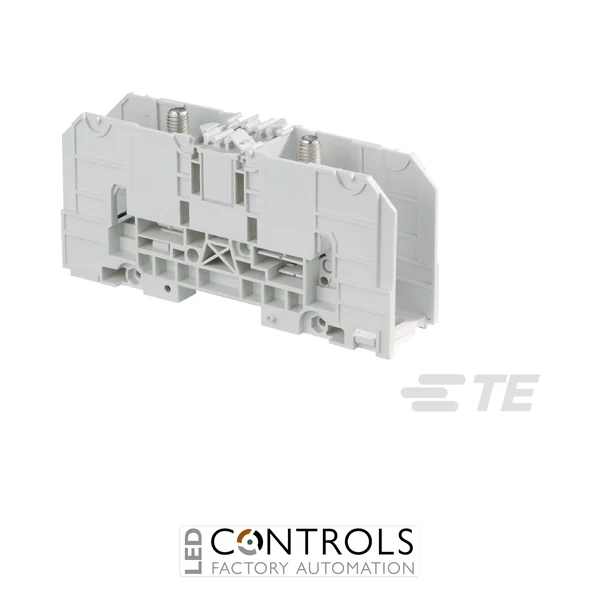

The TE Connectivity D70/32.FF is a robust studded power terminal block designed to provide reliable high-current feed-through connections in industrial control panels, switchgear assemblies and electrical distribution systems. Part of the established ENTRELEC SNA terminal block range, it provides a secure solution for terminating large conductors where high current capacity and dependable mechanical connections are required.
The D70/32.FF features two M8 stud connections with a 32 mm spacing and accommodates conductors from 6 to 70 mm². The stud connection system is suitable for cable lugs and provides a mechanically secure termination for large cross-section power conductors.
With a 192 A rated current and 1000 V rated voltage, the 1SNA190002R2100 is suited to demanding industrial power distribution applications. Its polyamide insulating body, DIN rail mounting and wide -55 to 110 °C operating temperature range make it suitable for a broad range of electrical panel installations.
Key Advantages
- Robust studded power terminal block for high-current industrial applications.
- 192 A rated current for demanding power distribution systems.
- 1000 V rated voltage for high-voltage industrial electrical installations.
- 70 mm² maximum conductor capacity for large power cables.
- Dual M8 stud connections provide secure cable-lug termination.
- 32 mm terminal spacing for compatible ENTRELEC installations.
- DIN rail mounting on TH35-7.5 and TH35-15 rails according to IEC 60715.
- Polyamide insulation with a UL 94 V-0 flammability rating.
Key Features
- TE Connectivity ENTRELEC SNA series.
- D70/32.FF studded power terminal block.
- 2 × M8 stud connections.
- 32 mm terminal spacing.
- 192 A rated current.
- 1000 V rated voltage.
- 6–70 mm² conductor capacity.
- 8000 A rated short-time withstand current for 1 s.
- Polyamide insulating housing.
- TH35-7.5 and TH35-15 DIN rail mounting.
Reliable High-Current Connections for Industrial Panels
Studded power terminal blocks provide a secure method of terminating large conductors using cable lugs. The D70/32.FF uses dual M8 studs to create a robust feed-through connection, making it suitable for high-current electrical distribution where a mechanically secure connection is required.
The terminal block forms part of the modular ENTRELEC SNA system and can be mounted on TH35-7.5 or TH35-15 DIN rails. Its 70 mm² conductor capacity, 192 A rated current and 1000 V rated voltage make it suitable for industrial power distribution, switchgear and control panel applications.
Typical Applications
- Industrial electrical control panels.
- High-current power distribution systems.
- Switchgear and electrical cabinets.
- Machine control cabinets.
- Industrial automation equipment.
- Power supply and feed-through applications.
