Why Choose the TE Connectivity 1SNA190003R2200 D120/42.FF Power Terminal?

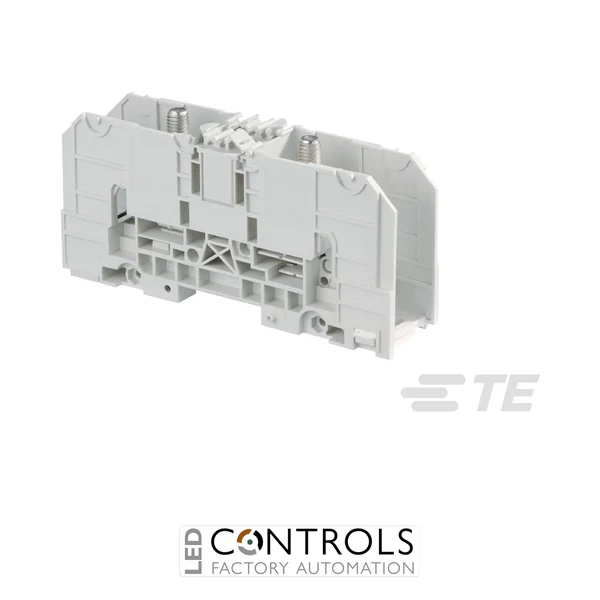

The TE Connectivity 1SNA190003R2200 is a heavy-duty D120/42.FF feed-through power terminal block designed for high-current electrical distribution in industrial control panels, switchgear and power systems. Part of the established TE Connectivity ENTRELEC SNA terminal block range, it provides a robust connection point for large conductors where dependable power distribution is essential.
Designed for conductors up to 120 mm², the D120/42.FF combines a 269 A maximum contact current rating with an operating voltage of 600 V AC. Its two-position feed-through configuration provides a straightforward electrical path through the terminal, while the 42 mm spacing accommodates the substantial connection hardware required for high-current industrial wiring.
The 1SNA190003R2200 mounts directly onto standard TH35-7.5 or TH35-15 DIN rail and is supplied in grey for conventional panel identification. With an operating temperature range of -55–110 °C, it is engineered for demanding industrial environments and is particularly suitable for power distribution, machinery and high-current control cabinet applications.
Key Advantages
- Heavy-duty feed-through power terminal for conductors up to 120 mm².
- 269 A maximum contact current rating for high-current applications.
- 600 V AC operating voltage for industrial electrical systems.
- Two-position design provides straightforward feed-through power distribution.
- Compatible with standard TH35-7.5 and TH35-15 DIN rails.
- Wide -55–110 °C operating temperature range for demanding environments.
Key Features
- TE Connectivity ENTRELEC SNA series.
- D120/42.FF feed-through terminal block.
- 120 mm² maximum conductor size.
- 269 A maximum contact current rating.
- 600 V AC operating voltage.
- 2-position feed-through configuration.
- 42 mm product spacing.
- DIN-rail mounting for industrial panel installations.
Reliable High-Current Power Distribution
High-current terminal blocks provide secure connection points between large conductors in electrical distribution systems. The D120/42.FF is designed to handle substantially larger cable sizes and current levels than conventional control terminals, making it suitable for incoming supplies, distribution circuits and other high-power connections within industrial equipment.
The TE Connectivity ENTRELEC D120/42.FF combines high-current capability with standard DIN-rail installation, allowing it to be incorporated into modular electrical panels alongside other terminal and distribution components. Its feed-through configuration provides a direct connection between two positions while maintaining an organised and serviceable panel layout.
Typical Applications
- Industrial power distribution panels.
- High-current control cabinet connections.
- Switchgear and electrical distribution systems.
- Industrial machinery and production equipment.
- Incoming and outgoing power connections.
- OEM electrical equipment manufacturing.
- DIN-rail-mounted industrial power assemblies.
