Why Choose the TE Connectivity 1SNA190007R2600 D70/32.AF.V0 Power Terminal?

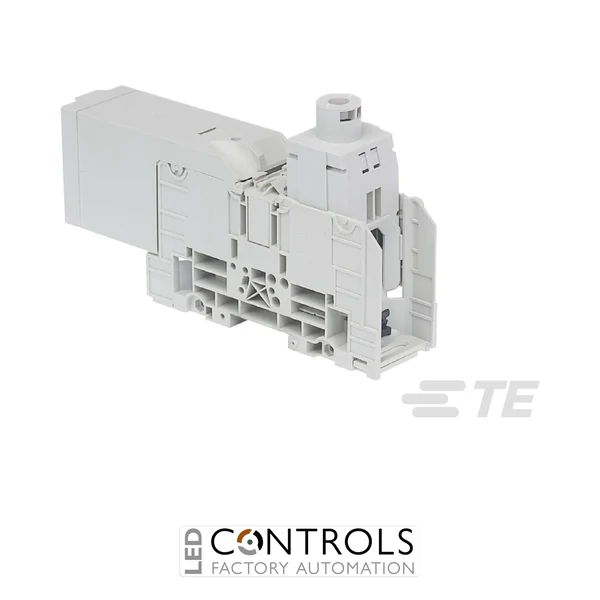

The TE Connectivity 1SNA190007R2600, identified as the D70/32.AF.V0, is a high-current 70 mm² feed-through power terminal block from the Entrelec SNA range. It combines an M8 stud connection with a wire-clamp connection, providing a robust interface for power conductors in industrial distribution, control and machinery applications.
Designed with a 32 mm pitch, the D70/32.AF provides a rated current of 192 A and rated voltage of 1000 V. Its conductor capacity accommodates rigid conductors up to 95 mm² under IEC/NFC configurations and flexible conductors up to 70 mm², making it suitable for demanding high-current connections.
The terminal features a grey polyamide insulating body, IP20 protection covers and a two-position holding foot for convenient DIN rail mounting. It can be installed on TH35-7.5 or TH35-15 rail and supports lug mounting in accordance with NF C 20-130 and DIN 46234.
Key Advantages
- 192 A rated current for demanding industrial power circuits.
- 1000 V rated voltage for high-voltage distribution applications.
- 70 mm² rated cross-section with substantial conductor capacity.
- Combines one M8 stud and one wire-clamp connection.
- IP20 protection covers support safer installed assemblies.
- Two-position holding foot simplifies mounting on standard DIN rail.
Key Features
- TE Connectivity Entrelec SNA power terminal block.
- D70/32.AF.V0 product designation.
- Single-level feed-through configuration.
- 32 mm terminal pitch.
- M8 stud plus wire-clamp connection arrangement.
- Grey polyamide insulating body.
- UL94 V-0 flammability classification.
- Operating temperature range from -55 °C to +110 °C.
- Rail or base mounting capability.
Robust High-Current Power Distribution
The D70/32.AF is designed for applications where substantial conductors must be terminated securely within a modular electrical assembly. Its combination of an M8 stud and wire-clamp connection provides flexibility for integrating cable lugs and stripped conductors while maintaining a dependable feed-through electrical path.
With a 192 A rated current, 1000 V rating and broad conductor capacity, the 1SNA190007R2600 is suited to power distribution circuits in industrial equipment. The two-position DIN rail holding foot, IP20 covers and multiple marking options further support practical installation and maintenance.
Typical Applications
- Industrial power distribution panels.
- High-current control and switchgear assemblies.
- Machine-building electrical systems.
- Motor and drive power distribution.
- Industrial automation cabinets.
- DIN rail power distribution installations.
