Why Choose the TE Connectivity 1SNA190008R0700 D120/42.AF Power Terminal?

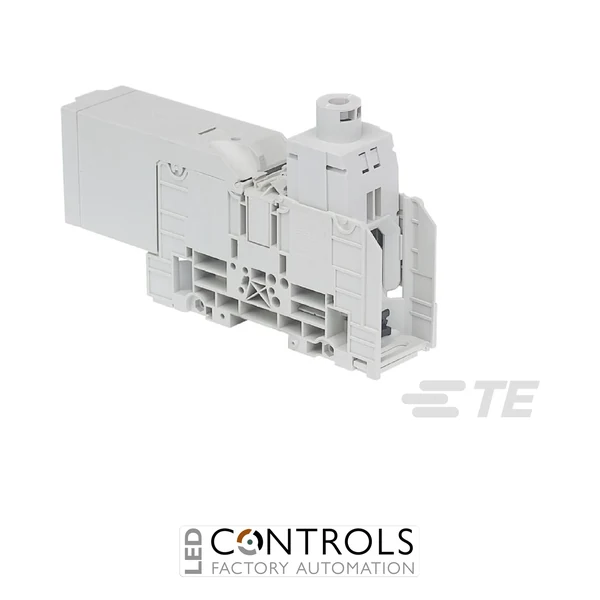

The TE Connectivity 1SNA190008R0700, identified as the D120/42.AF, is a heavy-duty 120 mm² feed-through power terminal block from the Entrelec SNA range. Designed for high-current industrial connections, it combines an M10 stud connection with a screw wire-clamp connection to provide a robust interface between large power conductors.
The D120/42.AF has a 42 mm pitch and a maximum contact current rating of 269 A. Its conductor capacity includes rigid solid or stranded conductors from 6 mm² to 150 mm² and flexible conductors from 6 mm² to 120 mm², making it suitable for demanding power distribution and machine-building installations.
Supplied with protection covers, the terminal provides IP20 protection when correctly assembled. Its two-position holding foot supports convenient mounting on standard TH35 DIN rail, while provision for rail or base mounting and compatible lug connections gives panel builders flexibility when constructing high-current electrical systems.
Key Advantages
- 120 mm² power terminal designed for high-current industrial connections.
- 269 A maximum contact current rating for demanding power circuits.
- Combines an M10 stud and screw wire clamp in one feed-through terminal.
- 42 mm pitch provides appropriate spacing for large conductors.
- IP20 protection covers support safer installed assemblies.
- Two-position DIN rail holding foot simplifies installation and positioning.
Key Features
- TE Connectivity Entrelec SNA power terminal block.
- D120/42.AF product designation.
- Single-level feed-through configuration.
- 120 mm² nominal wire size.
- 42 mm terminal spacing.
- 1 x M10 stud + 1 x wire-clamp connection arrangement.
- Grey terminal body.
- IP20 protection cover.
- DIN rail or base mounting capability.
- Operating temperature range of -55 °C to +110 °C.
Heavy-Duty Power Distribution Connectivity
Large-conductor power circuits require terminal connections capable of providing secure mechanical retention and dependable electrical continuity. The D120/42.AF combines an M10 stud interface with a high-capacity screw clamp, allowing different conductor termination methods to be integrated through one feed-through terminal.
Its conductor capacity, 269 A maximum contact current rating and protective covers make the 1SNA190008R0700 suitable for substantial industrial power connections. DIN rail and base mounting options also provide installation flexibility for switchboards, machinery and automation equipment.
Typical Applications
- Industrial power distribution panels.
- High-current switchgear assemblies.
- Machine-building electrical systems.
- Motor and drive power circuits.
- Industrial automation cabinets.
- Large-conductor DIN rail terminal installations.
