Why Choose the TE Connectivity 1SNA190009R0000 D185/55.AF Power Terminal?

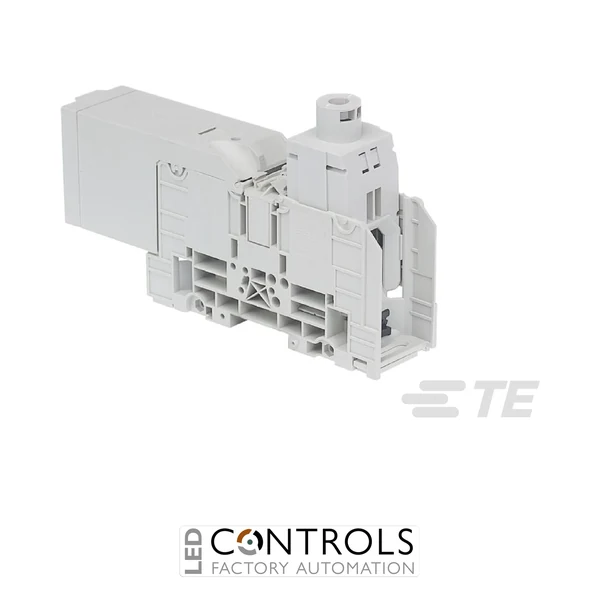

The TE Connectivity 1SNA190009R0000 is a D185/55.AF high-current feed-through power terminal block designed for demanding industrial power distribution applications. Part of the established Entrelec SNA terminal block range, it combines a screw-clamp connection with an M12 stud connection to provide a robust transition point for large conductors and cable lugs.
Designed around a rated cross-section of 185 mm², the D185/55.AF supports rigid conductors up to 240 mm² on its screw-clamp connection and is rated for a main-circuit current of 353 A. Its 55 mm spacing and substantial construction make it suitable for high-current circuits where secure conductor termination and dependable mechanical retention are essential.
The terminal features IP20 protection covers and can be mounted on compatible DIN rail or base-mounted arrangements. A two-position holding foot assists DIN rail installation, while the stud connection supports cable-lug mounting in accordance with established industrial connection practices, making the 1SNA190009R0000 well suited to switchgear, machinery and power distribution assemblies.
Key Advantages
- 353 A main-circuit rating for demanding industrial power connections.
- Rated cross-section of 185 mm² with screw-clamp capacity up to 240 mm² for rigid conductors.
- Combines an M12 stud connection and screw-clamp connection in one feed-through terminal.
- IP20 protection covers provide additional protection around the power connection.
- Supports both DIN rail and base mounting for flexible panel construction.
- Wide operating temperature range of -55 to +110 °C for demanding industrial environments.
Key Features
- TE Connectivity / Entrelec D185/55.AF power terminal block.
- High-current feed-through terminal configuration.
- 185 mm² rated cross-section.
- 500 kcmil conductor capability.
- 55 mm terminal spacing.
- 353 A maximum contact/main-circuit current rating.
- One M12 stud plus one wire-clamp connection with protective covers.
- Two-position holding foot for convenient DIN rail installation.
Reliable High-Current Power Distribution
Large-conductor circuits require terminal connections capable of carrying substantial current while maintaining secure mechanical contact. The D185/55.AF combines a high-capacity screw clamp with an M12 stud, providing a practical feed-through connection between large conductors and cable-lug terminated power wiring. Its 353 A rating makes it particularly suitable for high-current distribution within industrial equipment.
Installation flexibility is enhanced by the ability to use compatible DIN rails or base mounting, while the two-position holding foot assists assembly on the rail. Protective covers provide IP20 protection around the terminal connection, and the broad conductor capacity enables the same terminal family to accommodate a variety of heavy-duty power wiring requirements.
Typical Applications
- Industrial power distribution panels.
- High-current switchgear assemblies.
- Motor control and machinery power circuits.
- Industrial automation power distribution.
- Large-conductor DIN rail terminal assemblies.
- OEM electrical equipment and control cabinets.
