Why Choose the TE Connectivity M6/8 V0 Beige 1SNA195118R1200 Terminal Block?

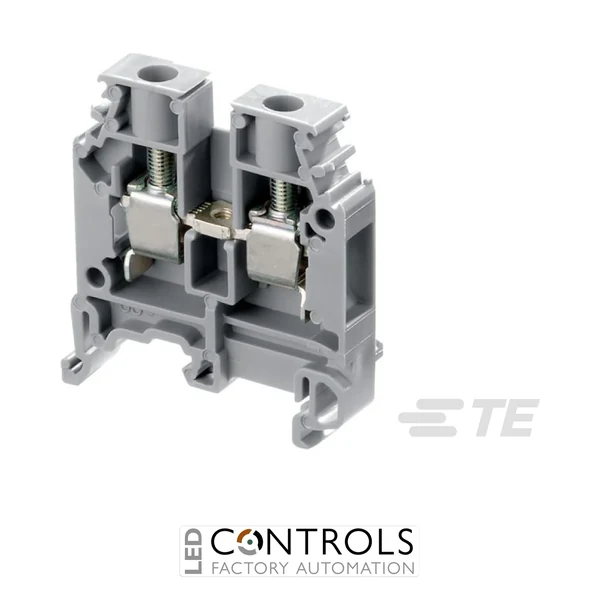

The TE Connectivity M6/8 V0 Beige 1SNA195118R1200 is a compact feed-through screw-clamp terminal block from the Entrelec SNA range. Designed for signal and general industrial wiring, it provides a secure connection between two conductors while occupying only 8 mm of DIN rail width.
The M6/8 has a nominal conductor size of 6 mm² and an IEC current rating of 41 A. Its main circuit accepts flexible conductors from 0.5–6 mm² and rigid stranded conductors from 0.5–10 mm², making it suitable for a broad range of industrial control and signal wiring applications.
Rated at 1000 V AC under IEC specifications, the 1SNA195118R1200 combines a beige Polyamide 6.6 housing with IP20 protection and a UL 94 V-0 flammability rating. Compatibility with G32, TH35-7.5 and TH35-15 rails provides installation flexibility across different panel and equipment configurations.
Key Advantages
- Compact 8 mm wide feed-through terminal block for efficient panel layouts.
- 41 A IEC current rating for industrial signal and connection circuits.
- 1000 V AC operating voltage for demanding electrical installations.
- Supports flexible conductors up to 6 mm² and rigid stranded conductors up to 10 mm².
- Proven screw-clamp termination provides secure, serviceable conductor connections.
- Compatible with both symmetrical and asymmetrical DIN rail formats.
Key Features
- TE Connectivity / Entrelec SNA modular terminal block.
- M6/8 feed-through configuration.
- 2 positions and 2 poles with a single circuit.
- Single-level terminal construction.
- 8 mm spacing.
- 6 mm² nominal wire size.
- Beige Polyamide 6.6 housing.
- IP20 ingress protection.
- UL 94 V-0 flammability rating.
- Operating temperature range from -55 to +110 °C.
Reliable Feed-Through Connections for Industrial Panels
Feed-through terminal blocks provide an organised and serviceable method of connecting incoming and outgoing conductors within electrical panels. The M6/8 uses established screw-clamp technology to create a secure mechanical and electrical connection while keeping individual circuits accessible for inspection, testing and maintenance.
With its 41 A IEC current rating, 1000 V AC operating voltage and compact 8 mm profile, the 1SNA195118R1200 provides useful electrical capacity without unnecessarily consuming DIN rail space. Multiple rail compatibility further supports integration into both new installations and existing Entrelec SNA terminal assemblies.
Typical Applications
- Industrial electrical control panels.
- Signal and instrumentation wiring.
- Machine and factory automation systems.
- Switchgear and distribution cabinets.
- DIN rail terminal block assemblies.
- OEM machinery and industrial equipment wiring.
