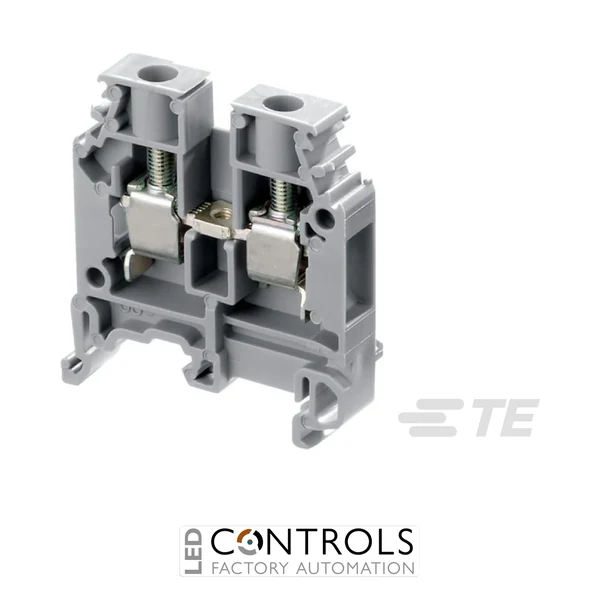

Why Choose the TE Connectivity 1SNA195260R0400 M6/8.1 V0 Feed-Through Terminal Block?
The TE Connectivity 1SNA195260R0400 M6/8.1 V0 is a robust feed-through screw-clamp terminal block designed for dependable signal and electrical connections in industrial control panels, machinery and automation systems. Part of the established ENTRELEC SNA range, it combines proven screw-terminal technology with a compact 8 mm profile and DIN rail mounting.
The M6/8.1 V0 provides a single feed-through circuit with two connection positions and accommodates conductors up to 10 mm² rigid stranded or 6 mm² flexible. Its screw-clamp connection system provides secure conductor retention, while a specified tightening torque of 0.8 N·m supports consistent installation in professional electrical assemblies.
With an IEC rating of 41 A at 1000 V, the 1SNA195260R0400 offers substantial electrical capability in a compact beige Polyamide 6.6 housing. It carries an IP20 rating, uses UL 94 V-0 material and operates across a wide -55 to +110 °C temperature range, making it suitable for demanding industrial environments.
Key Advantages
- 41 A IEC current rating for dependable industrial feed-through connections.
- Rated for up to 1000 V AC according to IEC specifications.
- Accepts rigid stranded conductors from 0.5–10 mm².
- Proven screw-clamp technology provides secure conductor termination.
- Compact 8 mm spacing supports space-efficient terminal rows.
- Compatible with G32, TH35-7.5 and TH35-15 DIN rails for flexible panel integration.
Key Features
- TE Connectivity ENTRELEC SNA series.
- M6/8.1 V0 feed-through terminal block.
- Single circuit with two connection positions.
- 41 A IEC current rating.
- 1000 V IEC voltage rating.
- 6 mm² nominal wire size.
- 8 mm terminal spacing.
- Beige Polyamide 6.6 insulating housing.
- UL 94 V-0 flammability rating.
- IP20 ingress protection.
- Operating temperature range from -55 to +110 °C.
- DIN rail mounting for modular industrial installations.
Reliable Screw-Clamp Connections for Industrial Panels
Feed-through terminal blocks provide an organised way to connect incoming and outgoing conductors through a common electrical path inside control cabinets and machinery. Screw-clamp technology remains widely used in industrial installations because it provides a straightforward mechanical connection that can be inspected, tightened and serviced using standard installation tools.
The ENTRELEC M6/8.1 V0 combines this proven connection method with a 41 A IEC current rating, 1000 V IEC voltage rating and support for conductors up to 10 mm². Its 8 mm width and compatibility with G32 and TH35 DIN rails make it suitable for building compact, modular terminal rows in industrial electrical equipment.
Typical Applications
- Industrial electrical control panels.
- Machine control and automation systems.
- Signal and feed-through wiring circuits.
- Switchgear and electrical distribution assemblies.
- OEM machinery and production equipment.
- DIN rail terminal block installations.
