Why Choose the TE Connectivity 1SNA195271R2300 M4/6.D2 V0 Double-Deck Terminal Block?

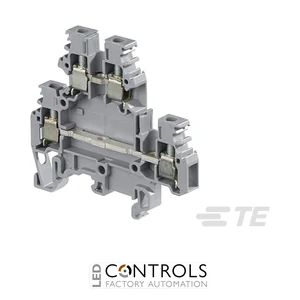

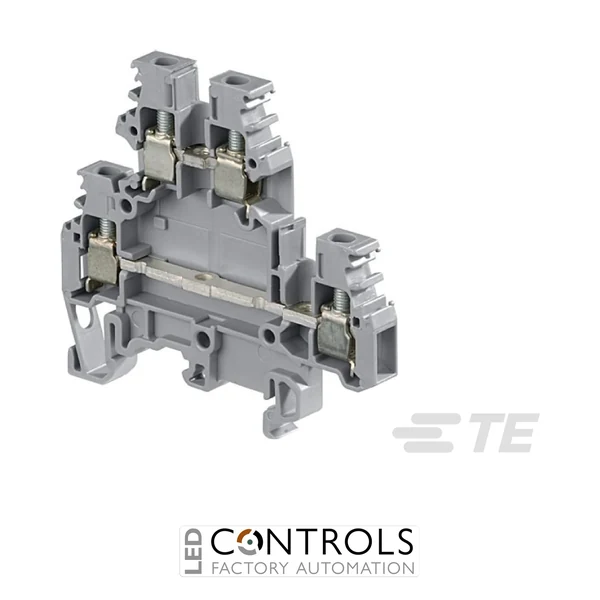

The TE Connectivity 1SNA195271R2300 M4/6.D2 V0 is a compact double-deck screw-clamp feed-through terminal block designed for space-efficient signal connections in industrial control panels, machinery and automation systems. Part of the established ENTRELEC SNA range, its two-level construction allows multiple connections to be accommodated within a terminal width of just 6 mm.
The M4/6.D2 uses proven screw-terminal connection technology and provides two connection levels within a single modular terminal block. With an IEC rated cross-section of 4 mm², rated current of 32 A and rated voltage of 800 V, it provides dependable connectivity for demanding industrial signal and control wiring.
Manufactured with a beige Polyamide 6.6 housing, the 1SNA195271R2300 offers IP20 protection and a UL 94 V-0 flammability rating. It supports G32, TH35-7.5 and TH35-15 DIN rails and operates across a wide -55 to +110 °C temperature range, making it suitable for modular electrical installations in challenging industrial environments.
Key Advantages
- Double-deck design increases connection density while conserving DIN rail space.
- 32 A IEC current rating with a rated cross-section of 4 mm².
- Rated for up to 800 V according to IEC specifications.
- Proven screw-clamp technology provides secure and serviceable conductor termination.
- Compact 6 mm width supports high-density terminal rows.
- Compatible with G32, TH35-7.5 and TH35-15 DIN rails for flexible panel integration.
Key Features
- TE Connectivity ENTRELEC SNA series.
- M4/6.D2 V0 double-deck feed-through terminal block.
- Two-level construction for increased wiring density.
- Single circuit feed-through configuration.
- 32 A IEC current rating.
- 800 V IEC voltage rating.
- 4 mm² rated cross-section.
- 6 mm terminal spacing.
- Beige Polyamide 6.6 housing.
- UL 94 V-0 flammability rating and IP20 protection.
- DIN rail mounting on G32 and TH35 rail formats.
- Operating temperature range from -55 to +110 °C.
Space-Efficient Double-Deck Terminal Connections
Double-deck terminal blocks increase wiring density by arranging connections across two levels within a single DIN rail position. This configuration is particularly useful in control cabinets where rail space is limited, allowing panel builders to accommodate additional signal connections without significantly increasing the overall width of the terminal assembly.
The ENTRELEC M4/6.D2 combines this space-saving architecture with established screw-clamp technology and strong electrical performance. Its 4 mm² rated cross-section, 32 A IEC current rating and compact 6 mm width make it a practical solution for high-density industrial control, signal and automation wiring.
Typical Applications
- Industrial electrical control panels.
- High-density signal wiring installations.
- Machine control and automation systems.
- PLC and instrumentation wiring.
- OEM machinery and production equipment.
- Space-constrained DIN rail terminal assemblies.
