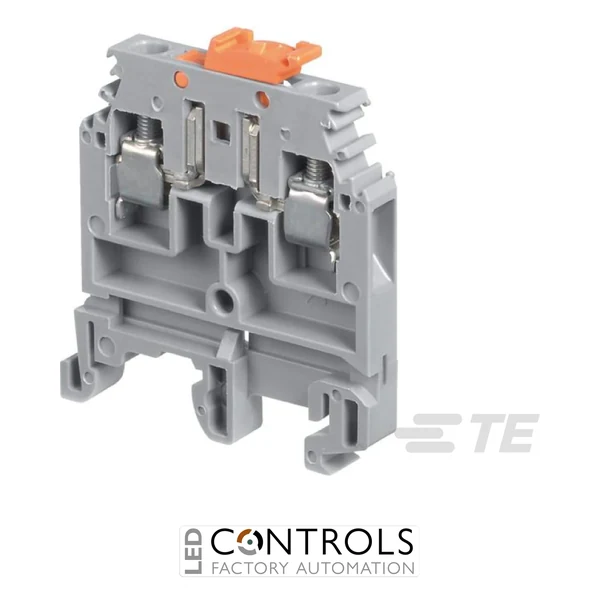

Why Choose the TE Connectivity M4/6.SNBT1.V0 Disconnect Terminal Block?
The TE Connectivity M4/6.SNBT1.V0 is a compact disconnect terminal block designed to provide reliable electrical connections for signal and control circuits in industrial control panels and automation systems. Part of the established ENTRELEC SNA screw-clamp terminal block series, it combines a space-saving 6 mm pitch with a manually operated disconnect blade for convenient circuit isolation and testing.
The M4/6.SNBT1.V0 features 2 positions on a single level and accepts conductors from 0.5 to 4 mm². The screw-clamp connection system provides secure conductor termination, while the integrated disconnect blade allows the circuit to be opened without removing the wiring from the terminal block.
With a 20 A IEC current rating, 400 V AC operating voltage and 4 kV impulse withstand voltage, the 1SNA195438R1300 is suited to a wide range of industrial signal and control applications. Its beige polyamide 6.6 housing has a UL 94 V-0 flammability rating and supports G32, TH35-7.5 and TH35-15 DIN rail mounting.
Key Advantages
- Compact disconnect terminal block for industrial signal and control circuits.
- 20 A IEC rated current for suitable industrial applications.
- 400 V AC operating voltage for control and signal wiring systems.
- Integrated disconnect blade enables convenient circuit isolation.
- 6 mm terminal spacing helps maximise available DIN rail space.
- Accepts conductors from 0.5 to 4 mm².
- Compatible with G32, TH35-7.5 and TH35-15 DIN rails.
- UL 94 V-0 polyamide 6.6 housing provides robust insulation.
Key Features
- TE Connectivity ENTRELEC SNA terminal block series.
- M4/6.SNBT1.V0 disconnect terminal block.
- 2-position single-level configuration.
- 6 mm terminal spacing.
- 20 A IEC rated current.
- 400 V AC operating voltage.
- 4 kV IEC impulse withstand voltage.
- 0.5–4 mm² conductor capacity.
- Screw-clamp conductor termination.
- Manually operated disconnect blade.
- Beige polyamide 6.6 insulating housing.
- UL 94 V-0 flammability rating.
Convenient Circuit Isolation for Industrial Control Systems
Disconnect terminal blocks provide an efficient way to isolate individual circuits without removing the conductors from the terminal assembly. The M4/6.SNBT1.V0 incorporates a manually operated disconnect blade that can be operated by hand or with a screwdriver, making circuit isolation and maintenance more convenient.
The compact 6 mm pitch allows high terminal density on DIN rail installations, while the screw-clamp connections accommodate conductors up to 4 mm². The terminal block also shares the same profile as compatible M4/6 feed-through terminals, helping maintain aligned marking across an installation.
Typical Applications
- Industrial electrical control panels.
- PLC and automation control systems.
- Signal and instrumentation circuits.
- Machine control cabinets.
- Industrial process control systems.
- Electrical panel building and maintenance.
