Why Choose the TE Connectivity 1SNA199038R2100 D4/6.ADO.1 Terminal Block?

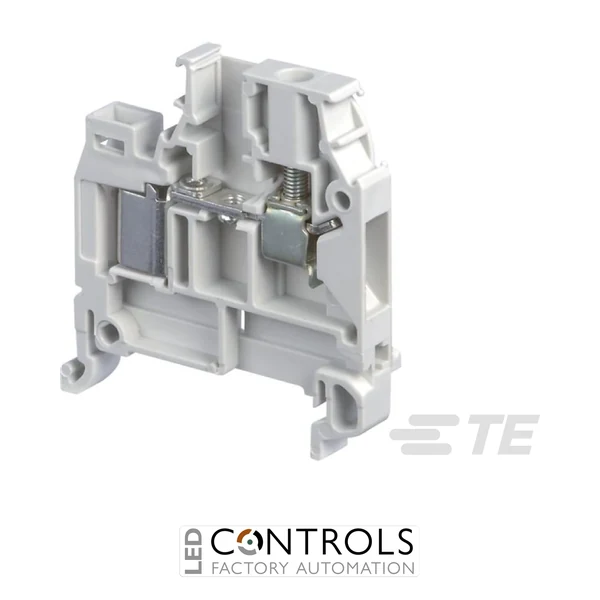

The TE Connectivity 1SNA199038R2100 D4/6.ADO.1 is a grey feed-through DIN rail terminal block combining ENTRELEC ADO insulation displacement technology with a conventional screw-clamp connection. Part of the established SNA ADO range, it provides a practical hybrid connection solution for industrial control panels, machinery, automation systems and other professional electrical installations.
The D4/6.ADO.1 combines ADO System and screw-clamp connection technologies within a compact 6 mm terminal width. Its screw-clamp side accepts rigid conductors from 0.2–4 mm² and flexible conductors from 0.22–4 mm², while the terminal has an IEC rated cross-section of 1.5 mm².
With an IEC rated current of 17.5 A and rated voltage of 1000 V, the 1SNA199038R2100 delivers dependable electrical performance in a compact format. Its grey polyamide housing provides IP20 protection and a UL 94 V-0 flammability classification, while compatibility with TH35 DIN rails makes integration into modern industrial control cabinets straightforward.
Key Advantages
- Combines ADO System and screw-clamp connections in a single feed-through terminal.
- 17.5 A IEC current rating for dependable industrial signal and control wiring.
- Rated for up to 1000 V according to IEC specifications.
- Compact 6 mm width supports high-density DIN rail terminal assemblies.
- IP20 protection and UL 94 V-0 insulating material support professional panel installations.
- Compatible with TH35-7.5 and TH35-15 DIN rails for flexible installation.
Key Features
- TE Connectivity ENTRELEC SNA ADO series.
- D4/6.ADO.1 feed-through terminal block.
- Hybrid screw clamp / ADO System connection technology.
- 17.5 A rated current.
- 1000 V rated voltage.
- 1.5 mm² rated cross-section.
- Compact 6 mm terminal spacing.
- Grey polyamide insulating housing.
- IP20 degree of protection.
- UL 94 V-0 flammability classification.
- Single-level feed-through configuration.
- Operating temperature range from -55 to +110 °C.
Efficient ADO and Screw-Clamp Connection Technology
ADO technology uses an insulation displacement connection method designed to simplify conductor termination while maintaining a secure electrical connection. Combining an ADO connection with a conventional screw clamp gives panel builders flexibility when different conductor termination methods are required within the same terminal row.
The D4/6.ADO.1 combines this hybrid connection arrangement with a compact 6 mm profile, 17.5 A IEC current rating and 1000 V IEC voltage rating. Its single-level feed-through configuration makes it suitable for organised signal, control and automation wiring where DIN rail space and reliable connectivity are important.
Typical Applications
- Industrial electrical control panels.
- Machine control and automation systems.
- Signal and control wiring circuits.
- PLC and instrumentation installations.
- OEM machinery and production equipment.
- High-density DIN rail terminal assemblies.
