Why Choose the TE Connectivity D6/8.ADO Terminal Block?

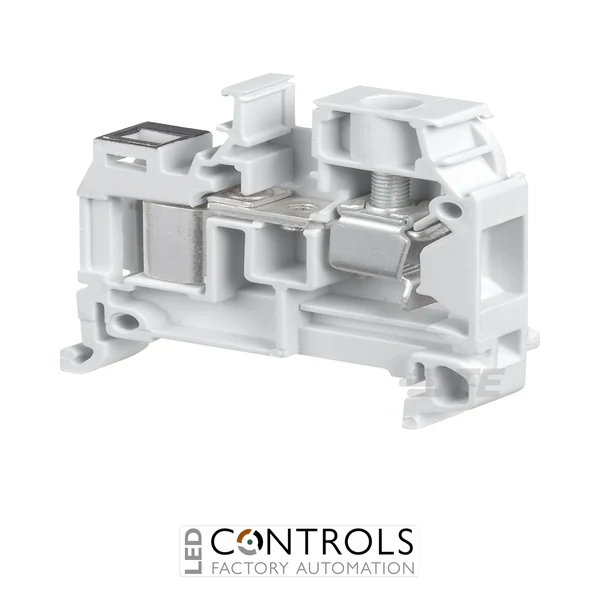

The TE Connectivity D6/8.ADO is a compact feed-through ADO/Screw terminal block designed for reliable electrical connections in industrial control panels, automation systems and electrical enclosures. Identified by manufacturer part number 1SNA199042R2500, this grey terminal block combines an ADO System connection on one side with a conventional screw clamp on the other, allowing different wiring methods to be used within the same terminal.
As part of the TE Connectivity Entrelec SNA Series, the D6/8.ADO is designed to provide fast and dependable wiring while maintaining the flexibility of traditional screw termination. The ADO connection uses insulation displacement technology for efficient conductor termination, while the screw-clamp side provides a familiar connection method for field wiring.
The D6/8.ADO has an 8 mm terminal width, a 24 A rated current and IP20 protection. It accepts 1–2.5 mm² conductors on the ADO side and supports a wider conductor range on the screw-clamp side, making it suitable for a broad range of industrial control and automation applications.
Key Advantages
- Compact ADO/Screw feed-through terminal block for industrial electrical installations.
- ADO System connection provides fast insulation-displacement termination.
- 24 A rated current for suitable industrial control and distribution circuits.
- 8 mm terminal width helps maximise available DIN rail space.
- Flexible connection options with ADO termination on one side and a screw clamp on the other.
- IP20 protection helps provide protection against accidental contact with live electrical parts.
- Suitable for TH35-7.5 and TH35-15 DIN rails.
Key Features
- TE Connectivity Entrelec SNA Series terminal block.
- D6/8.ADO feed-through ADO/Screw configuration.
- 24 A rated current.
- 8 mm terminal width.
- Grey insulation housing.
- 1SNA199042R2500 manufacturer part number.
- ADO connection accepts conductors from 1–2.5 mm².
- Screw-clamp connection accepts rigid conductors from 0.2–10 mm² and flexible conductors from 0.22–6 mm².
- IP20 protection rating.
- DIN rail mounting on TH35-7.5 and TH35-15 profiles.
Fast and Flexible ADO/Screw Terminal Connections
The TE Connectivity D6/8.ADO combines ADO System technology with a conventional screw-clamp connection, allowing installers to transition between pre-wired ADO assemblies and standard field wiring. The ADO side provides a fast insulation-displacement connection, while the screw-clamp side accommodates a wider range of conductor sizes.
The terminal block is designed for DIN rail installation and has an 8 mm spacing, making it suitable for compact control cabinets where efficient use of panel space is important. Its IP20 protection and wide operating temperature range support use in demanding industrial electrical environments.
Typical Applications
- Industrial electrical control panels.
- Machine building and automation systems.
- Process control and instrumentation.
- Electrical switchgear and control cabinets.
- Industrial wiring distribution and termination.
- Retrofit and hybrid control panel installations.
- Applications requiring transition between ADO and screw-clamp wiring.
