Why Choose the TE Connectivity 165LTTM5TM5 1SNA216110R2200 Terminal Block?

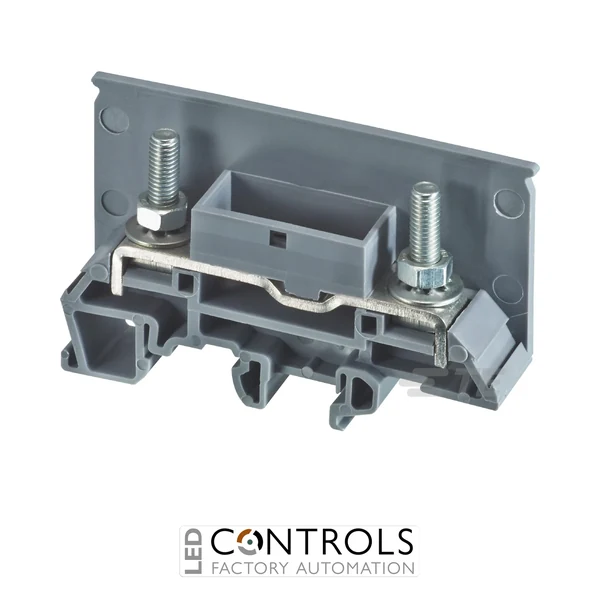

The TE Connectivity 165LTTM5TM5 1SNA216110R2200 is a heavy-duty 16 mm² feed-through ring lug terminal block designed for reliable power connections in industrial electrical installations. Part of the ENTRELEC dedicated applications terminal block range, it uses two stud connections to provide a secure mechanical and electrical interface for conductors terminated with ring lugs.
The 165LTTM5TM5 features two M5 × 16 mm studs with a partition and has a 16 mm spacing. Under its IEC/NFC specifications, the terminal block is rated at 76 A and 800 V with a rated cross-section of 16 mm², making it suitable for demanding power distribution, machinery and control panel applications.
Designed for flexible panel integration, the grey terminal block can be mounted on G32, TH35-7.5 and TH35-15 rails. It also has a wide -55–110 °C operating temperature range, UL 94 V-0 flammability classification and an individual weight of approximately 40 g, providing a robust connection solution for professional industrial assemblies.
Key Advantages
- Heavy-duty 16 mm² feed-through terminal block for ring lug connections.
- 76 A rated current under IEC/NFC specifications for demanding electrical applications.
- 800 V rated voltage with an 8 kV impulse withstand voltage.
- Two M5 × 16 mm studs provide secure bolted ring lug connections.
- Compatible with G32, TH35-7.5 and TH35-15 mounting rails.
- Wide -55–110 °C operating temperature range for industrial environments.
Key Features
- TE Connectivity / ENTRELEC 165LTTM5TM5 terminal block.
- Feed-through configuration for ring lug conductors.
- Two M5 × 16 mm stud connections with partition.
- 16 mm terminal spacing.
- 16 mm² rated conductor cross-section.
- 76 A / 800 V IEC/NFC rating.
- 600 V UL rating.
- UL 94 V-0 flammability classification.
- Grey thermoplastic insulating body.
- Profile aligned with the compatible 165ETTM5TM5 disconnect terminal block.
Heavy-Duty Ring Lug Connections for Industrial Power Distribution
Stud terminal blocks provide a robust connection method for conductors fitted with ring lugs, combining strong mechanical retention with dependable electrical contact. This connection technology is particularly well suited to industrial power circuits where vibration resistance, secure conductor termination and straightforward inspection are important.
The 165LTTM5TM5 combines two M5 × 16 mm studs with a 16 mm² rated cross-section and 76 A / 800 V IEC/NFC rating. Its compatibility with several common industrial mounting rail profiles makes the 1SNA216110R2200 a versatile choice for power distribution, machinery and control cabinet installations.
Typical Applications
- Industrial electrical control panels.
- Power distribution cabinets.
- Ring lug conductor termination.
- Machinery and automation systems.
- Industrial switchgear assemblies.
- High-current control and power circuits.
- G32 and TH35 DIN rail terminal installations.
