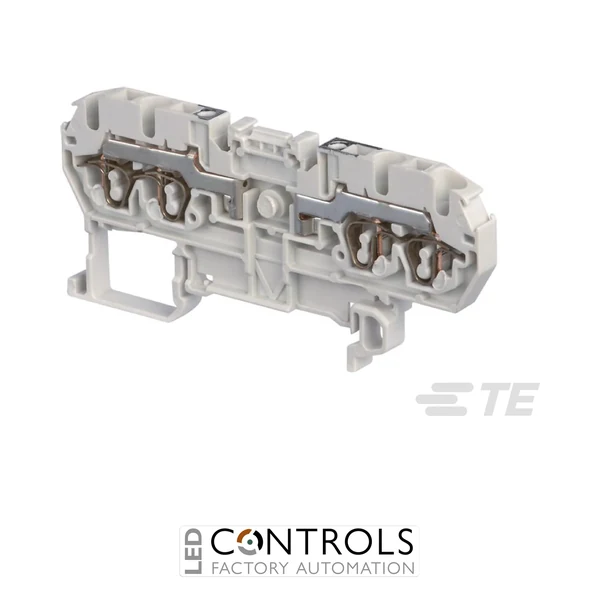

TE Connectivity D2.5/5.2L.2L 1SNA290001R0400 is a grey 5 mm-wide spring-clamp feed-through terminal block with two separate circuits, four connections, a 24 A rated current and an 800 V rated voltage for 35 mm DIN rail installations.
£3.38
The TE Connectivity / Entrelec D2.5/5.2L.2L 1SNA290001R0400 is a compact grey spring-clamp feed-through terminal block from the SNA range, designed for reliable conductor connection in industrial control panels, machinery and electrical distribution assemblies. Its spring connection technology provides consistent contact pressure without relying on installer-applied screw torque.
Designed with two separate feed-through circuits and four connection points, the D2.5/5.2L.2L enables multiple connections within a compact 5 mm-wide terminal footprint. Front-entry wiring provides convenient conductor access, while the spring-clamp mechanism supports efficient installation and automatic compensation for conductor settling over time.
The 1SNA290001R0400 is rated at 24 A and 800 V under IEC specifications and accepts flexible conductors from 0.12–2.5 mm² and rigid conductors from 0.12–4 mm². Designed for 35 mm DIN rail mounting, it combines compact dimensions with practical testing and jumpering capabilities for professional panel-building applications.
Spring-clamp terminal technology maintains conductor contact through a mechanically applied spring force rather than installer-controlled screw torque. This helps provide repeatable connection pressure while reducing the need for routine retightening, making spring terminals particularly suitable for control panels and machinery exposed to demanding operating conditions.
The D2.5/5.2L.2L combines this connection method with two separate feed-through circuits and four connection points. Its compact 5 mm spacing, front wiring access and DIN rail mounting make it well suited to high-density industrial wiring where installation efficiency, circuit accessibility and dependable electrical connections are important.
| Manufacturer | TE Connectivity / Entrelec |
|---|---|
| Series | SNA Spring |
| Model | D2.5/5.2L.2L |
| Manufacturer part number | 1SNA290001R0400 |
| Product type | Spring-clamp feed-through terminal block |
| Function | Feed-through |
| Number of feed-through circuits | 2 |
| Number of connections | 4 |
| Connection technology | Spring clamp |
| Rated current | 24 A |
| Rated voltage | 800 V |
| Flexible conductor capacity | 0.12–2.5 mm² |
| Rigid conductor capacity | 0.12–4 mm² |
| Number of levels | 1 |
| Terminal spacing | 5 mm |
| Width | 5 mm |
| Height | 80 mm |
| Depth | 30.5 mm |
| Mounting | 35 mm DIN rail |
| Colour | Grey |
| Insulating body material | Thermoplastic |
| Protection rating | IP20 |
| Operating temperature | -55 to +110 °C |
| Product net weight | 8 g |
| EAN | 3472592900018 |
The 1SNA290001R0400 is a spring-clamp feed-through terminal block used to connect and distribute conductors in industrial control panels, automation systems, machinery and other DIN rail-mounted electrical assemblies.
The D2.5/5.2L.2L provides two separate feed-through circuits with four connection points, allowing efficient wiring within a compact terminal footprint.
It accepts flexible conductors from 0.12–2.5 mm² and rigid conductors from 0.12–4 mm².
The terminal block has IEC ratings of 24 A rated current and 800 V rated voltage.
The terminal block is designed for installation on a standard 35 mm DIN rail, making it suitable for modular industrial control and distribution assemblies.
TE Connectivity / Entrelec SNA spring terminal blocks combine compact DIN rail installation with dependable spring-clamp connections, helping panel builders create organised, accessible and reliable industrial wiring systems.
