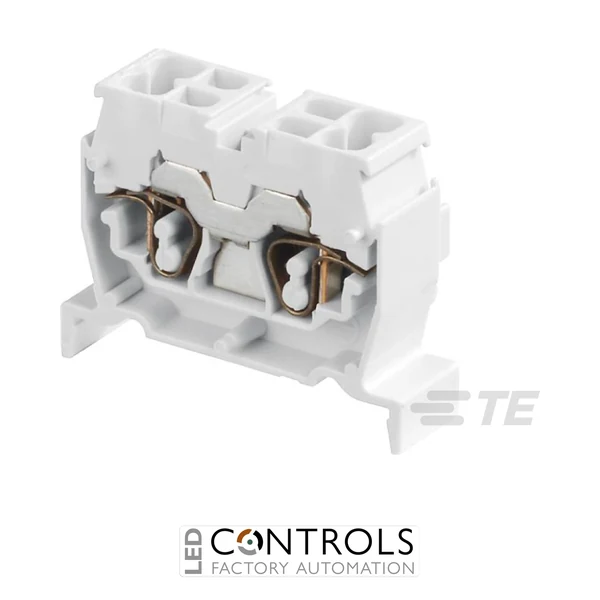

TE Connectivity DS2.5/10.4L 1SNA290231R0600 is a grey four-connection spring-clamp feed-through terminal block rated at 24 A and 800 V with conductor capacity up to 4 mm² for industrial DIN rail wiring applications.
£1.43
The TE Connectivity / ENTRELEC DS2.5/10.4L 1SNA290231R0600 is a compact four-connection spring-clamp feed-through terminal block designed for reliable conductor connection in industrial control panels, machinery and automation equipment. Part of the ENTRELEC SNA spring terminal range, it combines compact dimensions with front-entry wiring and maintenance-free spring-clamp technology.
The DS2.5/10.4L provides four connection points on a single level, allowing conductors to be interconnected through one compact terminal. Its spring-clamp connection system maintains consistent contact pressure independently of the installer and automatically compensates for conductor settling, helping provide dependable electrical performance throughout the installation's service life.
Rated at 24 A and 800 V to IEC specifications, the terminal accepts rigid conductors from 0.12–4 mm² and flexible conductors from 0.12–2.5 mm². The grey housing measures just 10 mm wide and mounts directly onto standard TH35 DIN rail, making it suitable for compact, high-density panel layouts.
Spring-clamp terminal technology provides a reliable alternative to conventional screw connections by applying continuous pressure to the connected conductor. This helps compensate automatically for conductor settling and removes the need for routine screw retightening, making the DS2.5/10.4L particularly suitable for machinery and automation installations where dependable long-term connections are important.
The combination of four connection points, front-entry wiring and a 10 mm footprint allows several conductors to be interconnected efficiently without unnecessarily increasing panel space. Mounting onto standard TH35 DIN rail also simplifies integration with other terminal blocks and control components in modular industrial assemblies.
| Manufacturer | TE Connectivity / Entrelec |
|---|---|
| Series | SNA Spring |
| Model | DS2.5/10.4L |
| Manufacturer part number | 1SNA290231R0600 |
| Product type | Spring-clamp feed-through terminal block |
| Function | Four-connection Miniblock |
| Number of levels | 1 |
| Clamping positions per level | 4 |
| Connection technology | Spring clamp |
| Rated current | 24 A |
| Rated voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Rigid conductor capacity | 0.12–4 mm² |
| Flexible conductor capacity | 0.12–2.5 mm² |
| Flexible conductor with insulated ferrule | 0.5–1.5 mm² |
| Width / spacing | 10 mm |
| Height | 38 mm |
| Depth | 24.5 mm |
| Colour | Grey |
| Insulating material | Thermoplastic |
| Protection rating | IP20 |
| Operating temperature | -55 to +110 °C |
| DIN rail mounting | TH35-7.5 and TH35-15 |
| Product net weight | approx. 6 g |
| Pack quantity | 100 |
| EAN | 3472592902319 |
It is a four-connection, single-level spring-clamp terminal block from the ENTRELEC SNA range, designed for DIN rail mounted industrial wiring and conductor distribution applications.
The DS2.5/10.4L has an IEC rated current of 24 A and rated voltage of 800 V, with an 8 kV rated impulse withstand voltage.
The terminal accepts rigid conductors from 0.12–4 mm² and flexible conductors from 0.12–2.5 mm². Flexible conductors fitted with insulated ferrules can be connected in the 0.5–1.5 mm² range.
The terminal provides four spring-clamp connection points on one level, allowing multiple conductors to be interconnected through a compact terminal block.
The DS2.5/10.4L is designed for mounting on standard TH35-7.5 and TH35-15 DIN rails, making it suitable for common industrial control panel configurations.
TE Connectivity and ENTRELEC SNA spring terminal blocks provide panel builders, automation engineers and electrical installers with compact, dependable and maintenance-friendly connections for professional industrial electrical systems.
