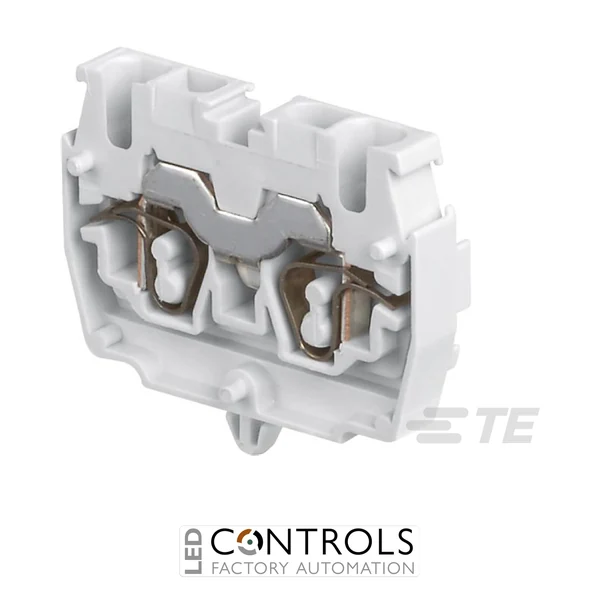

TE Connectivity 1SNA290261R1400 DH2.5/5.2L is a compact two-connection spring-clamp miniblock terminal rated at 24 A and 800 V IEC with a 2.5 mm² rated cross-section for industrial control and automation wiring.
£1.02
The TE Connectivity 1SNA290261R1400, manufacturer designation DH2.5/5.2L, is a compact two-connection spring-clamp miniblock terminal designed for space-efficient wiring in industrial control panels, automation equipment and machinery. Part of the established TE Connectivity ENTRELEC SNA Mini Blocks Spring range, it combines reliable spring connection technology with a compact format for applications where installation space is limited.
The DH2.5/5.2L uses spring-clamp connection technology to provide consistent conductor contact independently of installer-applied screw torque. The spring connection automatically compensates for conductor creep, helping maintain dependable electrical contact throughout the service life of the installation while simplifying panel assembly and maintenance.
With a rated cross-section of 2.5 mm², an IEC rated current of 24 A and an IEC rated voltage of 800 V, the 1SNA290261R1400 is suitable for industrial control and automation wiring. Its compact 5 mm pitch, grey housing and two-connection configuration make it particularly useful where high wiring density and efficient use of panel space are required.
Spring-clamp terminal technology maintains conductor contact pressure without relying on installer-applied screw torque. This provides consistent electrical termination while automatically compensating for conductor creep, making spring terminals well suited to industrial installations where reliable long-term connections and efficient assembly are important.
The DH2.5/5.2L combines these benefits with a compact miniblock format and 5 mm pitch. Its small footprint allows designers to increase wiring density in electrical enclosures while retaining practical conductor capacities and electrical ratings for control, signalling and automation circuits.
| Manufacturer | TE Connectivity / ENTRELEC |
|---|---|
| Series | SNA Mini Blocks Spring |
| Model | DH2.5/5.2L |
| Manufacturer part number | 1SNA290261R1400 |
| Product type | Spring-clamp miniblock terminal |
| Connection type | Spring clamp |
| Number of connections | 2 |
| Rated cross-section | 2.5 mm² |
| IEC rated current | 24 A |
| UL rated current | 15 A |
| IEC rated voltage | 800 V |
| UL rated voltage | 600 V |
| Rated impulse withstand voltage | 8 kV |
| Rated short-time withstand current | 300 A for 1 s |
| Rigid conductor capacity | 0.12–4 mm² |
| Flexible conductor capacity | 0.12–2.5 mm² |
| UL conductor range | 26–12 AWG |
| Wire stripping length | 9.5 mm |
| Pitch | 5 mm |
| Colour | Grey |
| Protection rating | IP20 |
| Dimensions (H × W × D) | approx. 24.5 × 5 × 33 mm |
| Weight | approx. 4 g |
| Pack quantity | 100 |
| Barcode / EAN | 3472592902616 |
It is a two-connection spring-clamp miniblock terminal designed for compact conductor connections in industrial control panels, automation equipment, machinery and other electrical installations.
The terminal has an IEC rated current of 24 A, an IEC rated voltage of 800 V and a rated cross-section of 2.5 mm².
The spring-clamp connections accept rigid conductors from 0.12–4 mm² and flexible conductors from 0.12–2.5 mm², with a UL conductor range of 26–12 AWG.
The DH2.5/5.2L uses spring-clamp connection technology, providing consistent contact pressure independently of installer-applied screw torque and automatically compensating for conductor creep.
The terminal has a compact 5 mm pitch and approximate dimensions of 24.5 × 5 × 33 mm, making it suitable for space-efficient industrial control and automation installations.
TE Connectivity ENTRELEC SNA spring miniblocks provide compact and dependable conductor connections for industrial electrical systems, combining consistent spring-clamp contact pressure with space-efficient construction for control, automation and machine-building applications.
