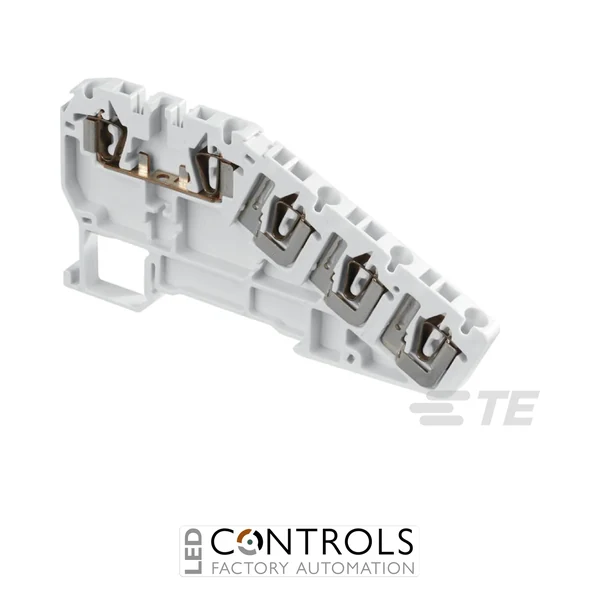

TE Connectivity D2.5/5.C4.L 1SNA290354R1100 is a 5 mm pitch spring-clamp sensor and actuator terminal block rated at 17.5 A and 300 V for compact industrial automation and control-panel wiring.
£4.38
The TE Connectivity D2.5/5.C4.L, part number 1SNA290354R1100, is a compact spring-clamp sensor/actuator terminal block designed for high-density industrial control and automation wiring. Part of the Entrelec SNA spring terminal block range, it combines multiple connection levels within a narrow 5 mm pitch, helping reduce valuable DIN rail space inside electrical control panels.
Designed specifically for sensor and actuator connections, the D2.5/5.C4.L uses reliable spring-clamp technology with front wiring access. Spring clamping provides consistent contact pressure independently of the installer and automatically compensates for conductor creep, supporting dependable electrical connections in demanding industrial environments.
With an IEC rated current of 17.5 A, rated voltage of 300 V and conductor capacity from 0.14–1.5 mm² under the manufacturer's IEC spring-clamp data, this grey terminal block provides a space-efficient connection solution for automation equipment. It mounts on TH 35-7.5 or TH 35-15 DIN rail and has an IP20 protection rating.
Sensor and actuator terminal blocks simplify the connection of field devices to control systems by organising multiple conductors within a compact DIN rail assembly. The multi-level construction of the D2.5/5.C4.L enables several circuit connections to be accommodated within only 5 mm of rail width, making it particularly useful where panel space is limited.
Its spring-clamp connection system maintains consistent conductor contact pressure while front-entry wiring improves accessibility during installation. These characteristics make the D2.5/5.C4.L well suited to PLC interfaces, machine controls and distributed sensor and actuator wiring in industrial automation systems.
| Manufacturer | TE Connectivity / Entrelec |
|---|---|
| Series | SNA Spring Terminal Blocks |
| Model | D2.5/5.C4.L |
| Manufacturer part number | 1SNA290354R1100 |
| Product type | Sensor / actuator spring terminal block |
| Connection technology | Spring clamp |
| Rated current (IEC) | 17.5 A |
| Rated voltage | 300 V |
| Rated cross-section (IEC) | 1.5 mm² |
| Rigid conductor capacity | 0.14–1.5 mm² |
| Flexible conductor capacity | 0.14–1.5 mm² |
| Conductor with insulated ferrule | 0.5–1 mm² |
| Wire gauge | 24–16 AWG |
| Pitch / width | 5 mm |
| Height | 95 mm |
| Depth | approx. 41 mm |
| Colour | Grey |
| Protection rating | IP20 |
| Insulating material | Thermoplastic |
| Flammability rating | UL 94 V-0 |
| DIN rail | TH 35-7.5 / TH 35-15 |
| Wire stripping length | 9.5 mm |
| Rated impulse withstand voltage | 4,000 V |
| Rated short-time withstand current (1 s) | 180 A |
| Weight | approx. 13 g |
| Pack quantity | 50 |
| EAN | 3472592903545 |
The D2.5/5.C4.L is a spring-clamp terminal block designed primarily for connecting sensors and actuators within industrial automation and electrical control systems.
The terminal block has an IEC rated current of 17.5 A with a rated cross-section of 1.5 mm².
The TE Connectivity D2.5/5.C4.L has a rated voltage of 300 V.
According to the manufacturer's IEC data, the spring clamps accept rigid and flexible conductors from 0.14–1.5 mm², with insulated ferrules from 0.5–1 mm².
The D2.5/5.C4.L uses spring-clamp connections, providing consistent conductor contact pressure and convenient front wiring access.
The terminal block is designed for mounting on TH 35-7.5 and TH 35-15 DIN rails.
TE Connectivity / Entrelec SNA spring terminal blocks provide compact, dependable and maintenance-friendly electrical connections for machine builders, panel builders and automation engineers working with industrial sensor, actuator and control circuits.
