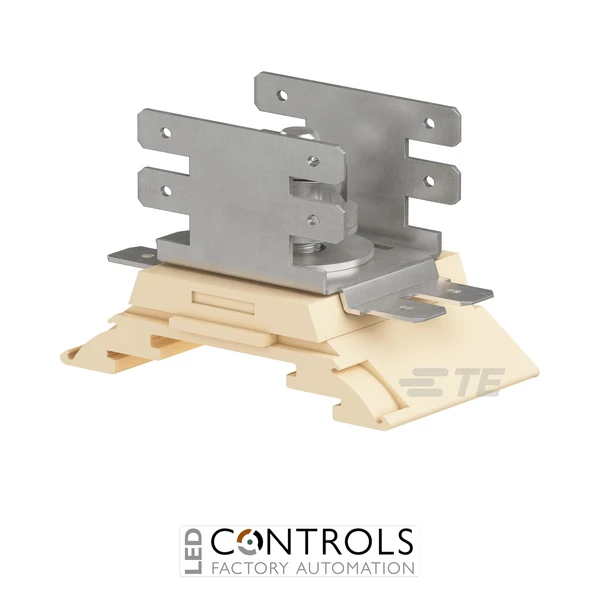

TE Connectivity HD6/30.F12G 1SNA295015R1200 is a DIN rail feed-through stud terminal block combining a 155 A M6 main connection with twelve 6.3 × 0.8 mm quick-connect branch tabs rated up to 16 A each.
£17.47
The TE Connectivity HD6/30.F12G, part number 1SNA295015R1200, is a heavy-duty feed-through stud terminal block designed to combine a high-current M6 stud connection with multiple quick-connect Faston outputs. It provides a practical interface between a main power conductor and numerous branch connections in industrial, transport and control-panel wiring systems.
The terminal block features one M6 × 19.5 mm stud for the main circuit together with 12 quick-connect tabs measuring 6.3 × 0.8 mm. This arrangement allows one high-current incoming connection to feed up to twelve Faston-style branch connections, helping simplify wiring distribution and reduce the need for additional terminal hardware.
The HD6/30.F12G supports a main-circuit current of up to 155 A, while each quick-connect tab is rated up to 16 A. It has a 35 mm² conductor capacity, a 30 mm pitch and DIN rail mounting for straightforward integration into professional electrical assemblies.
The HD6/30.F12G is designed to simplify applications where a substantial incoming conductor must supply numerous smaller branch circuits. Its M6 stud provides the main high-current connection, while twelve 6.3 × 0.8 mm Faston-style tabs provide convenient push-on branch outputs for downstream equipment.
This configuration is particularly useful in compact distribution assemblies because it combines screw/stud and quick-connect termination methods within one DIN rail component. The result is an efficient transition between high-current power wiring and multiple lower-current branch connections without requiring numerous separate terminal blocks.
| Manufacturer | TE Connectivity / Entrelec |
|---|---|
| Model | HD6/30.F12G |
| Manufacturer part number | 1SNA295015R1200 |
| Product type | Stud terminal block |
| Block function | Feed-through |
| Number of circuits | 1 |
| Number of levels | 1 |
| Number of positions | 13 |
| Main connection | M6 × 19.5 mm stud |
| Branch connections | 12 quick-connect tabs |
| Quick-connect tab size | 6.3 × 0.8 mm |
| Main-circuit current rating | 155 A |
| Maximum current per branch tab | 16 A |
| Operating voltage | 750 V AC |
| NFC voltage rating | 750 V AC / 900 V DC |
| NF F 61-017 voltage rating | 380 V AC / 500 V DC |
| Wire size | 35 mm² |
| Wire gauge | 10 AWG |
| Termination method | Quick connect / screw terminal |
| Tightening torque | 5.3 Nm |
| Product spacing | 30 mm |
| Width | 30 mm |
| Height | 50 mm |
| Depth | 39.4 mm |
| Housing material | Polyamide |
| Colour | Beige |
| DIN rail mounting | TH 35-7.5 / TH 35-15 / Type 2 |
| Weight | approx. 42 g |
| Pack quantity | 10 |
The HD6/30.F12G is used to distribute a high-current electrical supply from an M6 stud connection to multiple quick-connect branch circuits in industrial and transport electrical systems.
It provides 12 quick-connect tabs, each measuring 6.3 × 0.8 mm.
The main circuit is rated up to 155 A, while each individual quick-connect branch tab supports up to 16 A.
The HD6/30.F12G uses an M6 × 19.5 mm stud for the main power connection.
The terminal block is specified for a conductor size of up to 35 mm².
It is designed for DIN rail mounting and is compatible with TH 35-7.5, TH 35-15 and Type 2 mounting rails.
TE Connectivity / Entrelec stud terminal blocks provide robust and space-efficient solutions for demanding electrical distribution systems, with the HD6/30.F12G combining a 155 A M6 stud connection and twelve quick-connect branch tabs in one DIN rail component.
