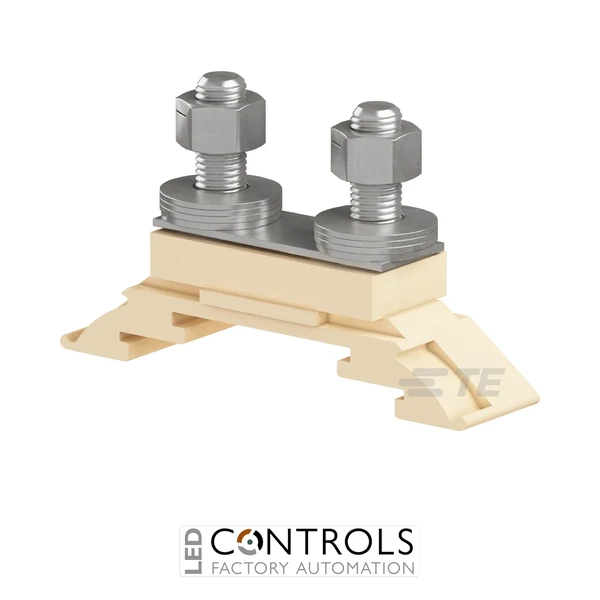

TE Connectivity HD10/12.FF5 1SNA295397R2600 is a beige 10 mm² feed-through terminal block with two M5 stud connections, rated at 57 A and 750 V AC/DC for secure industrial and railway power wiring.
£9.20
The TE Connectivity HD10/12.FF5 1SNA295397R2600 is a robust feed-through stud terminal block designed for secure cable-lug connections in industrial, railway and electrical distribution applications. Part of the established Entrelec SNA HD stud terminal block range, it features two M5 stud connections in a compact DIN rail housing for dependable high-current conductor termination.
The HD10/12.FF5 uses two M5 × 19.5 mm stud terminals, each equipped with fastening hardware designed to secure compatible conductor lugs. This bolted termination method provides a strong mechanical and electrical interface, making the terminal particularly suitable for applications where vibration resistance, reliable contact pressure and long-term connection integrity are important.
With a rated cross-section of 10 mm², rated current of 57 A and rated voltage of 750 V AC/DC, the HD10/12.FF5 provides substantial electrical performance within a 12 mm pitch. Its beige thermoplastic housing and compatibility with standard TH35 DIN rails make it suitable for organised power and control wiring in demanding industrial equipment.
Stud terminal blocks provide a mechanically robust method of terminating conductors fitted with compatible cable lugs. The lug is secured directly onto the threaded stud, producing a firm electrical and mechanical connection that is particularly valuable in power circuits and equipment exposed to vibration or demanding service conditions.
The HD10/12.FF5 combines two M5 stud connections with a compact DIN rail housing, allowing a conductor to enter and leave the same potential through a secure feed-through arrangement. Its high current capability and substantial short-time withstand rating make it suitable for industrial and railway electrical systems where dependable power connections are essential.
| Manufacturer | TE Connectivity / Entrelec |
|---|---|
| Series | SNA HD |
| Model | HD10/12.FF5 |
| Part number | 1SNA295397R2600 |
| Product type | Stud feed-through terminal block |
| Function | Feed-through |
| Number of levels | 1 |
| Clamping positions per level | 2 |
| Connection type | Bolted stud |
| Stud configuration | 2 × M5 |
| Stud dimensions | M5 × 19.5 mm |
| Rated cross-section | 10 mm² |
| Connecting capacity | 0.5–10 mm² |
| Rated current | 57 A |
| Rated voltage | 750 V AC / 750 V DC |
| Rated short-time withstand current | 1,200 A for 1 s |
| Pitch | 12 mm |
| Tightening torque | 2.5 Nm |
| Housing material | Thermoplastic |
| Flammability rating | UL94 V-0 |
| Colour | Beige |
| Mounting | TH35-7.5 / TH35-15 DIN rail |
| Height | 50 mm |
| Width | 12 mm |
| Depth | 34.5 mm |
| Net weight | 11 g |
| Operating temperature | -55 to +110 °C |
| Storage temperature | -55 to +110 °C |
| Pack quantity | 50 |
| EAN | 3472592953977 |
It is a feed-through stud terminal block designed for secure cable-lug conductor connections in industrial, railway and electrical distribution systems.
The terminal block has two M5 × 19.5 mm stud connections, providing a robust bolted feed-through connection for compatible conductor lugs.
The HD10/12.FF5 has a rated current of 57 A and a rated cross-section of 10 mm².
The terminal block is rated at 750 V AC and 750 V DC for applicable industrial electrical circuits.
The terminal block mounts on compatible TH35-7.5 or TH35-15 DIN rail and has a 12 mm pitch for modular terminal assemblies.
TE Connectivity and Entrelec stud terminal blocks provide robust conductor termination for industrial, railway and power distribution systems where secure mechanical connections, high electrical performance and dependable long-term operation are essential.
