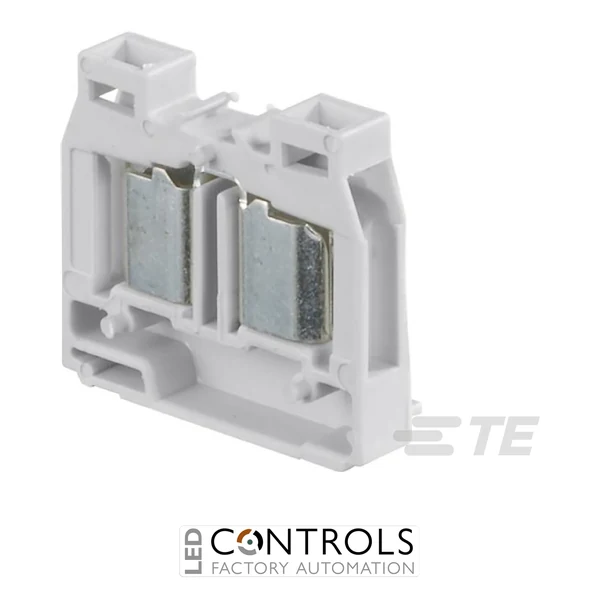

TE Connectivity DB1.5/6.ADO 1SNA299513R2600 is a grey 6 mm pitch feed-through mini terminal block with ADO System connection, rated at 17.5 A and 1000 V for compact industrial control and automation wiring.
£1.31
The TE Connectivity DB1.5/6.ADO 1SNA299513R2600 is a compact feed-through mini terminal block designed for reliable electrical connections in industrial control panels, machinery and automation systems. Part of the established Entrelec ADO System, it is specifically designed for applications where installation space is restricted while dependable, vibration-resistant connections remain essential.
The DB1.5/6.ADO features a 6 mm spacing, a 1.5 mm² rated cross-section and an IEC rated current of 17.5 A. Its ADO connection system supports up to two conductors per connection, providing a fast and reliable connection method for compact industrial control and wiring applications.
With an IEC rated voltage of 1000 V, an impulse withstand voltage of 8000 V and IP20 protection at the main terminals, the grey polyamide terminal block provides dependable electrical insulation and connection performance. Its compact 6 × 31 × 28 mm dimensions and flange-based mounting make it well suited to space-conscious industrial electrical assemblies.
The ADO System is designed to provide fast and reliable conductor connections for industrial applications where installation speed, connection consistency and resistance to demanding operating conditions are important. The DB1.5/6.ADO uses this technology in an especially compact format for applications where control-panel space is restricted.
Its 6 mm spacing, 17.5 A current rating and 1000 V rated voltage make the 1SNA299513R2600 a versatile choice for industrial control, automation and electrical distribution assemblies. The compact construction also helps panel builders achieve high wiring density without compromising the modular organisation of the installation.
| Manufacturer | TE Connectivity / Entrelec |
|---|---|
| Series | ADO System |
| Model | DB1.5/6.ADO |
| Manufacturer part number | 1SNA299513R2600 |
| Product type | Feed-through mini terminal block |
| Function | Miniblock |
| Number of levels | 1 |
| Spacing | 6 mm |
| Connection type | ADO System |
| Rated cross-section | 1.5 mm² |
| Rated current | 17.5 A |
| Rated short-time withstand current | 180 A for 1 s |
| Rated voltage | 1000 V |
| Maximum operating voltage UL/CSA | 600 V |
| Impulse withstand voltage | 8000 V |
| Dielectric test voltage | 3500 V |
| Pollution degree | 3 |
| Protection rating | IP20 |
| Insulation material | Polyamide |
| Flammability rating | UL 94 V-0 |
| ADO rigid conductor capacity | 0.28–1.5 mm² |
| ADO flexible conductor capacity | 0.34–1.5 mm² |
| UL/CSA conductor capacity | 22–16 AWG |
| Operating temperature | -55 to +110 °C |
| Mounting | Flange / direct mounting |
| Dimensions (W × H × D) | 6 × 31 × 28 mm |
| Colour | Grey |
| Weight | approx. 4 g |
| Pack quantity | 100 |
| EAN | 3472592995137 |
The DB1.5/6.ADO is a compact feed-through mini terminal block used to provide reliable electrical connections in industrial control panels, machinery and automation systems.
The terminal block has an IEC rated current of 17.5 A and a rated cross-section of 1.5 mm².
The DB1.5/6.ADO has an IEC rated voltage of 1000 V and an impulse withstand voltage of 8000 V.
The ADO connection accepts rigid conductors from 0.28–1.5 mm² and flexible conductors from 0.34–1.5 mm².
The DB1.5/6.ADO has a compact 6 mm terminal spacing, making it suitable for high-density industrial control and automation panels.
TE Connectivity and Entrelec ADO terminal blocks provide panel builders, machine manufacturers and automation engineers with compact, reliable connection solutions for organised industrial control, automation and electrical distribution systems.
